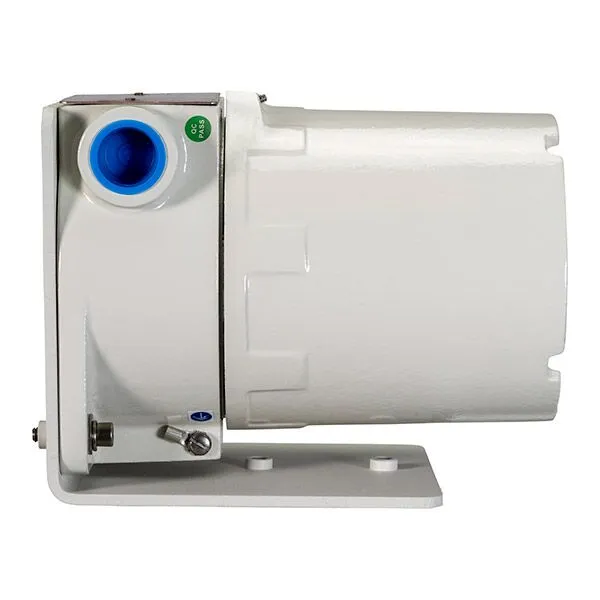

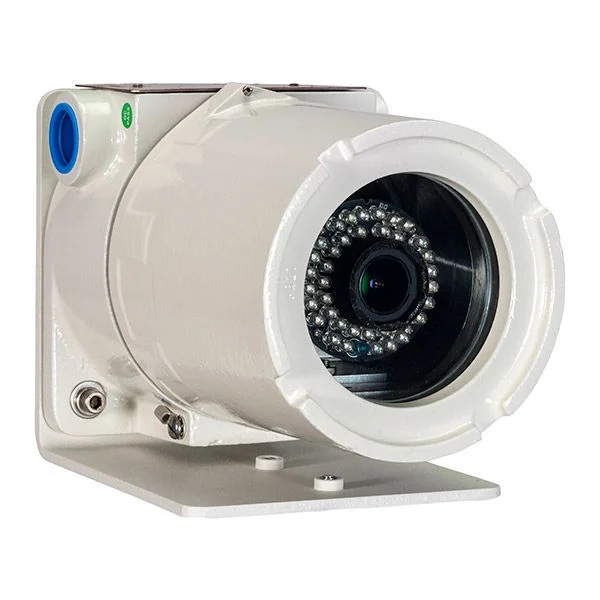

IVC AMZ-HD41-3 Explosion Proof CCTV Camera

SKU: N/A

The rugged camera is protected by a cast-aluminum shell, making it highly resistant to harsh conditions and approved for use in hazardous areas. The camera operates via an IP connection and is ready for easy installation, requiring only power and an internet connection. A wall mount arm is included, and additional mounting solutions are available.

Please note that stainless steel versions are no longer available.

Hazardous Area Rating

$3,89350

Price Depends on product option
Make a selection to update price

Shipping Time: 4 weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: , Brand:

IVC AMZ-HD41-3 Explosion-Proof CCTV Camera

The IVC AMZ-HD41-3 is a high-definition explosion-proof PTZ CCTV camera designed for hazardous industrial environments. Built with a rugged IP68-rated stainless steel enclosure, it withstands extreme temperatures, dust, moisture, and corrosive conditions, ensuring long-lasting durability.

With Full HD 1080p resolution and 360° PTZ functionality, the AMZ-HD41-3 delivers crystal-clear video monitoring with precise control for comprehensive site coverage. Certified for Class I, Division 1 & 2 hazardous areas, it is the ideal solution for oil refineries, offshore platforms, chemical plants, and explosion-sensitive locations.

Key Features

Explosion-Proof Certified: Fully compliant with Class I, Division 1 & 2 safety standards.
Full HD 1080p Video: Delivers high-resolution imaging for enhanced surveillance.
360° PTZ Functionality: Offers continuous pan, tilt, and zoom for wide-area coverage.
IP68-Rated Protection: Completely dust-tight & water-resistant, built for harsh industrial conditions.
Rugged Stainless Steel Housing: Built with marine-grade stainless steel for maximum corrosion resistance.
Wide Temperature Range: Operates reliably in -40°C to +60°C, suitable for extreme environments.
Day/Night Vision: Infrared (IR) capabilities provide clear monitoring in low-light conditions.
Flexible Installation: Compatible with various mounting options for different industrial applications.

Specifications

SpecificationInformation
Imager:Sony 1/2.8” 3.23 MP Progressive Scan CMOS
Resolution:2048 x 1536
Shutter:1 to 1/10,000 Seconds
Minimum Illumination:Color 0.15 lux BW 0.09 lux
WDR:Digital WDR (ATR-EX)
Image Features:Auto Exposure, Auto White Balance, Auto and Manual Iris, Back Light Compensation
Focus:Auto
Zoom Ratio:4x
View Angle:H103° x V74.4° ~ H30.8° x V23.3°
Focal Length:2.8 – 12mm
F-number:1.4 ± 5%
Network:10/100 BASE-T (RJ-45)
Frame Rate:30 FPS
Compression:H.264, MJPEG
Protocols:TCP/IP, HTTP, FTP, SMTP
Weight:8.1 lbs. (Aluminum Enclosure)
10.2 lbs. (Stainless Steel Enclosure)
Voltage Required:(See ordering information)
Power Consumption:1.2A @12 VDC
0.3A @ 48 VDC
(PoE)
Operating Temperature:-29° to 60° C
-10° to 60° C (PoE version)
Storage Temperature:-35° to 65° C
Dimensions:5.50” H x 5.50” W x 7.75” D (Aluminum)
5.50” H x 5.50” W x 8” D (Stainless Steel)
Mount:Wall Mount Standard
Protection Class:NEMA Type 4x, IP66
Regulatory Approvals:
Safety:Conforms to UL STD 61010-1 + UL1203
Certified to CSA STD CSA22.2 NO.30 + CAN/CSA C22.2 No. 25
EN 60079-0:2012+A11:203, EN 60079-1:2007, EN 60079-31:2014.
ATEX 2014/34/EU.
Hazardous Area:Class I, Division 1, Groups B-D,
Class II, Division 1, Groups E-G,
II 2 GD Ex db IIC T6 Gb,
II 2 GD Ex tb IIC T80°C Db IP66

📌 For a full list of specifications, see the AMZ-HD41-3 Datasheet.

Resources & Certifications:

📄 Certificate
📑Electrical Safety Certificate
📑Atex Certificate
📑Iecex Certificate

Applications

🔹 Oil & Gas Facilities – Monitoring of pipelines, drilling sites, and refineries.
🔹 Chemical Processing Plants – Surveillance in hazardous material production & storage areas.
🔹 Offshore & Marine Environments – Ideal for ship decks, offshore platforms, and coastal sites.
🔹 Power Plants & Utilities – Critical monitoring of industrial power stations & substations.
🔹 Industrial Manufacturing – Securing high-risk areas in factories and warehouses.

What’s in the Box?

📦 Package Includes:

  • 1x IVC AMZ-HD41-3 Explosion-Proof CCTV Camera
  • 1x PTZ Control System
  • 1x Mounting Bracket & Hardware
  • 1x Power Supply & Connection Cables
  • 1x User Manual & Safety Guide

Ordering & Shipping Details

📦 Lead Time: 4 weeks
📍 Shipping Terms: EXW/CPT
💳 Payment Terms: T/T in advance, net terms available.

💡 Need expert advice? Contact our hazardous area specialists for personalized guidance on selecting the right CCTV camera for your environment.

🔹 💰 Best Price Guarantee! We match or beat competitor prices – order today for maximum safety and security!

More Options for You:

📌 IVC AMZ-3041-2 X-Series Explosion Proof CCTV Camera
