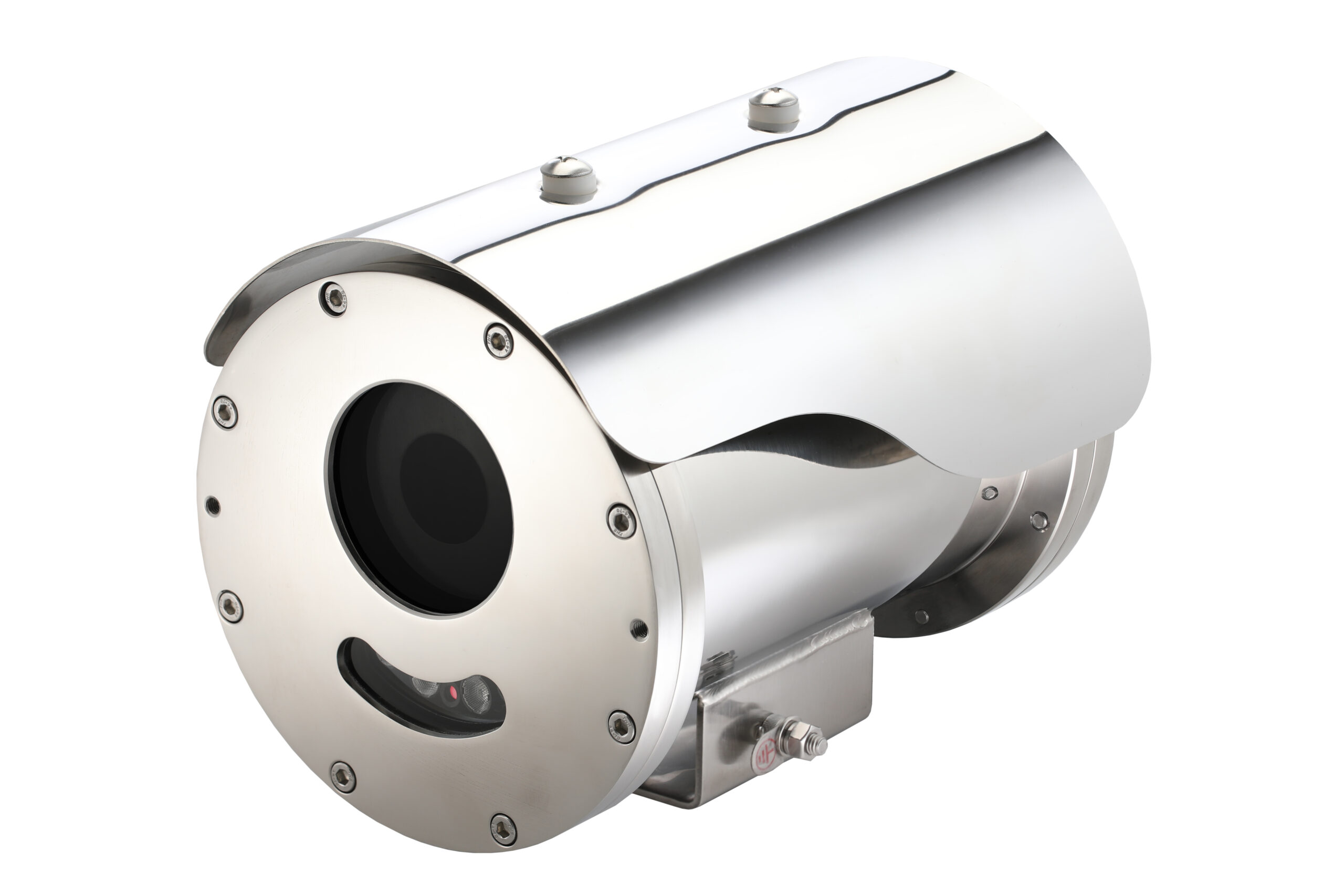

IVC AZO-HD47-2 Explosion-Proof IP Camera

The IVC AZO-HD47-2 is a 4K explosion-proof network camera engineered for critical visual monitoring in Class I Division 1 hazardous locations. Housed in a corrosion-resistant stainless-steel enclosure, it is ideal for combustible environments across oil & gas, chemical plants, and process facilities.

This IP camera delivers ultra-sharp video with a 20x optical zoom and 4K Exmor R CMOS sensor. Designed for low-light performance, it automatically switches to black and white and removes the IR filter to enhance visibility. Compatible with IVC’s click-to-point and preset software, the AZO-HD47-2 offers global remote access and seamless integration into industrial networks.

Key Features:

✅ Class I Division 1 certified for Groups B, C, D, T6
✅ 4K Exmor R CMOS sensor with 20x optical zoom
✅ NEMA 4X stainless-steel enclosure for extreme environments
✅ IP-ready with PoE and 110 VAC power options
✅ Supports HTTP, RTSP, ONVIF protocols for flexible integration
✅ H.264 / MJPEG compression up to 30 FPS
✅ Auto IR-cut filter for superior low-light operation
✅ Ruggedized housing with sunshield, pole, and corner mount options

📦 Package Options:

🔹 AZO-HD47-2-V: 4K 20x Zoom with PoE or 110 VAC power input
🔹 Accessories: Sunshield (SS-1013), Pole Mount (MB-147-1), Corner Mount (MB-147-2), PoE Injector (POE-102-I)

IVC AZO-HD47-2 Technical Specifications:

[table id=1592 /]

Certifications & Compliance:

🔗 Class I Division 1 – For use in explosive gas atmospheres (Groups B, C, D, T6)
🔗 NEMA 4X – Protection against corrosion, windblown dust, and rain
🔗 IP Network Ready – Supports multiple protocols and PoE
🔗 Download Datasheet

Applications of IVC AZO-HD47-2 Explosion-Proof IP Camera:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x IVC AZO-HD47-2 Camera
📦 1x Wall Mount
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 3–4 weeks typical
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

FAQs:

What environments is this camera rated for?
This camera is certified for Class I Division 1 Groups B, C, D hazardous areas and operates in -20°C to 60°C environments.

Can it be powered via PoE?
Yes, the AZO-HD47-2 supports IEEE 802.3af PoE as well as 110 VAC input.

Does it support remote viewing?
Yes, it integrates with IVC’s camera management software, enabling control and streaming from anywhere.

Is the zoom adjustable?
Yes, it features a 20x optical zoom lens with click-to-point precision control.
