Description

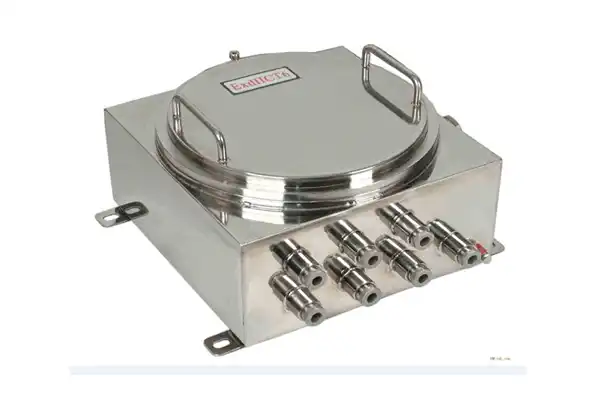

KX-EX10CB444 Explosion Proof Junction Box (SS304 / SS316L)
The KX-EX10CB444 Explosion Proof Junction Box is engineered for safe electrical connections in hazardous areas where explosive gases and combustible dust are present. Built with high-grade stainless steel, this ATEX-certified enclosure ensures maximum protection, durability, and compliance in demanding industrial environments such as oil & gas, offshore platforms, and chemical processing facilities.
Designed for reliability in harsh field conditions, this junction box offers excellent corrosion resistance, waterproof sealing, and explosion-proof performance. The SS304 version is ideal for standard industrial use, while the SS316L version is specifically designed for highly corrosive environments such as marine, offshore, and chemical exposure. With multiple cable entries and robust sealing, it guarantees safe and efficient cable management in critical operations.
Key Features:
✅ ATEX Certified – II 2G Ex d IIC T6 Gb / II 2D Ex tb IIIC IP68 T80℃ Db
✅ Wide Temperature Range: -40°C to +60°C
✅ IP66 / IP68 Protection – Dust-tight and water-resistant enclosure
✅ Multiple Cable Entries – 4 x M25*1.5 (G3/4) with optional M20
✅ Stainless Steel Construction – SS304 standard, SS316L for corrosive environments
✅ Anti-Corrosion & Waterproof Design – Built for harsh industrial conditions
✅ High Mechanical Strength – Suitable for heavy-duty industrial applications
✅ Flexible Sizing – Internal and external dimensions can be customized (OEM)
📦 Package Options:
🔹 SS304 Version (KX-EX10CB444): Standard stainless steel for industrial environments
🔹 SS316L Version (KX-EX10CB444-316L): Enhanced corrosion resistance for offshore and marine applications
🔹 Custom Configurations: Optional cable entries and OEM sizing available
🔹 Accessories Available: Explosion-proof pipes and cable connection boxes
KX-EX10CB444 Explosion Proof Junction Box Technical Specifications:
| Feature | Details |
|---|---|
| Model | KX-EX10CB444 (SS304) / KX-EX10CB444-316L (SS316L) |
| Certification | ATEX II 2G Ex d IIC T6 Gb / II 2D Ex tb IIIC IP68 T80℃ Db |
| Protection Rating | IP66 / IP68 |
| Material | SS304 (standard) / SS316L (corrosion-resistant) |
| Temperature Range | -40°C to +60°C |
| Relative Humidity | ≤95% (+25°C) |
| Atmospheric Pressure | 80 kPa – 106 kPa |
| Cable Entries | 4 x M251.5 (G3/4), optional M201.5 |
| Dimensions | 400 x 400 x 150 mm |
| Environment | Explosive gas and combustible dust environments |
| Application | Oil & gas, offshore, chemical, mining, industrial |
| Customization | OEM internal/external sizes available |
Certifications & Compliance:
🔗 ATEX II 2G Ex d IIC T6 Gb – Suitable for explosive gas environments
🔗 ATEX II 2D Ex tb IIIC IP68 T80℃ Db – Certified for combustible dust areas
🔗 IP66 / IP68 Rating – Protection against dust and water ingress
🔗 Temperature Range Compliance – Operates from -40°C to +60°C
🔗 Download Datasheet
Applications of KX-EX10CB444:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Offshore & Marine
🔹 Manufacturing
What’s in the Box?
📦 1x Explosion Proof Junction Box
📦 1x Mounting Hardware Kit
📦 1x Cable Entry Set (pre-installed)
📦 1x Sealing Components
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2-3 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What is the difference between SS304 and SS316L?
SS304 is suitable for most industrial environments, while SS316L provides superior corrosion resistance for offshore and chemical applications.
Is this junction box suitable for Zone 1 areas?
Yes, it is ATEX certified for Zone 1 gas and Zone 21/22 dust hazardous environments.
Can the cable entries be customized?
Yes, optional M20 entries and OEM configurations are available.
Is this product waterproof?
Yes, it offers IP66/IP68 protection against water and dust ingress.
