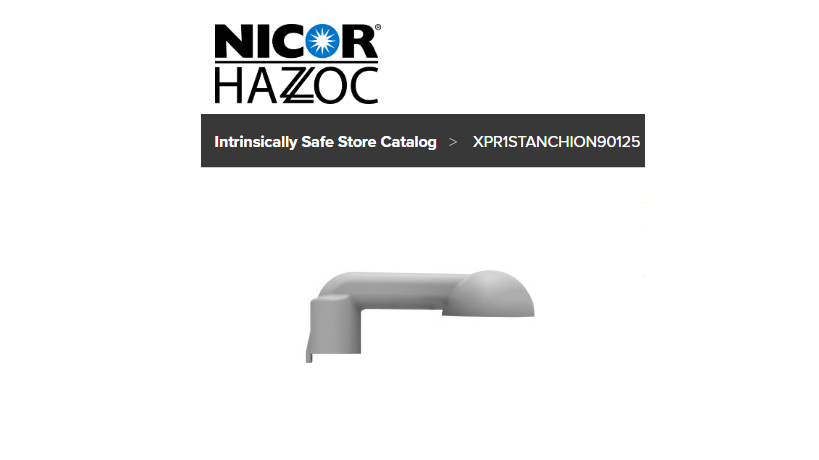

XPR1 Stanchion 90° Mounting Arm

The XPR1 Stanchion 90° Mount is a precision-engineered structural component designed to support high-performance LED luminaires in hazardous locations. Built to withstand the vibration, moisture, and corrosive elements found in offshore rigs and refineries, this mount ensures your critical lighting infrastructure remains stable and compliant in C1D1/C1D2 and Zone 1/21 environments.

Featuring a 90-degree angled neck with a 10.0-inch (255mm) horizontal reach, this stanchion allows for optimal light distribution over walkways and platforms. The rugged construction facilitates easy internal wiring through the stanchion arm, protecting electrical connections from the environment while maintaining the "Explosion-Proof" integrity of the lighting system.

Key Features:

✅ Class I, Division 1 & 2 / Zone 1 & 21 Compatibility
✅ Heavy-duty cast aluminum construction with corrosion-resistant finish
✅ 90° angled design for stanchion-pole mounting
✅ 10.0 in (255mm) horizontal extension for cleared light spread
✅ Integrated internal wireway for hazardous area cable management
✅ High vibration resistance for industrial and maritime use
✅ Compatible with XPR Series High-Bay and Floodlight luminaires
✅ IP66/67 Rated for extreme weather protection
✅ Easy-bolt installation for reduced downtime during maintenance

📦 Package Options:

🔹 Standard Stanchion: 90-degree 1.25" NPT compatible mount
🔹 Marine Grade: Specialized coating for high-salinity offshore environments
🔹 Kit Option: Includes mounting hardware and gasket sets
🔹 Custom Lengths: Available upon request for specific infrastructure needs

XPR1 Stanchion 90 Technical Specifications:

[table id=1836 /]

Certifications & Compliance:

🔗 UL 844 – Luminaires for Hazardous Locations
🔗 CSA C22.2 – Safety standards for industrial equipment
🔗 NEMA 4X – Protection against windblown dust, rain, and hose-directed water
🔗 IP66/67 – Complete protection against dust and powerful water jets
🔗 Installation Instructions

Applications of XPR1 Stanchion 90:

🔹 Oil & Gas (Offshore Rigs & Refineries)
🔹 Chemical Plants
🔹 Mining & Grain Elevators
🔹 Water Treatment Facilities
🔹 Heavy Manufacturing

What’s in the Box?

📦 1x XPR1 90° Stanchion Mount
📦 1x Sealing Gasket Kit
📦 1x Mounting Hardware Set
📦 1x Installation Manual

Ordering & Shipping Details

📦 Lead Time: 1-2 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 XPR Series LED Explosion Proof High Bay
🔗 XPR Ceiling Mount Bracket
🔗 XPR Pole Mount Adapter

FAQs:

Is this mount compatible with non-XPR brand lights?
While designed for the XPR series, it utilizes standard NPT threading; however, certification is only guaranteed when used with the approved luminaire assembly.

What material is used for the stanchion?
It is constructed from copper-free cast aluminum with a powder-coated finish for maximum corrosion resistance.

Does it include the pole?
No, this is the 90-degree mounting arm that attaches to a customer-supplied stanchion pole.

Can this be used in Saltwater environments?
Yes, when ordered with the optional Marine-Grade protective coating.
