UPR-03-M Universal Power Rail

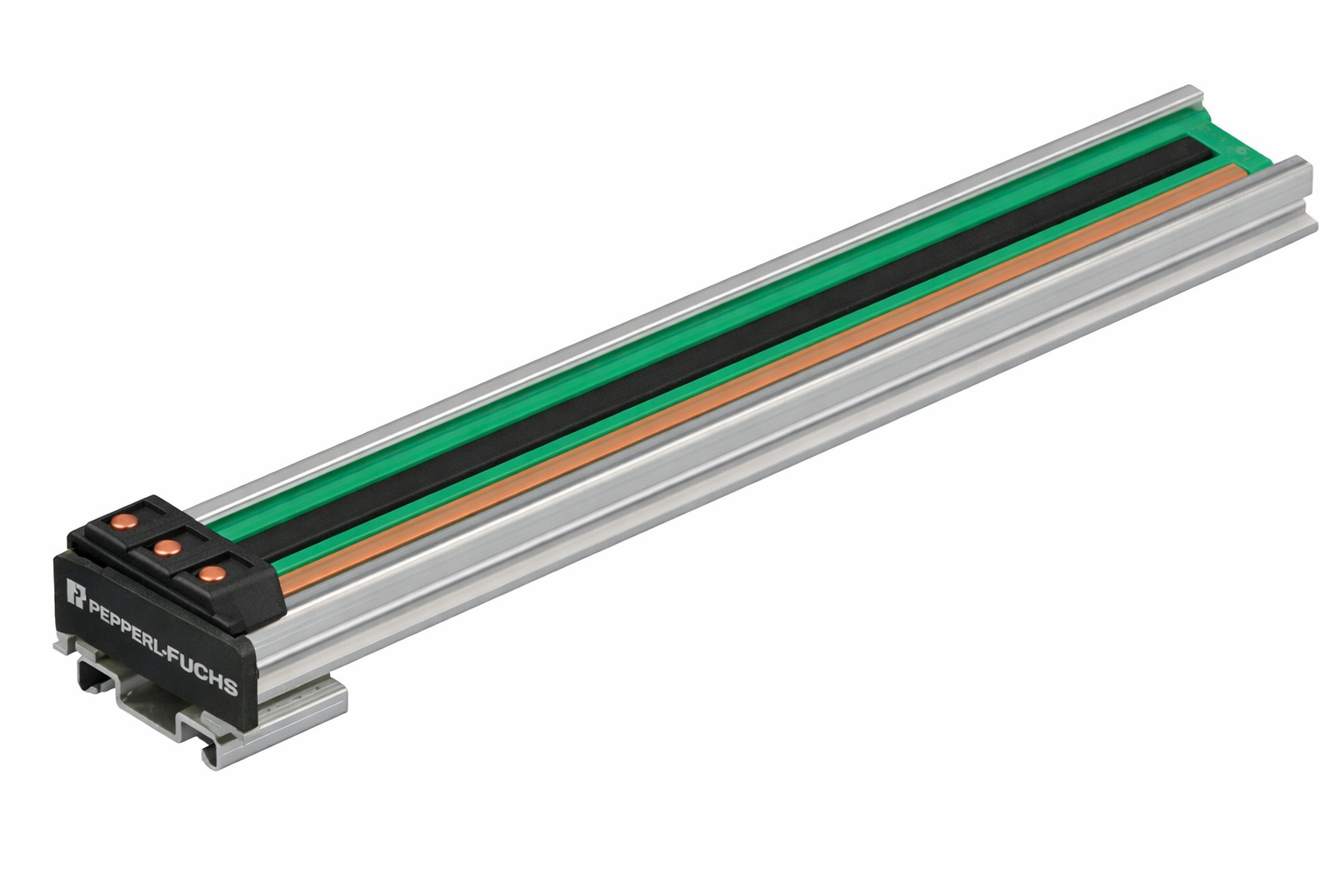

The UPR-03-M is a high-performance Universal Power Rail designed to provide a centralized DC supply voltage to all equipped K-System modules. This integrated solution combines a rugged DIN mounting rail (UPR-MR) with a 3-conductor insert (UPR-INS-03), ensuring seamless power distribution and status monitoring in demanding industrial environments.
Engineered for efficiency in the field, the Power Rail eliminates the need for tedious daisy-chain wiring, significantly reducing maintenance costs and installation time. When used in conjunction with K-System modules, this component is certified for mounting in Zone 2 hazardous locations, making it an essential backbone for safety-critical infrastructure.
Key Features:
✅ Zone 2 Hazardous Area Compatibility (with K-System modules)
✅ 24 V DC Rated Supply Voltage
✅ 4 A Rated Current Capacity
✅ Integrated 3-Conductor System (2 for power, 1 for error messaging)
✅ Standard 1.6-meter (5-foot) Length, easily customizable to fit any cabinet
✅ Eliminates Daisy-Chain Wiring for cleaner installations
✅ Snap-in Expansion for effortless system scaling
✅ Includes UPR-E End Caps and UPR-COVER for enhanced protection
✅ Operates in extreme temperatures from -40 °C to 70 °C
📦 Package Options:
🔹 Standard Unit: Includes 1.6m DIN Rail, Insert, Cover, and End Caps
🔹 Modular Components: All parts (Rail, Insert, Caps) can be ordered separately for custom repairs
UPR-03-M Technical Specifications:
| Feature | Details |
|---|---|
| Product Model | UPR-03-M |
| Rail Type | 35 mm DIN Mounting Rail with 3-conductor insert |
| Rated Voltage | 24 V DC |
| Rated Current | 4 A |
| Conductor Configuration | 2 for power supply, 1 for collective error message |
| Dimensions | 35 x 15 x 1600 mm (1.4 x 0.6 x 63 inches) |
| Operating Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Hazardous Area Rating | Zone 2 (In conjunction with K-System modules) |
| Components Included | UPR-MR rail, UPR-INS-03 insert, UPR-COVER, UPR-E end caps |
Certifications & Compliance:
🔗 UL Certificate Class I, Div. 2 Groups A, B, C, and D.
🔗 DIN 125 Compliant – Mounting hardware compatibility for M4 screws
🔗 Wide Temp Durability – Tested for -40 °C to 70 °C (-40 °F to 158 °F)
🔗 Ingress Protection – Includes UPR-COVER to prevent pollution and contact with conductive parts
