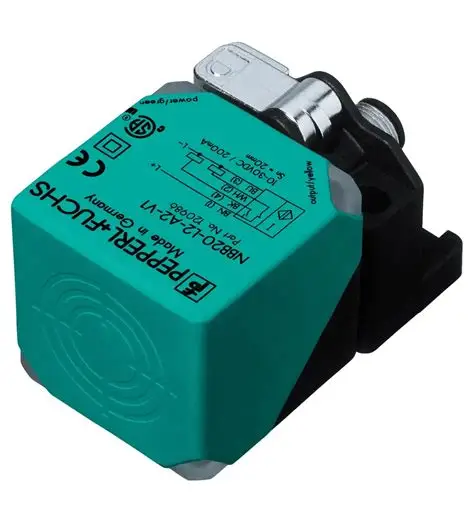

Pepperl+Fuchs NBB20-L2-A2-V1 Inductive Sensor

The Pepperl+Fuchs NBB20-L2-A2-V1 is a premium industrial inductive proximity sensor engineered to provide highly precise, non-contact position detection in rugged automated environments. Designed for reliable performance in demanding industrial facilities and heavy machinery applications, this sensor brings unmatched stability and longevity where standard sensors fail.

Featuring a unique bidirectional and rotatable sensor head, the NBB20-L2-A2-V1 allows for flexible field adjustment and seamless mounting. Its integrated 4-LED indicator provides 360° visibility for effortless status monitoring in low-light or hard-to-reach industrial areas, ensuring rapid maintenance and maximum field uptime.

Key Features:

✅ cULus Listed & UKCA Certified for industrial application compliance
✅ High-reliability 4-wire DC output type (PNP, complementary)
✅ Heavy-duty IP68 / IP69K Ingress Protection rating
✅ Standard M12 x 1 quick disconnect plug connection
✅ Dual-color status tracking (Green LED for operating voltage, Yellow LED for switching state)
✅ Short-circuit (pulsing) and reverse polarity protection built-in
✅ Extended temperature flexibility from -25 to 85°C (-13 to 185°F)
✅ Formidable 20 mm flush-rated operating distance
✅ Lightweight, resilient PA (Polyamide) housing and sensing face with quick mounting bracket



Pepperl+Fuchs NBB20-L2-A2-V1 Technical Specifications:

Feature	Details
Manufacturer	Pepperl+Fuchs
Model	NBB20-L2-A2-V1
Sensing Distance (Sn)	20 mm (Flush installation)
Output Type	PNP, 4-wire, complementary
Operating Voltage	10 ... 30 V DC
Switching Frequency	0 ... 440 Hz
Operating Current	0 ... 200 mA
Indicators	Green LED (Operating voltage) Yellow LED (Switching state)
Ingress Protection Rating	IP68 / IP69K
Housing & Sensing Face Material	PA (Polyamide)
Connection Type	M12 x 1 Connector plug, 4-pin
Ambient Temperature Range	-25 ... 85 °C (-13 ... 185 °F)
Approvals & Certificates	cULus Listed, UKCA, CE EN IEC 60947-5-2
Dimensions	40 mm x 40 mm x 67 mm
Mass	155 g

Certifications & Compliance:

🔗 cULus Listed – Certified for general-purposeelectrical safety and Class 2 power supply systems
🔗 UKCA / CE – Compliant with European and United Kingdom safety standards
🔗 EN IEC 60947-5-2 – Full conformity with international low-voltage switchgear/controlgear standards
🔗 IP68/IP69K Ingress Protection – Protection dust ingress and high-pressure/steam jet washdowns
🔗 Download Datasheet

Applications of NBB20-L2-A2-V1:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x Pepperl+Fuchs NBB20-L2-A2-V1 Sensor
📦 1x Quick Mounting Bracket
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 1- 2 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms



FAQs:

What is the maximum sensing distance of this sensor?
The Pepperl+Fuchs NBB20-L2-A2-V1 has a rated operating distance of 20 mm with a flush installation setup.

What do the different integrated LEDs indicate?
The sensor includes a green LED to signify the operating voltage indicator and a yellow LED to display the real-time switching state.

Can this device withstand high-pressure washdowns?
Yes, it features an ultra-rugged IP68/IP69K rating, making it entirely dust-tight and resistant to high-pressure, high-temperature washdowns.

What is the housing material of this sensor?
Both the main body housing and the sensing face are constructed from highly durable PA (Polyamide) material.
