The Pepperl+Fuchs PSE4-SL-01 is a safety thru-beam sensor engineered for integration into PSE4 series safety edges, delivering reliable optical detection up to 10 meters for hazardous and industrial applications. Featuring an IP68-rated, fully encapsulated design certified up to SIL 3 / PL e (Cat. 4) compliance, it offers rugged protection and seamless functional safety across demanding field environments.
| Country of Origin | Germany (DE) |
| Certifications | TÜV Rheinland (968/M 301.00/11) cULus Listed (File NRNT.E344450) |
The Pepperl+Fuchs PSE4-SL-01 is a high-performance safety thru-beam sensor designed as a core component of the modular PSE4 safety edge system. Engineered for critical safety applications in industrial and hazardous environments, this optical sensor pair provides continuous monitoring along protective edges, automatically detecting obstacles and interrupting movement to protect personnel and machinery.
Featuring an IP68 fully encapsulated housing, the PSE4-SL-01 provides extreme resistance against harsh field conditions, including moisture, water, and dust ingress. Operating on a dynamic modulated infrared light principle with evaluation via the PSE4-SC-01 safety control unit, the sensor achieves functional safety performance up to Performance Level e (PL e, Cat. 4) according to ISO 13849-1, ensuring seamless integration without requiring additional mounting materials.
✅ ISO 13849-1 Performance Level e (PL e), Category 4 Safety Compliance
✅ Modulated Infrared Light (0.4 m to 10 m detection range)
✅ IP68 Ingress Protection Rating for harsh environments
✅ Dynamic self-monitoring optical connection evaluated via PSE4-SC-01 control unit
✅ Modulated infrared transmission (1 kHz / 38 kHz signal coupling)
✅ High mechanical durability with up to 500 N force capability
✅ Operating temperature range from 5°C to 55°C (41°F to 131°F)
✅ Tool-less installation designed directly into PSE4-RUB and PSE4-ROI sensor strips
✅ Polyethylene (PE) housing with PUR fixed cable (10 m emitter / 2.9 m receiver)

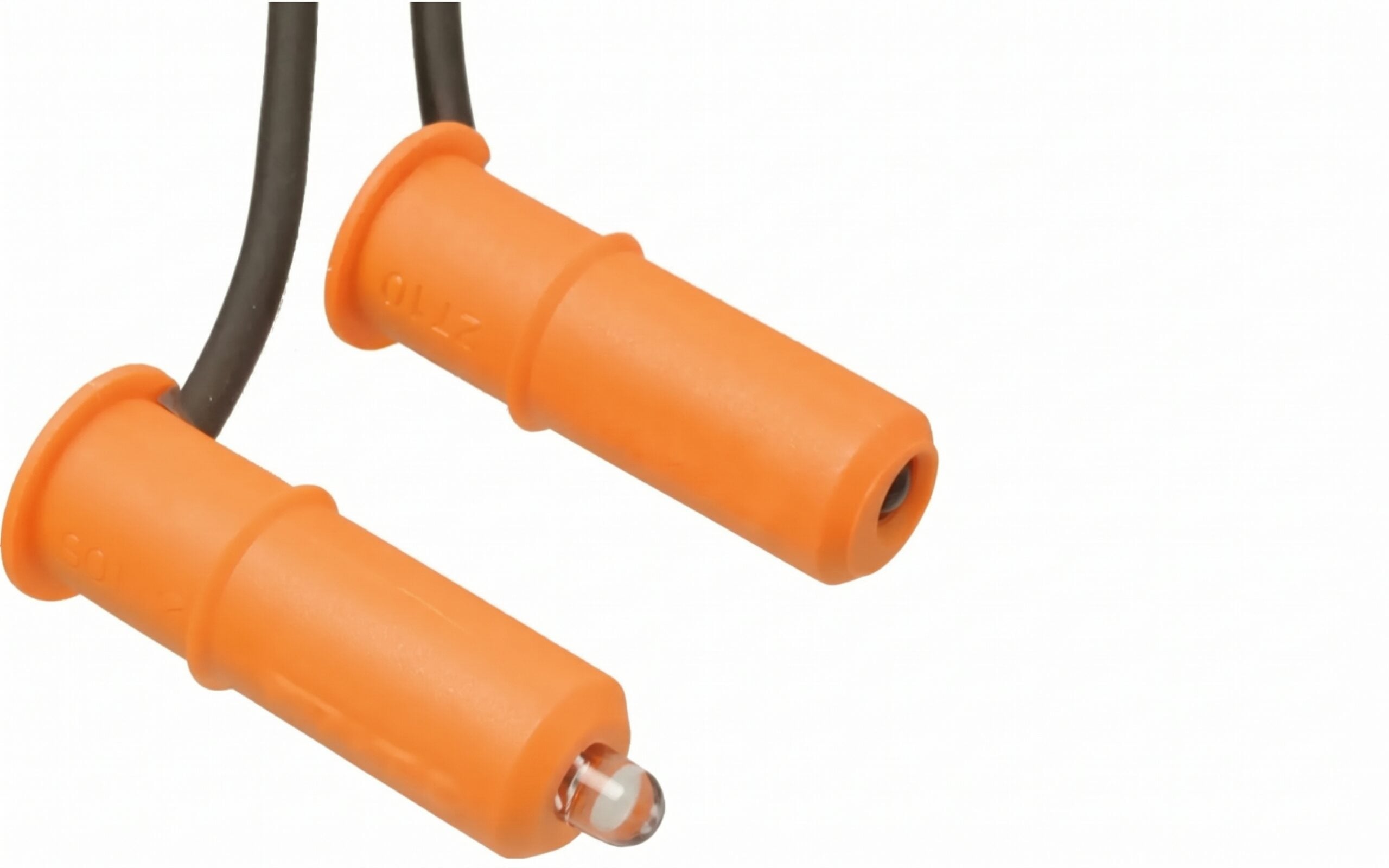

🔹 PSE4-SL-01 Sensor Set: Emitter and Receiver safety through-beam sensors
| Feature | Details |
|---|---|
| Product Model | Pepperl+Fuchs PSE4-SL-01 |
| Sensor Type | Safety thru-beam sensor |
| Effective Detection Range | 0.4 m to 10 m |
| Light Type | Modulated infrared light |
| Functional Safety Rating | Performance Level e (PL e) Category 4 (ISO 13849-1) |
| Mission Time (TM) | 20 years |
| Operating Voltage | Power supply via control unit (PSE4-SC-01) |
| Degree of Protection | IP68 |
| Ambient Temperature | 5 °C to 55 °C (41 °F to 131 °F) |
| Mechanical Capacity | 500 N |
| Housing Material | Polyethylene (PE) |
| Cable Type & Length | PUR fixed cable; Emitter: 10 m, Receiver: 2.9 m |
| Dimensions | Length: 37 mm, Diameter: 11 mm (11.5 mm flange) |
| Mass | Approx. 150 g per set |
| Approvals | TÜV Rheinland (968/M 301.00/11) cULus Listed (File NRNT.E344450) |
🔗 ISO 13849-1 / Cat. 4 PL e – Functional safety standard for machine safety control systems
🔗 TÜV Rheinland Approved – Certified safety component (Certificate 968/M 301.00/11)
🔗 cULus Listed – File no. NRNT.E344450 for North American safety compliance
🔗 IP68 Rated – Maximum ingress protection against continuous water immersion and dust
🔗 Download Datasheet
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
📦 1x PSE4-SL Emitter Sensor (with 10m fixed PUR cable)
📦 1x PSE4-SL Receiver Sensor (with 2.9m fixed PUR cable)
📦 1x Installation & Documentation Guide
📦 Lead Time: 3 - 4 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
🔗 Pepperl+Fuchs PSE4-SC-01 Safety Control Unit
🔗 Pepperl+Fuchs PSE4-RUB-30EPDM58 Rubber Profile
🔗 Pepperl+Fuchs PSE4-ALU Aluminum Mounting Rail
What safety rating does the PSE4-SL-01 system achieve?
When paired with the PSE4-SC-01 safety control unit, the system achieves Performance Level e (PL e), Category 4 in accordance with ISO 13849-1.
Is the PSE4-SL-01 waterproof?
Yes, the electronics are fully encapsulated within the housing, providing an IP68 degree of protection against dust and water immersion.
What is the effective detection range of the sensor?
The PSE4-SL-01 sensor pair has an effective detection range from 0.4 meters to 10 meters.
How is the sensor mounted?
The sensor units slide directly into the hollow chambers of the PSE4-RUB or PSE4-ROI rubber profiles without requiring additional mounting hardware.
