Home » Intrinsically Safe Products » Pressurized Explosion-protected (Analysis) Cabin Model Warom PXB Series

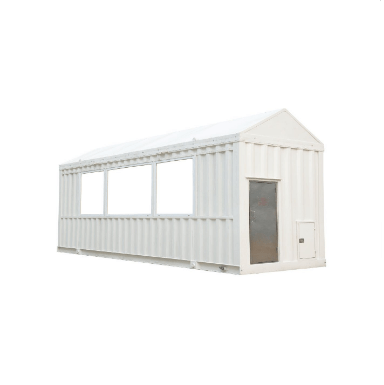

Pressurized Explosion-protected (Analysis) Cabin Model Warom PXB Main Image

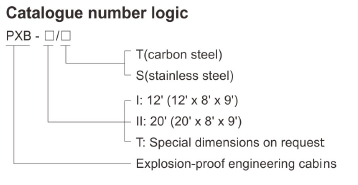

Pressurized Explosion-protected (Analysis) Cabin Model Warom PXB Catalogue number logic

Pressurized Explosion-protected (Analysis) Cabin Model Warom PXB Series

SKU: PXB
Q&AsWrite A Review
  • Explosion Protection to  EN, IEC
  • Can be used in Zone 1,2,21,22
  • Enclosure in carbon steel or stainless steel
  • The explosion-proof control box is the standard control box or PLC programmed control box. Combustible gas detectors and toxic gas detectors are modularly designed. The thermal detector, smoking detector, and pressure transmitter are intrinsic safety explosion-proof components. The power of the explosion-proof centrifugal fan is subject to room size. The type of explosion-proof air conditioner is subject to the room size. With audio and visual alarm interlock system. The illumination system is an explosion-proof fluorescent lamp. The light source of the explosion-proof emergency lamp is LED.

$5250

This product is currently not available. Click the button below to speak to an expert.

GET HELP NOW
Similar Category:

Found It Cheaper?

We Match It!
Price Match Guarantee

Need Help?

Speak with a Hazardous Area expert now
832 699 6726 Chat with us

Pressurized Explosion-protected (Analysis) Cabin Model Warom PXB Series



SPECIFICATION:

Global (IECEx) IECEx CQM 14.0009X
Gas and dust Ex px ⅡB T4 Gb
Ex px ⅢC T130℃ Db
Europe (ATEX) ATEX (applied for)
Gas and dust  Ⅱ 2 G Ex px ⅡB T4 Gb

 Ⅱ 2 D Ex px ⅢC T130℃ Db
Certificates IECEx; ATEX
Conformity to standards EN; IEC



DATA:

Normal operating pressure 50Pa~100Pa(0.0005bar~0.001bar)
Air pressure 0.4MPa~0.8MPa(4bar~8bar)
Rated voltage of user system 220V/380V/400V/440V/460V/660V/690V AC
Rated voltage of pressurized control system 220V/380V AC 50/60Hz
Rated current of pressurized control system 10A
Enclosure material Powder coated carbon steel or stainless steel
Degree of protection IP66
Ambient temperature  -20℃~+55℃



Pressurized Explosion-protected (Analysis) Cabin Model Warom PXB Series Certification:



Pressurized Explosion-protected (Analysis) Cabin Model Warom PXB Series Other Resources:
