Description

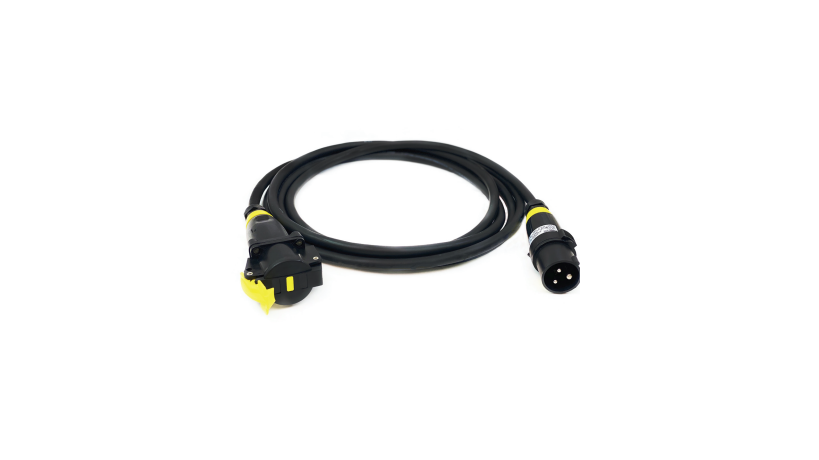

RAMFAN ECX ATEX/IECEx Power Extension Cable
The RAMFAN ECX Series Power Cords from Euramco Group are high-performance extension cables specifically engineered for hazardous locations and “Extra Hard Usage”[cite: 4, 5]. These cables are essential for safely extending the reach of explosion-proof blowers and industrial equipment in areas where flammable gases or dusts may be present[cite: 3, 17].
Built with highly flexible H07RN-F jackets, these cables remain easy to route even in extreme cold weather and offer superior resistance to mechanical impacts, abrasion, oils, and industrial chemicals[cite: 5, 6, 13]. Equipped with IP66-rated connectors made from industrial-grade polymers, the ECX series ensures a dust-tight and moisture-proof connection capable of withstanding powerful water jets and heavy seas[cite: 7, 8].
Key Features:
✅ ATEX & IECEx Certified for Zone 1 and Zone 21 hazardous areas [cite: 11, 88]
✅ Extra Hard Usage H07RN-F flexible cable construction [cite: 5]
✅ IP66 Ingress Protection for connectors (Dust-tight & Waterproof) [cite: 7, 8]
✅ Operating Temperature Range of -20°C to +40°C
✅ Resistant to oils, UV, and most industrial chemicals
✅ Flame-retardant and cold-resistant jacket for easy routing [cite: 6, 13]
✅ Available in multiple lengths (15m and 30m)
✅ Compatibility with ATX, CEAG, and STAHL 16A connectors
✅ High-impact industrial grade polymer connector housing
📦 Package Options:
🔹 110V Models: Available in 15m or 30m lengths with ATX, CEAG, or STAHL connectors
🔹 230V Models: Available in 15m or 30m lengths with ATX, CEAG, or STAHL connectors
RAMFAN ECX Technical Specifications:
| Feature | Details |
|---|---|
| Model Series | ECX |
| Cable Type | H07RN-F (Extra Hard Usage) +1 |
| Certifications | ATEX, IECEx, CE, VDE, RoHS +1 |
| Gas Protection | II 2 G Ex db eb IIC T6 Gb |
| Dust Protection | II 2 D Ex tb IIIC T80°C Db |
| Ingress Protection | IP66 (Connectors) |
| Operating Temp | -20°C to +40°C |
| Voltage Options | 110V / 230V +1 |
| Connector Types | ATX, CEAG, or STAHL (16A) |
| Standard Lengths | 15 meters (approx. 50ft) / 30 meters (approx. 100ft) |
| Color | Black jacket |
| Characteristics | Flame-retardant, UV-resistant, Oil-resistant, Water-resistant |
Certifications & Compliance:
🔗 ATEX Certification – II 2 G Ex db eb IIC T6 Gb / II 2 D Ex tb IIIC T80°C Db
🔗 IECEx_UL –
🔗 Declaration-of-Conformity-Cables
🔗 Ingress Protection – IP66 (Connectors) / IP55 (Overall Certified Marking) [cite: 7, 130]
🔗Download Datasheet
Applications of RAMFAN ECX:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x RAMFAN ECX Extension Cord
📦 1x Pre-installed Male Connector
📦 1x Pre-installed Female Connector
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2 months
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 RAMFAN UB20xx ATEX Blower
🔗 RAMFAN EFI150xx Hazardous Location Fan
🔗 ATX/CEAG Replacement Connectors
FAQs:
What is the maximum recommended cable length?
Maximum length varies by fan model; for example, the UB20xx supports up to 50m (164ft) at both 110V and 230V[cite: 15].
Are these cables resistant to chemicals?
Yes, the H07RN-F cables are extremely high on impact, cutting, and abrasion resistance, as well as resistance to oils and most industrial chemicals.
What does the IP66 rating signify?
It means the connectors are totally sealed against dust and moisture ingress, and protected against powerful jets of water or heavy seas[cite: 8].
Can these be used in freezing environments?
Yes, the flexible jackets allow for easy installation and routing even in extreme cold weather conditions, with an operating range down to -20°C[cite: 6, 13].
