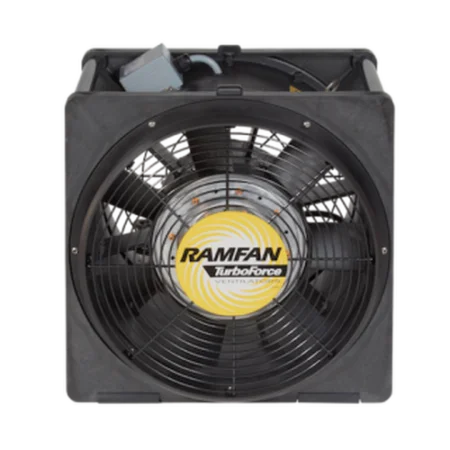

RamFan EFi120xx – 16″ Explosion Proof Fan
Introducing RamFan EFi120xx – 16″ Explosion Proof Fan – hazardous location blowers/exhausters represent cutting-edge electric-powered equipment designed for operation in Adverse Atmospheres, adhering to specified ratings and limitations. Distinguished by their whole-unit certification, these blowers offer users not only protection and peace of mind but also shield suppliers from potential liabilities in the supply chain.
Features:
- ATEX Zone 1
- IECEx
- Made in California, USA
- High-pressure axial blower
- Durable, PC/ABS Anti-static casing is weatherproof, flame retardant, and chemical resistant
- 2 Integrated duct adapters
- Motor part number: 1131007404
- 21 Blades
- IP55 rain switch enclosure
RamFan EFi120xx – Explosion Proof Fan
Specifications
Technical Data | ||
Part # | EA8120XX-110 | EA8120XX |
Ships as 110V | Ships as 240V | |
Motor | 1.2 Hp / 0.9 kW | |
Motor Type | Totally Encapsulated Air Flame Proof | |
Electric | 110/240V, 1ø, 50Hz | |
Amps (Start/Run) | 54A / 10A | 27A / 5A |
Cable Lengths | 25’/7.6m, 14AWG/2.5mm2 | |
Plug Types | A.T.X. 100/130V | A.T.X. 240V |
Operating Temperature | -22°F to +104°F / -30°C, to +40°C | |
Noise | 86.1 dB @ 3' (1 m) | |
Weight | 55 lbs / 25 kg | |
Dimensions (h/w/d) | 19 x 18 x16 in / 48 x 46 x 41 cm | |
Impeller | 7-Blade | |
Airflow | EFi120xx | |
Free Air | 3,750 cfm (6,375 m3/hr) | |
Through Duct 15’/4.6 m w/ one 90° turn: | 2,700 cfm (4,590 m3/hr) |
Certifications:
- AMCA Certificate
- ATEX Certificate
- IECEx Certificate
- INMETRO Certificate
- Product Quality Assurance Certificate
