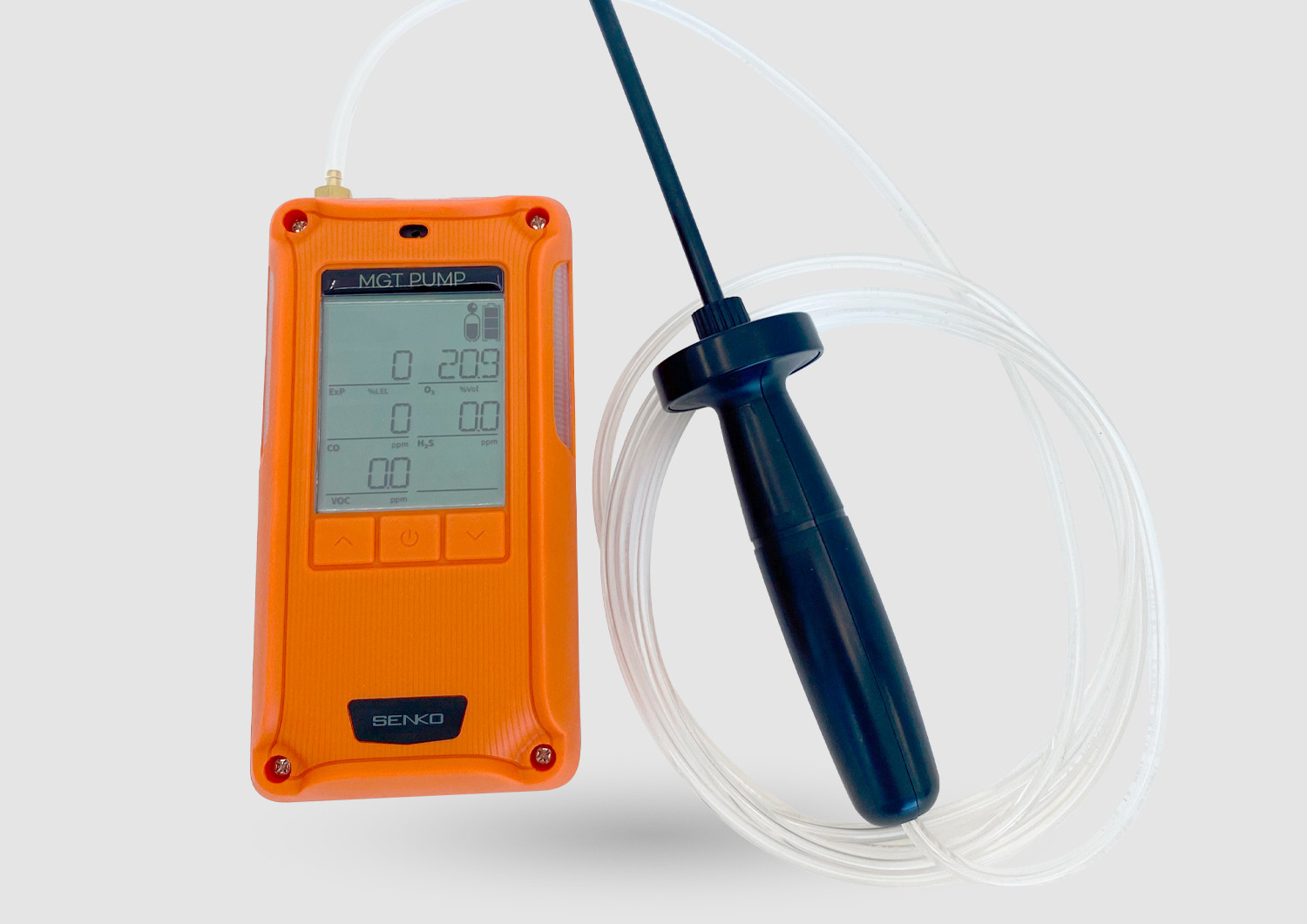

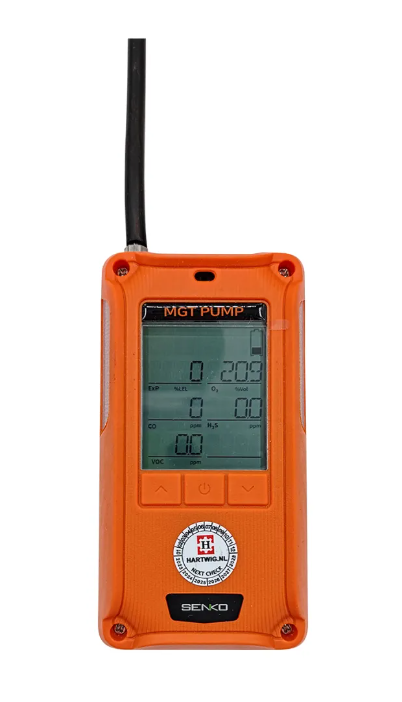

Senko SP-MGTP Portable Multi-Gas Detector with Pump
The Senko SP-MGTP is a rugged, intrinsically safe sampling gas detector engineered to protect workers in hazardous environments. Designed for oil & gas, chemical plants, mining, and other high-risk industries, it detects oxygen deficiency, toxic gases, and explosive risks with precision and reliability.
Capable of monitoring up to 6 gases simultaneously from 37 possible toxic and flammable combinations, the SP-MGTP ensures complete protection. With intuitive operation, glove-friendly buttons, visual/audible/vibration alarms, and easy IR-link configuration, it is built for professionals working in the toughest environments.
Key Features:
✅ Certified for ATEX, IECEx, UL/CSA, INMETRO
✅ Detects up to 6 gases simultaneously (O₂, CO, H₂S, CH₄, VOCs, NH₃, Cl₂, SO₂, and more)
✅ Rugged IP67 water- and dust-proof housing
✅ Integrated pump with Teflon-coated hose for accurate sampling
✅ Visual, audible, and vibrating alarms for immediate hazard alerts
✅ Event logging of up to 30 alarms

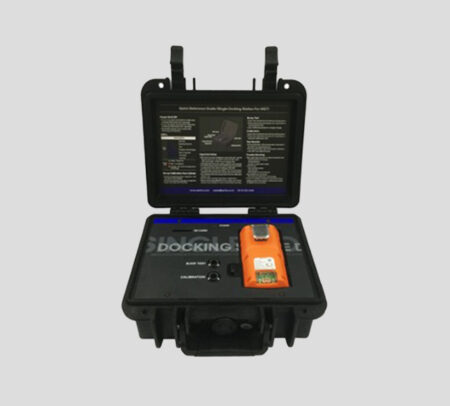

✅ Easy docking station calibration and bump testing
✅ Rechargeable Li-ion battery with up to 5 days runtime
✅ Lightweight (490g) and compact with belt clip for portability
Senko SP-MGTP Technical Specifications:
| Feature | Details |
|---|---|
| Model | Senko SP-MGTP |
| Detection | Up to 6 gases simultaneously (37 combinations) |
| Gas Sensors | Electrochemical, PID, Catalytic, NDIR |
| Alarms | Visual, Audible, Vibrating |
| Event Log | Stores 30 recent alarms |
| Display | Segment LCD with backlight |
| Battery | Rechargeable Li-ion, 4,000mAh (30h–5 days runtime) |
| Weight | 490 g (17.28 oz) |
| Dimensions | 77 × 146 × 43 mm (3.03 × 5.75 × 1.69 in) |
| Operating Temp | -20°C to +50°C (-4°F to +122°F) |
| Ingress Protection | IP67 (dustproof, waterproof) |
| Certifications | ATEX, IECEx, UL/CSA, INMETRO |
Certifications & Compliance:
🔗 ATEX – II 1G/II 2G, certified for Zone 0, Zone 1 gas groups
🔗 IECEx – Global intrinsic safety approval
🔗 UL/CSA – Class I, Division 1, Groups A-D; Class I, Zone 0/1
🔗 INMETRO – Brazil intrinsic safety certification
🔗 IP67 – Dust-tight and waterproof rating
🔗 Download Datasheet
Applications of Senko SP-MGTP:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x SP-MGTP Multi-Gas Detector
📦 1x Rechargeable Li-ion Battery
📦 1x Sampling Probe

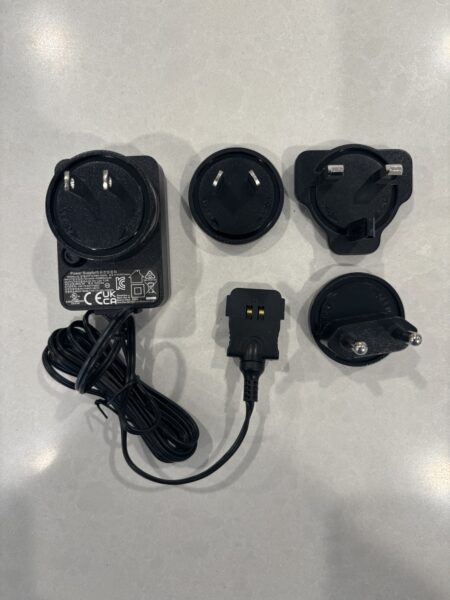

📦 1x Charger & USB Cable
📦 1x Belt Clip
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2–4 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What gases can the SP-MGTP detect?
It supports O₂, CO, H₂S, CH₄, VOCs, NH₃, Cl₂, SO₂, and up to 37 gas combinations.
Is it suitable for confined space monitoring?
Yes, with its built-in pump and sampling probe, it is ideal for confined spaces.
How long does the battery last?
Up to 5 days depending on the model series.
Is it certified for hazardous areas?
Yes, ATEX, IECEx, UL/CSA, and INMETRO certified for use in Zone 0, Zone 1, and C1D1 environments.
