Description
Smart-Ex® 03 DZ1 Intrinsically Safe Smartphone
The Smart-Ex® 03 DZ1 is the new flagship explosion-proof smartphone engineered by Ecom / Pepperl+Fuchs for use in hazardous areas. Certified for ATEX / IECEx Zone 1 / 21 and NEC/CEC Class I Division 1, it provides unmatched reliability for technicians and inspectors working in oil & gas, chemical, and mining sectors where safety and connectivity are critical.
Equipped with the Qualcomm® Snapdragon QCM6490 platform, 8 GB RAM, and 128 GB storage, the Smart-Ex 03 runs Android 15 with Enterprise-grade security updates through 2030. Its 6-inch Gorilla® Glass display supports glove and wet-touch operation, while 5G NR, Wi-Fi 6E, GPS, and NFC guarantee seamless communication in remote field locations.
Key Features:
✅ ATEX / IECEx Zone 1 / 21 and NEC/CEC Class I Division 1 certified
✅ Android 15 OS (Enterprise Recommended) with updates until 2030
✅ IP68 / MIL-STD-810H rugged housing resistant to shock, dust, and water
✅ 5G NR, Wi-Fi 6E, Bluetooth 5.2, Dual SIM (eSIM + nano-SIM), GPS, NFC
✅ 13 MP rear camera + 5 MP front camera (or no-camera variant for high-security zones)
✅ Fingerprint sensor and Common Criteria certified security
✅ 4400 mAh Li-Ion battery for extended runtime in field operations
✅ Google ARCore ready and Lone Worker Protection (LWP) buttons

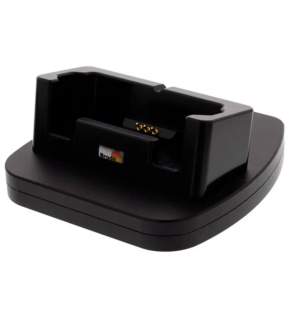

✅ Programmable PTT / alarm buttons and USB-C with dock charging
📦 Package Options:
🔹 Smart-Ex 03 DZ1 with Camera (13 MP rear / 5 MP front, 128 GB storage)
🔹 Smart-Ex 03 DZ2 with Camera (13 MP rear / 5 MP front, 128 GB storage)
Smart-Ex® 03 DZ1 Technical Specifications:
| Feature | Details |
|---|---|
| Processor | Qualcomm® Snapdragon QCM6490 + SDR753 |
| Operating System | Android™ 15 (Enterprise Recommended) |
| Memory / Storage | 8 GB RAM / 128 GB internal storage |
| Display | 6″ (1080 × 2160) Gorilla® Glass, glove + wet touch |
| Camera Options | 13 MP rear + 5 MP front / No-camera variant |
| Connectivity | 5G NR, 4G LTE, Wi-Fi 6E, Bluetooth 5.2, GPS, NFC |
| SIM Support | Dual SIM (eSIM + nano-SIM) |
| Battery | 4400 mAh Li-Ion (removable) |
| Certifications | ATEX, IECEx, NEC/CEC (Class I Div 1), UKCA |
| Ingress Protection | IP68 / MIL-STD-810H |
| Operating Temperature | -20 °C to +60 °C (-4 °F to 140 °F) |
| Dimensions / Weight | 84 × 172 × 18 mm / 400 g (0.88 lb) |
| Security | Fingerprint sensor, Common Criteria certified |

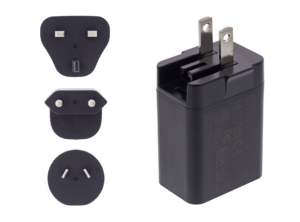

| Included Accessories | Battery, charger, USB-C cable, screwdriver, documentation |
Certifications & Compliance:
🔗 atex_certificate_Smart-Ex_03_DZ1_CERT-7187B
🔗 IECEx (IECEx EPS 23.0021X) – Global hazardous location compliance
🔗 MET_certificate_Smart-Ex_03_DZ1_DZ2_CERT-7527
🔗 MIL-STD-810H – Vibration and shock resistance
🔗brochure_Smart-Ex_03_EN (1)
🔗 Download Datasheet
Applications of Smart-Ex® 03 DZ1:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Pharmaceutical Labs
🔹 Industrial Manufacturing
What’s in the Box?
📦 1x Smart-Ex® 03 DZ1 Smartphone
📦 1x Li-Ion Battery (4400 mAh)
📦 1x Multi-Plug Charger (EU/UK/US/AU)
📦 1x USB-C Cable
📦 1x Screwdriver
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2–3 weeks
📍 Shipping Terms: Worldwide / Expedited Options Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
Is the Smart-Ex 03 DZ1 compatible with 5G networks?
Yes — it supports 5G NR bands n1–n79 for global coverage.
Does it have a removable battery?
Yes, the 4400 mAh battery is user-replaceable for continuous operation.
Can I use it with gloves or wet hands?
Yes, the 6-inch capacitive touch display supports glove and wet-touch use.
What are the differences between the camera and no-camera models?
The camera version includes a 13 MP rear and 5 MP front camera for visual documentation, while the no-camera variant is for restricted high-security environments.
