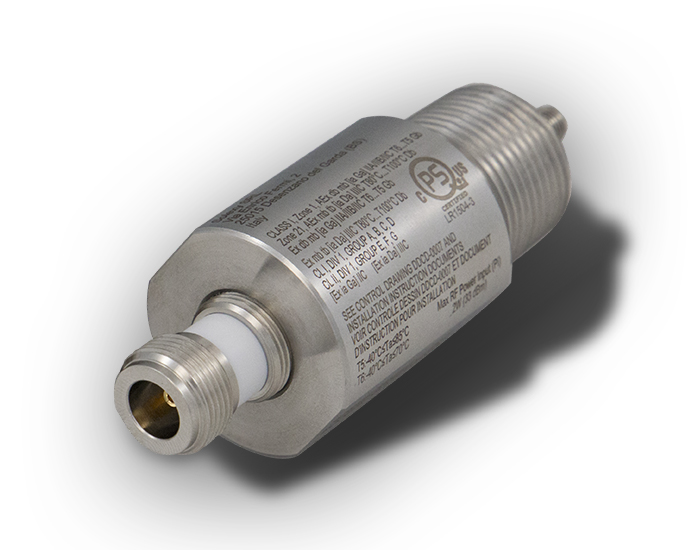

Solexy Antenna Coupler RXN3S0200JXN-13
The Solexy RXN3S0200JXN-13 is an explosion-proof antenna coupler engineered for hazardous locations where safe RF transmission is required. Designed for Class I Division 1 and ATEX/IECEx Zone 1/21 environments, this device enables the use of standard non-EX antennas without compromising compliance or safety. It is the ideal RF barrier for low-frequency applications and isolated ground installations.
Featuring an integrated blocking circuit, the RX coupler prevents hazardous energy transfer to the antenna during equipment faults and allows antenna maintenance with power still applied. Its rugged stainless-steel construction, wide frequency optimization (100 MHz to 3 GHz), and flexible installation make it a dependable solution for wireless infrastructures in oil & gas, chemical, mining, and industrial plants.
Key Features:
✅ ATEX, IECEx, cQPS (USA & Canada), INMETRO & JPN EX certified
✅ Wide RF compatibility: optimized 100 MHz–3 GHz range
✅ NEMA 4X environmental protection
✅ Compatible with multiple radio systems & passive antennas
✅ Integrated short-circuit blocking circuit
✅ Stainless steel AISI 303 construction
✅ Supports up to 6W RF input (-13 option)
✅ Isolated antenna ground (optional RX1 versions)
📦 Package Options:
🔹 Standard: RXN3S0200JXN-13 Coupler Only
Solexy Antenna Coupler RXN3S0200JXN-13 Technical Specifications:
| Feature | Details |
|---|---|
| Model | RXN3S0200JXN-13 |
| Series | RX Series Antenna Coupler |
| RF Frequency Range | 100 MHz to 3 GHz (J Range) |
| Hazardous Area Approvals | ATEX, IECEx, cQPS (USA & Canada), INMETRO, JPN EX |
| North America Classification | Class I Div 1 ABCD; Class II Div 1 EFG; Class I Zone 1 |
| Thread Type | 3/4" NPT |
| Antenna Side Connector | N Female |
| Radio Side Connector | RP-SMA Female |
| Material | Stainless Steel AISI 303 |
| Max RF Input | 6W (-13 option) |
| Impedance | 50 Ω |
| Insertion Loss | Typical low-loss (datasheet graph) |
| Ambient Temperature (T5) | -40°C to +85°C (2W) / -40°C to +80°C (6W) |
| Ambient Temperature (T6) | -40°C to +70°C (2W) / -40°C to +65°C (6W) |
| NEMA Rating | NEMA 4X (when used with compliant enclosure) |
Certifications & Compliance:
🔗 ATEX – Zone 1, 2, 21 & 22 certified apparatus
🔗IECEx – Zone 1, 2, 21 & 22 certified apparatus
🔗 cQPS / UL – Class I Div 1, Groups ABCD; Class II Div 1 EFG
🔗 INMETRO – Brazil hazardous area approval
🔗 JPN EX – Approved for Japan Ex environments
🔗 NEMA 4X – Environmental protection sealing
🔗Download Datasheet
Applications of Solexy Antenna Coupler RXN3S0200JXN-13:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Solexy RXN3S0200JXN-13 Antenna Coupler
📦 1x Installation Guide
📦 1x Compliance Documentation Set
Ordering & Shipping Details
📦 Lead Time: 3-4 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
Is this antenna coupler suitable for Class I Division 1?
Yes, the RXN3S0200JXN-13 is approved for Class I Division 1 and ATEX Zone 1 installations.
Can any antenna be used?
It allows the use of non-certified passive antennas as long as they meet the installation conditions.
Does it protect against short circuits?
Yes, an integrated blocking circuit prevents hazardous energy transfer.
Can antennas be replaced without powering down equipment?
Yes, antenna removal and installation can occur with the device energized.
