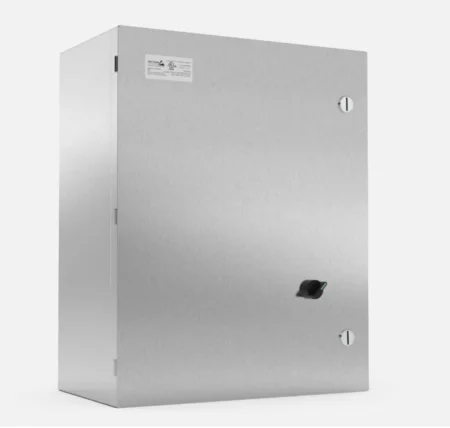

Spectrum 1313-4-SPH Industrial Control Panel-Intrinsically-Safe

SKU: 1313-4-SPH
Q&AsWrite A Review

The Spectrum 1313-4-SPH is a UL listed industrial control panel, designed for hazardous areas, capable of injecting power to (4) 30W PoE+ devices, ideal for demanding installations in challenging environments.

Hazardous Area

Class 1 Division 2

$6,51600

Add Premium Protect Service

Shipping Time: 1-2 Weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category: Tags: ,
Support Image
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat with us

Spectrum 1313-4-SPH Industrial Control Panel-Intrinsically-Safe

Introducing Spectrum 1313-4-SPH Industrial Control Panel-Intrinsically-Safe is a UL listed industrial control panel, certified for hazardous areas in Class I, Division 2, groups B, C, D T4. This panel facilitates the injection of up to (4) 30W PoE+ devices (*note: SFP module not supplied). With a ruggedized design, it excels in challenging environments within surveillance cabinets, built to endure shock, vibrations, and temperatures ranging from -25°C to +40°C (-13°F to +104°F). Tailored for high-demand installations, it offers robust performance and reliability.

Features:

  • IEEE 802.3at PoE+: Capable of supplying 30 watts per port for robust power delivery.
  • IEEE 802.3af Support: Ensures compatibility with devices utilizing IEEE 802.3af Power over Ethernet.
  • Dual-Speed SFP Slot: Supports dual-speed for the SFP slot, providing versatile connectivity options.
  • Link Pass-Through: Incorporates link pass-through functionality for seamless communication.
  • Operating Temperature Range: Functions effectively within an operating temperature range of -25°C to +40°C.
  • Class I, Division 2 Certification: Classified as Class I, Division 2, Groups B, C, D, suitable for hazardous environments.
  • Full/Half-Duplex Flow Control: Enables optimized data transmission with full/half-duplex flow control.
  • Auto-MDI/MDIX Support: Facilitates hassle-free network configuration with automatic MDI/MDIX support.
  • Auto-Negotiation Feature: Automatically adjusts network settings through the auto-negotiation feature.
  • Store-and-Forward Transmission: Utilizes a store-and-forward transmission mechanism for efficient data transfer.
  • 10K Byte Jumbo Frames: Supports 10K byte jumbo frames for improved network performance.

Spectrum Industrial Control Panel-Intrinsically-Safe

Specifications:

Technical data
Model1313-4-SPH
General
Dimensions406.4 x 508 x 225.425 mm ( 16 x 20 x 8.875 in. )
Weight19.05 kg ( 42 lbs )
Material316 Stainless Steel
Operating Conditions-25°C to +40°C
Storage Conditions-40°C to +85°C
UL Listed File NumberE481600
Input120VAC 60HZ 10A
OutputIEEE 802.3at 60W
Power consumption without POE3.53 Watts (No PoE) 63.5 Watts (2 ports PoE)
Status LEDSCopper Port: Link/ACT Copper Port: Gigabit Transmission SFP Port: Link/ACT PoE Power Input Power
Explosion-proofClass I Division 2 Groups B,C,D
CertificationsCE Mark, FCC Class A, EN55011, EN55022/EN61000-6-4 (EMC), EN55024/EN61000-6-2 (Immunity), EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6(CS) EN61000-4-8 (Magnetic Field), IEC60068-2-27(Shock), IEC60068-2-32 (Free fall), IEC60068-2-6 (Vibration)
StandardsIEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3z IEEE 802.3af
Warranty3-year limited warranty, see spectrumcamera.com/warranty

Spectrum Industrial Control Panel-Intrinsically-Safe
