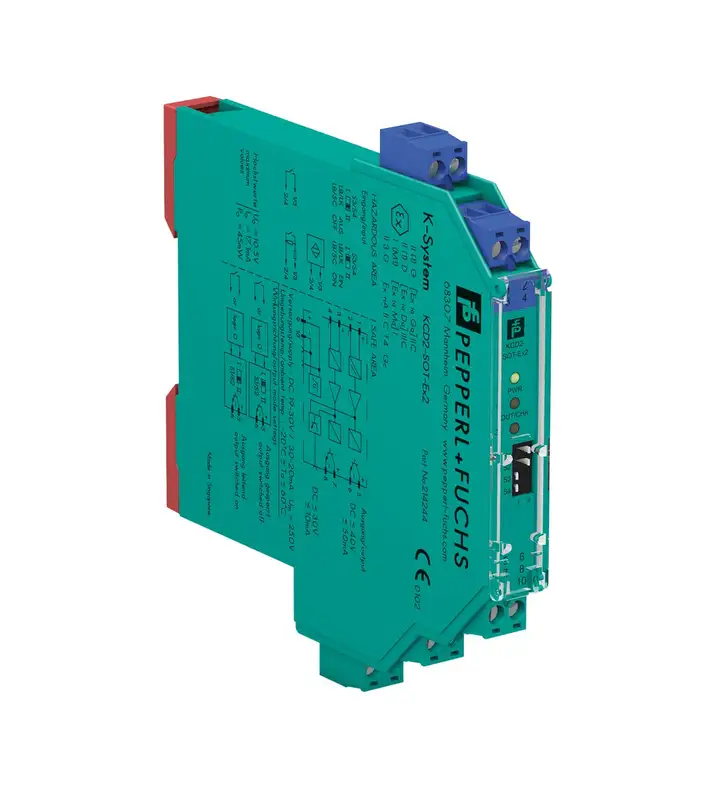

Switch Amplifier KCD2-SOT-Ex2
The Switch Amplifier KCD2-SOT-Ex2 is engineered for intrinsic safety applications, providing a robust solution for transferring digital signals from hazardous areas to safe zones. This device is perfect for professionals working in environments where safety and reliability are paramount.
Key Features:
✅ 2-channel isolated barrier for intrinsic safety applications
✅ Supports dry contact or NAMUR inputs
✅ Features passive transistor outputs
✅ Reversible mode of operation
✅ Line fault detection (LFD) for enhanced safety
✅ Compact housing width of 12.5 mm
✅ Up to SIL 2 (SC 3) according to IEC/EN 61508
📦 Package Includes:
Switch Amplifier KCD2-SOT-Ex2
Each package comes complete with: Installation manual and mounting accessories.
Technical Specifications:
| Specification | Details |
|---|---|
| Signal Type | Digital Input |
| Supply Voltage | 19 ... 30 V DC |
| Rated Current | 30 ... 20 mA |
| Power Dissipation | ≤ 800 mW |
| Operating Temperature | -20 ... 60 °C |
| Dimensions | 12.5 x 119 x 114 mm |
| Weight | Approx. 100 g |
| Protection Rating | IP20 |
| Certifications | ATEX, IECEx |
Certifications & Compliance:
The Switch Amplifier KCD2-SOT-Ex2 meets rigorous international standards for hazardous locations, ensuring safe operation in environments with potential explosive atmospheres.
🔗Certificate of Compliance
🔗Download Datasheet
Applications:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Manufacturing
🔹 Laboratories
What’s in the Box?
📦 1x Switch Amplifier KCD2-SOT-Ex2
📦 1x Installation Manual
📦 1x Mounting Accessories
Ordering & Shipping Details
📦 Lead Time: 1-2 weeks
📍 Shipping Terms: Worldwide shipping available
💳 Payment Options: Credit Card, PayPal, and Net 30 terms (available upon credit approval).
FAQs:
What is the function of the Switch Amplifier KCD2-SOT-Ex2?
The device transfers digital signals from hazardous areas to safe zones, ensuring intrinsic safety.
What certifications does the KCD2-SOT-Ex2 have?
It is certified for ATEX and IECEx standards, suitable for use in hazardous locations.
Can the KCD2-SOT-Ex2 be used in extreme temperatures?
Yes, it operates reliably from -20 °C to +60 °C.
What is the power supply requirement?
The device requires a 19 … 30 V DC power supply.
How is the device mounted?
It is mounted on a 35 mm DIN rail according to EN 60715:2001.
