Tomar D1xS2F Alarm Horn Sounder-Intrinsically Safe

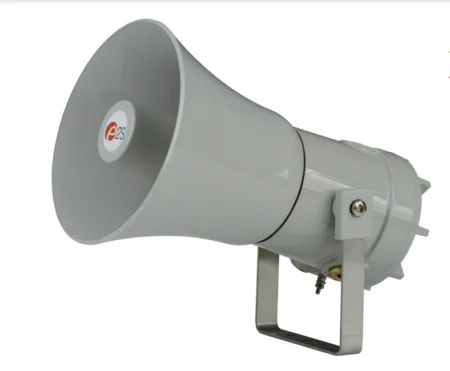

Introducing the Tomar D1xS2F Alarm Horn Sounder-Intrinsically Safe a robust 125dB (A) alarm horn designed for high output and versatility. Encased in a corrosion-proof aluminum enclosure with a reentrant flare horn, this Type 4/4X, IP66 marine-grade device is well-suited for Class I & II Division 1, Zone 1 & 20 explosion-proof signaling applications.

With low current consumption and high Sound Pressure Level (SPL), the D1xS2F is available in 24V DC for public mode fire alarm use and 110-240V DC for general signaling applications. Featuring 64 alarm tone sounds, each of its four stage/channels can be remotely triggered, providing flexibility in alert configurations.

Approved for gas groups ABCD in Class I Division 1, Class I Zone 1 IIC, and for dust groups FG in Class II Division 1, Zone 20 IIIB environments, the D1xS2F ensures compliance with stringent safety standards. The threaded flameproof joint simplifies both installation and routine maintenance, making it a reliable and efficient solution for diverse signaling needs.

Features:

• High Output: Provides a powerful alarm sound with a maximum of 125dB(A) for effective signaling.
• Public Mode Fire Alarm Use: The 24V DC version is approved for public mode fire alarm applications.
• 4 Remotely Selectable Alarm Stages/Channels: Offers flexibility in configuring the alarm system to suit specific requirements.
• Positive or Negative Line Stage/Channel Switching: Allows users to choose between positive and negative line switching for enhanced customization.
• Choice of 64 Alarm Tone Frequencies: Provides a wide range of options for alarm tones, allowing customization based on preference or industry standards.
• Automatic Synchronization on Multi-Sounder System: Ensures seamless integration and synchronization in multi-sounder setups.
• Continuously Rated: Designed for continuous operation without compromising performance.
• Compact Form Factor: Space-efficient design for versatile installation options.
• Robust Corrosion-Proof Aluminum Enclosure: Ensures durability and resilience in challenging environments.
• Stainless Steel Fixings: Enhances resistance to corrosion and environmental wear.
• Triple Cable Entries: Facilitates flexible cable routing for easy installation.
• Duplicate Cable Terminations: Provides redundancy for both input and output in daisy-chain installations.
• Custom Tone Configurations and Frequencies: Available with options for custom configurations and frequencies to meet specific signaling needs.

Tomar D1xS2F Alarm Horn Sounder

Approvals

• UL File ref: E230764
• UL1203 Ed. 5
• CAN/CSA C22.2 No. 25-1966
• CSA C22.2 No. 30-M1986
• CSA C22.2 No. 205-12
• UL464 Ed. 9

Coding

• A1: Gas version
  NEC / CEC:
  • Class I Div 1 ABCD T6 Ta -40°C to +70°C
  • Class I Div 2 ABCD T6 Ta -40°C to +70°C
  • Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
  • 24V dc version is approved for public mode fire alarm use
• D1: Dust version
  NEC / CEC:
  • Class II Div 1 FG T6 Ta -40°C to +70°C
  • Class II Div 2 FG T6 Ta -40°C to +70°C
  • Class III Div 1 & 2
  • Zone 20, 21, 22 IIIB Ta -40°C to +70°C
  • Protection concept: Ex d / AEx d

Tomar D1xS2F Alarm Horn Sounder

Specifications:

Technical Data
Item	Description
Maximum output	125dB (A) @ 1 meter [116dB (A) @ 10ft/3m]
Nominal output	121dB (A) @ 1m +/- 3dB - Tone 4 [112dB (A) @ 10ft/3m]
No. of tones	64 (UKOOA / PFEER compliant)
No. of stages	4
Volume control	Adjustable -12dB (A)
Effective range	656m/410ft @ 1 KHz
Voltages DC	24V dc (10-30V dc)
Voltages AC	110-240V ac 50/60Hz
Stage switching	DC units: negative or positive. AC units: common supply line
Ingress protection	EN60529: IP66 UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material	Marine grade aluminum LM6- copper free Chromate & powder coated – corrosion proof
Color	Red (RAL3000), Grey (RAL7038)
Cable entries	1 x 1/2"NPT & 2 x M20 x 1.5mm
	1 x 1/2"NPT & 2 x 1/2"NPT
	1 x 1/2"NPT & 2 x 3/4"NPT
Terminals	0.5 - 2.5mm² (20-14 AWG)
Grounding stud	M5
Operating temp	-40° to +70°C [-40° to +158°F]
Storage temp	-50° to +70°C [-58° to +158°F]
Relative humidity	90% at 20°C [68°F]
Weight	4.3kg/9.5lbs
Ordering Information
Model	Operating Voltage	Current
D1xS2F-024	10-30 VDC	923mA
D1xS2F-120-240	+/-10% 50/60Hz	267mA @115 VAC; 159mA @ 230 VAC
1 x ½” NPT, 2 x ¾” NPT; brass stopping plug. 304 (A2) Stainless steel mounting bracket

Tomar D1xS2F Alarm Horn Sounder

Resources:

• Datasheet
