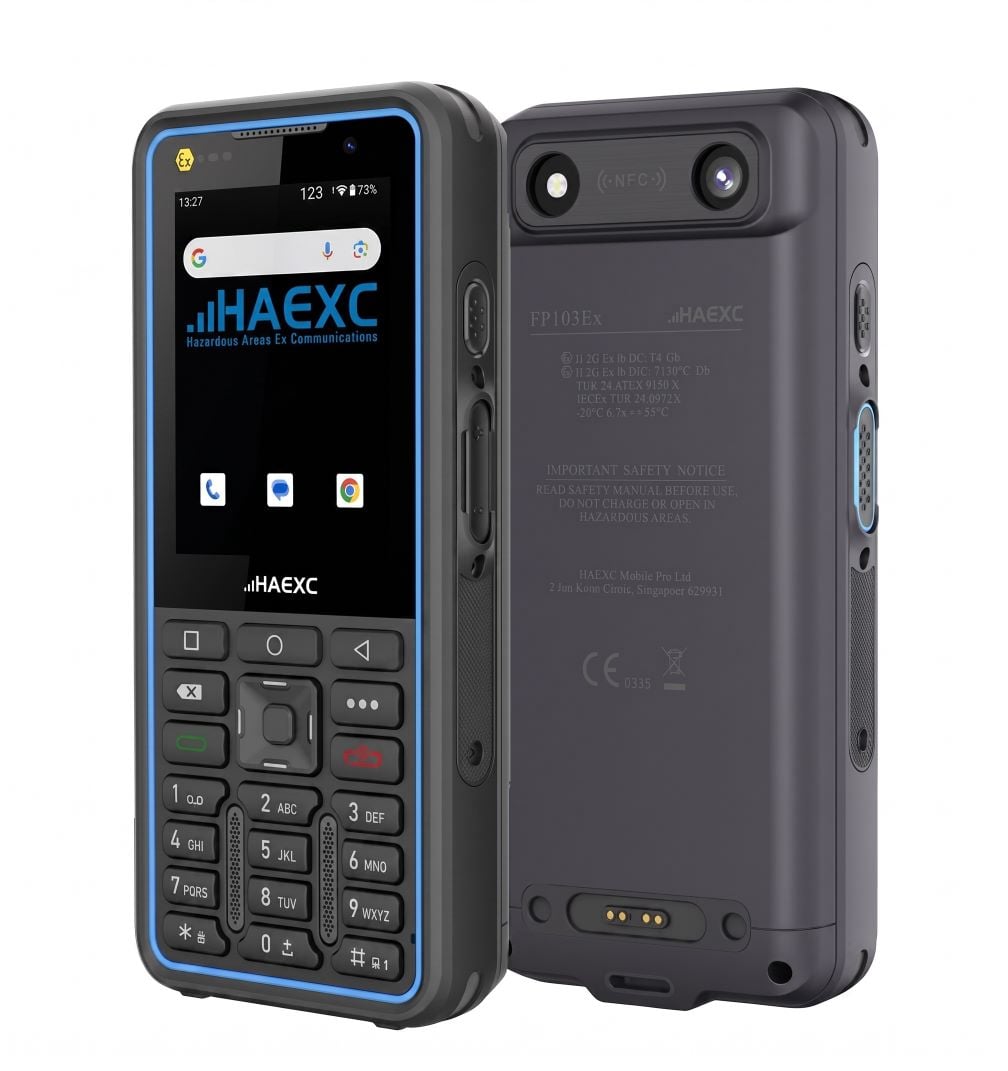

HAEXC FP103Ex Intrinsically Safe 4G Feature Phone

The HAEXC FP103Ex is an ATEX and IECEx Zone 1/21 certified intrinsically safe 4G feature phone engineered to deliver safe, ultra-reliable voice and data communication in explosive gas and dust atmospheres. Built specifically for rugged field operations in oil refineries, chemical plants, and industrial processing zones, this device ensures field crews maintain crucial connectivity without compromising safety standards.

Powered by an efficient MediaTek 6765 Octa-Core processor running Android 14, the FP103Ex combines the simplicity of a classic keypad phone with modern smartphone performance. The 2.83" Gorilla Glass screen features glove-mode support, while AI noise-reduction dual microphones and a waterproof speaker ensure clear Push-To-Talk (PTT) communication even in high-noise industrial settings. With an IP68 rugged rating and a removable 4000 mAh battery, it is built to survive demanding shift work in harsh conditions.

Key Features:

✅ ATEX & IECEx Zone 1/21 Certified (II 2G Ex ib IIC T4 Gb / II 2D Ex ib IIIC T130°C Db)
✅ Android 14 Operating System with Google Play Protect
✅ IP68 Dust & Water Protection, 1.2M Drop Tested with Gorilla Glass
✅ Dual SIM 4G VoLTE, Dual-Band Wi-Fi (2.4/5GHz), Bluetooth 5.0, NFC, and Multi-GPS
✅ High-Resolution Cameras: 13 MP Rear (Auto Focus) + 8 MP Front
✅ Dedicated SOS, Push-to-Talk (PTT), and Custom FN Keys for Instant Field Alerts
✅ Long-lasting, Removable 4000 mAh Li-Ion Battery
✅ AI-Powered Noise Reduction with Dual Microphones and Waterproof Speaker
✅ 4 GB RAM + 64 GB ROM Internal Storage

📦 Package Options:

🔹 Standard 4G LTE + Wi-Fi: Standard Dual SIM 4G LTE/Wi-Fi configuration with base package contents.

HAEXC FP103Ex Technical Specifications:

Feature	Details
Product Model	HAEXC FP103Ex
Hazardous Certifications	ATEX: TÜV 24 ATEX 9195 X (II 2G Ex ib IIC T4 Gb / II 2D Ex ib IIIC T130°C Db) IECEx: TUR 24.0075X (II 2G Ex ib IIC T4 Gb / II 2D Ex ib IIIC T130°C Db)
Operating System	Android 14 (Google Play Protect)
Processor	MediaTek 6765 Octa Core 2.2 GHz
Memory & Storage	4 GB RAM + 64 GB ROM
Display	2.83" LCD, 480x640 (VGA), Multi-Point Capacitive Gorilla Glass, Glove Mode support
Cameras	Rear: 13 MP (Auto Focus)
Battery	4000 mAh Li-Ion, Removable
Dedicated Keys	Push-To-Talk (PTT), SOS, FN Key
Audio	Waterproof Speaker Dual Microphone with AI Noise Reduction
Cellular Bands	LTE: B1/3/5/7/8/18/19/20/26/28a&b/34/38/39/40/41 WCDMA: B1/5/8GSM: 850/900/1800/1900
Connectivity	Dual SIM (Nano), VoLTE Wi-Fi 802.11 ac/a/b/g/n (2.4 GHz & 5 GHz) Bluetooth 5.0 (BLE), NFC, USB Type-C
Location Services	GPS / A-GPS / BeiDou / GLONASS / Galileo
Rugged Protection	IP68 (Water & Dust), 1.2 M Drop Tested
Operating Temperature	-20°C to +55°C
Dimensions & Weight	148 mm x 65 mm x 25 mm

Certifications & Compliance:

🔗 ATEX Certificate – Zone 1/21 explosive gas (II 2G Ex ib IIC T4 Gb) and dust (II 2D Ex ib IIIC T130°C Db)
🔗IECEx Certificate – Global certification for Zone 1/21 hazardous locations
🔗 Rugged Durability – Impact & scratch-resistant Gorilla Glass with 1.2 M drop testing
🔗 Ingress Protection – IP68 rated for full dust resistance and water immersion
🔗 Download Datasheet

Applications of HAEXC FP103Ex:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x HAEXC FP103Ex Handset
📦 1x Removable 4000 mAh Battery
📦 1x Travel Charger (With Multi-Adaptors)
📦 1x Type-C USB Cable
📦 1x Magnetic USB Cable
📦 1x Docking Station
📦 1x Wrist Strap
📦 1x Screwdriver
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 4 - 6 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms



FAQs:

Is the HAEXC FP103Ex certified for use in Zone 1 hazardous areas?
Yes, it carries both ATEX (TÜV 24 ATEX 9195 X) and IECEx (IECEx TUR 24.0075X) certifications for Zone 1 (Gas) and Zone 21 (Dust) environments.

Can I use this phone while wearing industrial safety gloves?
Yes, the 2.83-inch Gorilla Glass screen features dedicated Glove Mode support along with a physical keypad for effortless navigation.

Does it support Push-to-Talk (PTT) communication?
Yes, the phone includes a dedicated PTT side key, an AI noise-reduction dual microphone system, and a loud waterproof speaker designed for noisy workplaces.

Is the battery user-replaceable in the field?
Yes, the device is equipped with a 4000 mAh removable Li-ion battery. Note: Battery replacement must always take place in a non-hazardous area.
