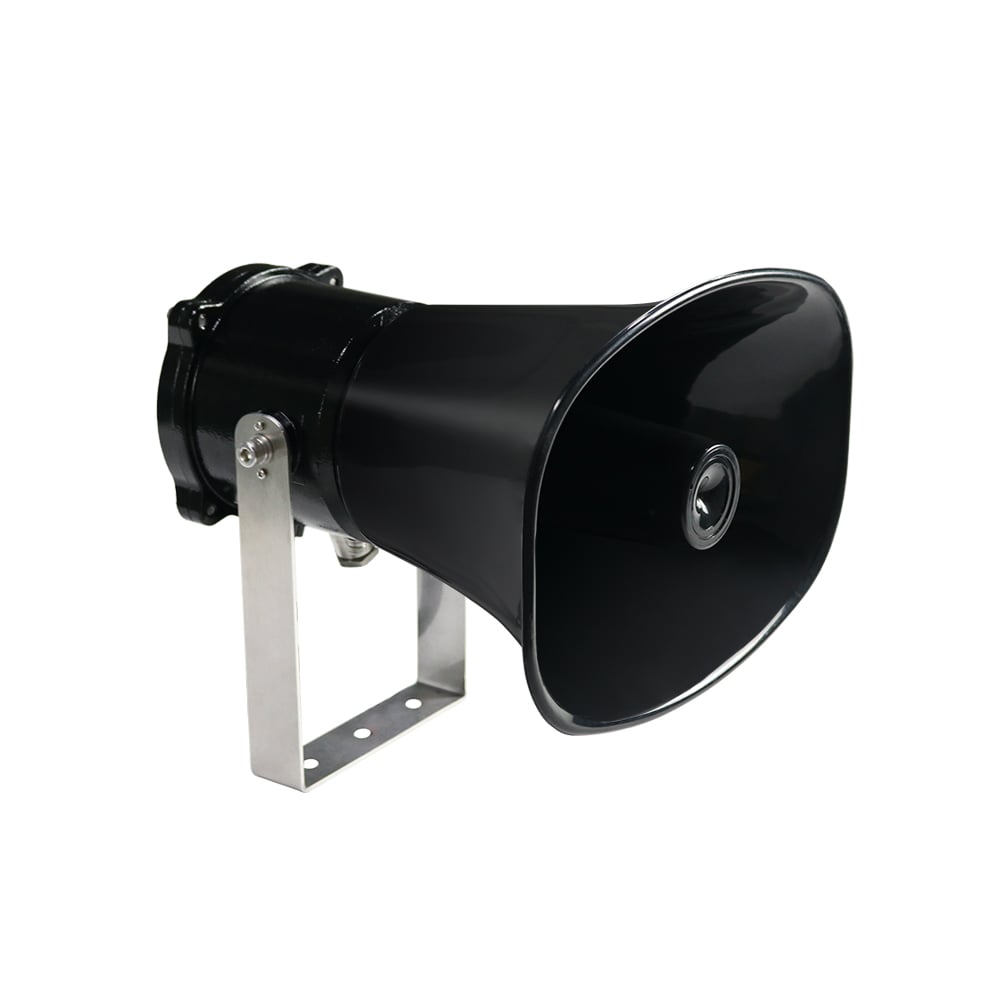

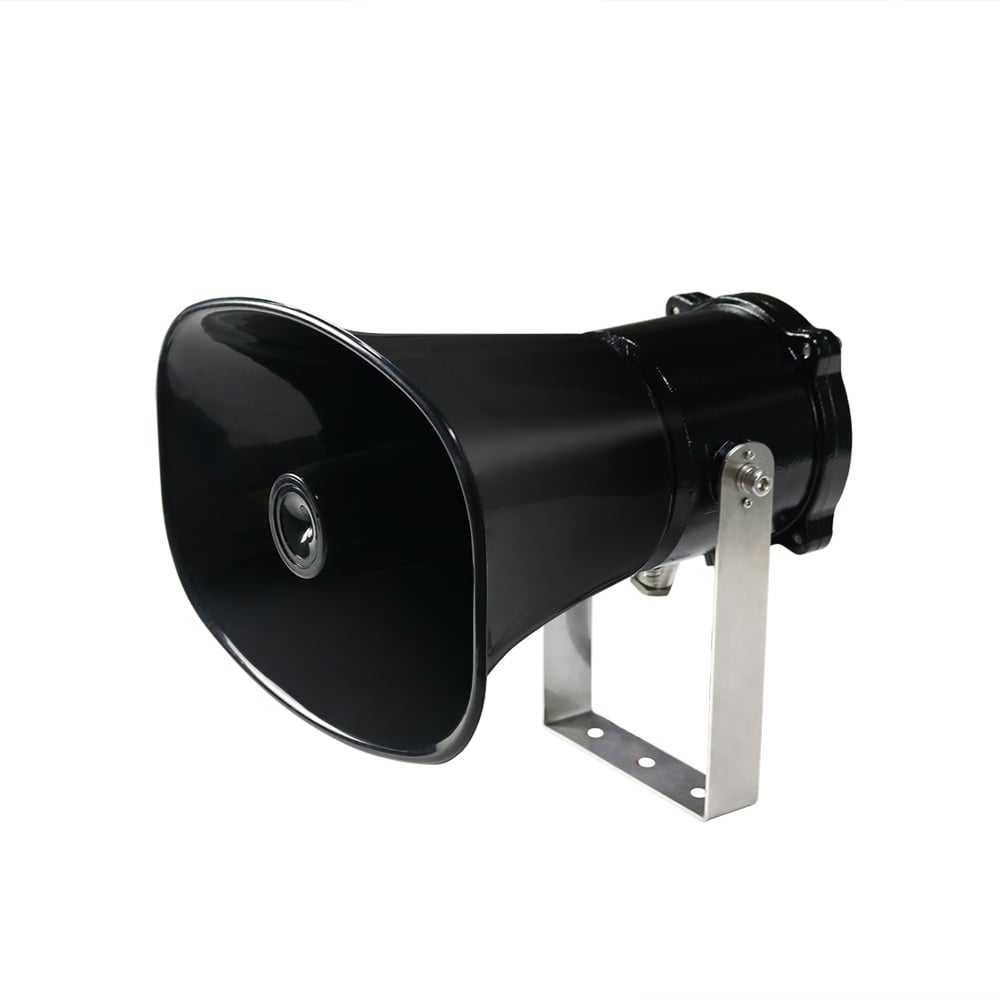

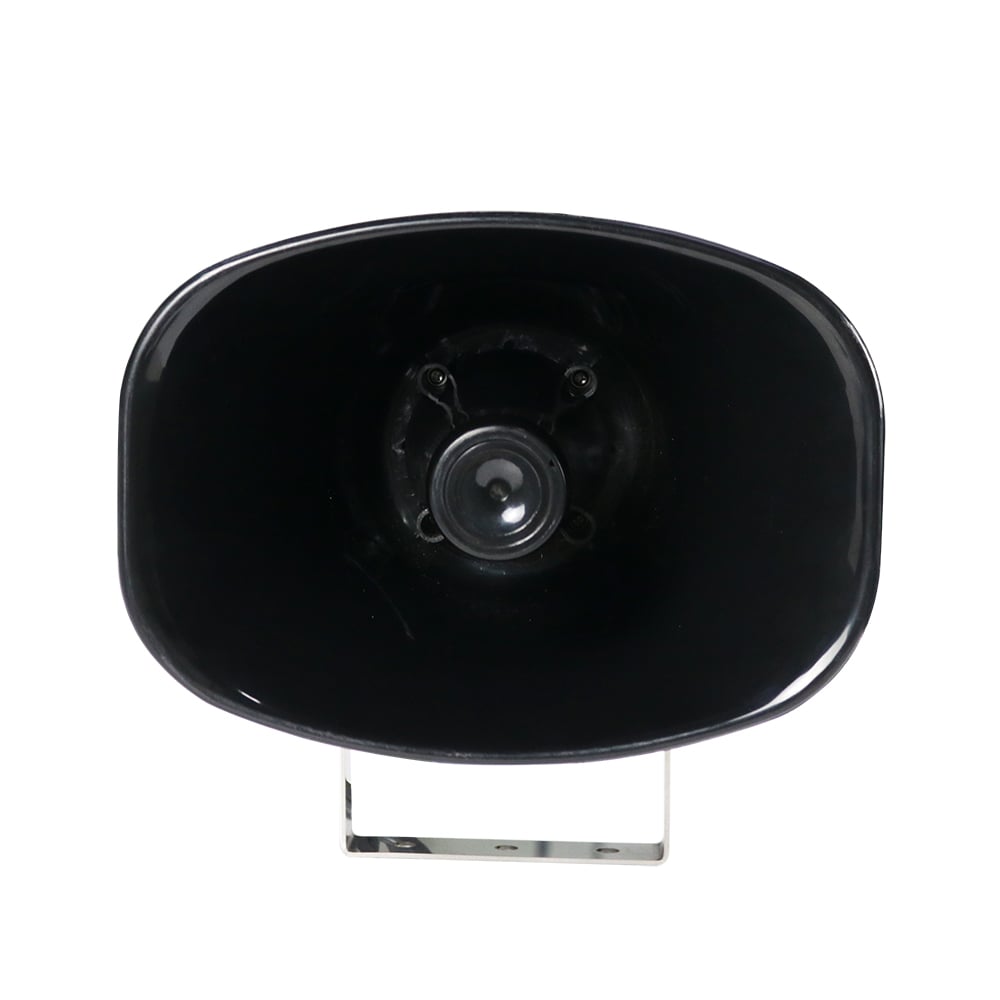

J&R JREX-HSA Explosion-Proof Loudspeaker

The J&R JREX-HSA Explosion-Proof Loudspeaker is a heavy-duty horn speaker engineered to deliver clear public address, paging, and emergency alarms in hazardous industrial environments. Certified under ATEX and IECEx for Zone 1, 2, 21, and 22, this loudspeaker is ideal for high-risk oil and gas, chemical, and offshore operations where explosive gas or dust atmospheres are present. It features an advanced stainless steel wire mesh explosion-proof acoustic mesh that ensures maximum sound output with minimal attenuation while maintaining extreme mechanical strength.

Built for extreme field endurance, the JREX-HSA operates reliably in severe temperatures ranging from -40°C up to +65°C. It is housed in anti-static ABS with a rugged stainless steel mounting bracket and achieves an IP66 ingress rating to withstand heavy washdowns, dust, and corrosive sea spray. Available in SIP/VoIP (PoE/12V DC), constant voltage (70V/110V), and constant impedance (8Ω) configurations up to 35W, it seamlessly integrates into modern IP intercoms, traditional PA systems, and fire broadcast networks.

Key Features:

✅ ATEX & IECEx Certified for Ex db IIC T6/T5 Gb and Ex tb IIIC T80°C/T95°C Db
✅ Versatile Power Options: SIP/VoIP (PoE/12V DC), 70V/110V Constant Voltage, or 8Ω Constant Impedance
✅ Rugged IP66 weatherproof & anti-static ABS construction with stainless steel bracket
✅ Flexible System Options: SIP/VoIP (PoE/DC12V), Constant Voltage (70V/110V), and 8Ω Analog
✅ Sound Levels up to 120dB for maximum coverage in loud processing areas
✅ Advanced stainless steel wire mesh explosion-proof acoustic component
✅ Wide operating temperature range from -40°C to +65°C
✅ Wall-mountable design with adjustable U-bracket for optimal dispersion
✅ M20 x 1.5 dual cable entry threads with certified metal plugs

📦 Package Options:

🔹 Analog 8Ω Constant Impedance: Available in 15W, 20W, 25W, 30W, and 35W configurations
🔹 Analog Constant Voltage 110V: Tappings for 17.5W and 35W
🔹 SIP / VoIP Version: IP-networked horn supporting PoE / DC12V power (15W to 35W)

J&R JREX-HSA Technical Specifications:

Feature	Details
Model	JREX-HSA Explosion-Proof Loudspeaker
Manufacturer	J&R Technology
Hazardous Certifications	ATEX (CSANe 25ATEX1091X), IECEx (IECEx CSA 25.0050X), CE, FCC, RoHS
Explosion Protection	II 2GD Ex db IIC T6/T5 Gb Ex tb IIIC T80°C/T95°C Db
Housing Material	Anti-static ABS housing Stainless steel base and fixing bracket
Ingress Protection	IP66 (Dust-tight, heavy water jets)
Power Options (Analog 8Ω)	15W, 20W, 25W, 30W, 35W
Power Options (70V Voltage)	8.5W, 17.5W
Power Options (110V Voltage)	17.5W, 35W
Power Options (SIP / VoIP)	15W – 35W (PoE / DC 12V Supply)
Sound Level Output	Analog: 110 ~ 120 dB / SIP: 105 ~ 115 dB
Frequency Response	Analog: 250 Hz ~ 15,000 Hz SIP: 250 Hz ~ 5,000 Hz
Operating Temperature	-40°C to +65°C (depending on T-class & wattage variant)
Relative Humidity	≤ 95% non-condensing
Cable Entry Threads	2x M20 x 1.5 (Includes Ex-certified metal blind plugs)
Dimensions	302 x 280 x 295 mm (L x W x H)
Mounting	Wall-mounted via standard adjustable U-Bracket

Certifications & Compliance:

🔗 ATEX Certificate (CSANe 25ATEX1091X) – II 2GD Ex db IIC T6/T5 Gb
🔗IECEx Certificate (IECEx CSA 25.0050X) – Ex tb IIIC T80°C/T95°C Db
🔗 CE, FCC, RoHS – Fully compliant with international safety and EMI standards
🔗 Download Datasheet

Applications of J&R JREX-HSA:

🔹 Oil & Gas (Refineries, Offshore Rigs, FPSO Units)
🔹 Chemical & Petrochemical Plants
🔹 Mining & Processing Facilities
🔹 Power Generation & Metallurgy

What’s in the Box?

📦 1x J&R JREX-HSA Explosion-Proof Loudspeaker
📦 1x Stainless Steel Adjustable Mounting U-Bracket
📦 2x M20 x 1.5 Certified Metal Blind Plugs
📦 1x Installation & Maintenance Manual

Ordering & Shipping Details

📦 Lead Time: 2–3 Weeks (Standard Production)
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms



FAQs:

Can the JREX-HSA be connected directly to an IP network?
Yes, the JREX-HSA-P model supports native SIP/VoIP operation powered via PoE or a 12V DC power supply

What zones is this loudspeaker certified for?
It is certified under ATEX and IECEx for Zone 1 and Zone 2 (Gas), as well as Zone 21 and Zone 22 (Dust) environments[cite:

Is the speaker suitable for harsh marine environments?
Yes, its housing is made from anti-static ABS, the base bracket is stainless steel, and the unit is IP66 rated for extreme weather and corrosion resistance.

What is the maximum sound output level?
Depending on the model type (SIP or Analog), the speaker produces output levels between 105 and 120 dB
