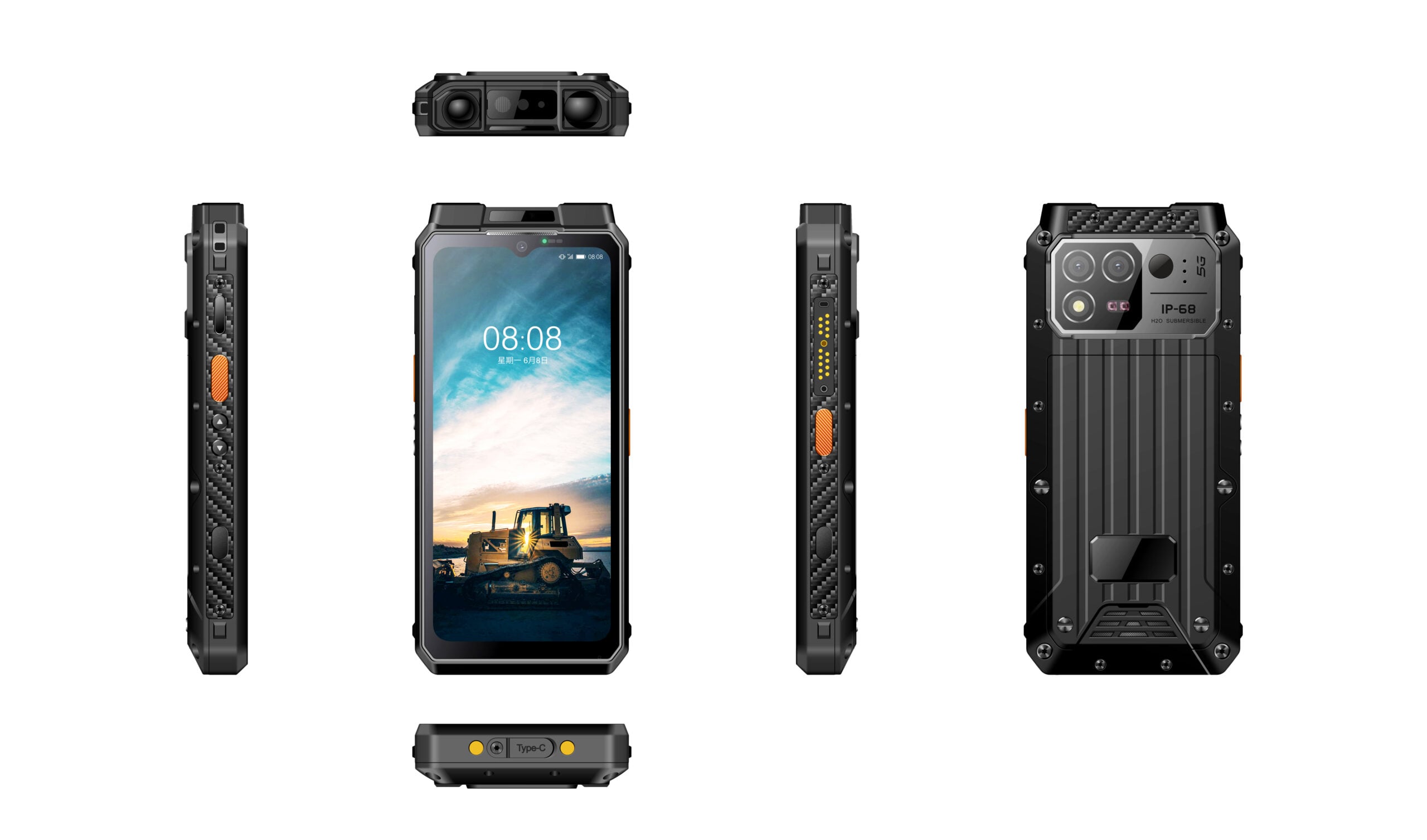

J&R Technology JR-MP-09 5G Intelligent Explosion-Proof Smartphone

The J&R JR-MP-09 is a cutting-edge 5G explosion-proof rugged smart terminal designed to bridge the gap between advanced smartphone capabilities and mission-critical two-way radio communications in hazardous industrial environments. Certified for ATEX and IECEx Zone 2/22 (Ex ic IIC T4 Gc / Ex ic IIIC T135°C Dc), this device ensures complete operational safety in potentially explosive atmospheres such as oil refineries, offshore drilling rigs, chemical processing facilities, and mining sites.

Powered by Android 16.0 on a Dimensity 700 platform, the JR-MP-09 delivers seamless, high-performance computing in demanding field conditions. Built with field technicians in mind, its vivid 6.583" FHD display fully supports glove and rain touch controls. Exceptional field utility is backed by a crystal-clear 100MP rear camera, HD infrared night vision capabilities, a 120dB speaker for ultra-clear intercom calls in noisy plants, and a high-capacity removable battery with fast charging support.

Key Features:

✅ Certifications: ATEX, IECEx, CE, FCC, and RoHS compliant for hazardous locations (Ex ic IIC T4 Gc / Ex ic IIIC T135°C Dc)
✅ Operating System: Android 16.0 with full Google Mobile Services support
✅ Durability Ratings: IP68 water, dust, and shock resistance; operates between -20°C to +60°C
✅ Connectivity: Full-band 5G, Wi-Fi 6, Bluetooth 5.1, Multi-GNSS (GPS, BEIDOU, GLONASS, GALILEO), and NFC
✅ Camera System: 100MP main rear camera + 2MP macro camera + 32MP front camera with HD infrared night vision and flashlight
✅ Security Features: Biometric security via facial recognition and side fingerprint sensor
✅ Power & Battery: 8800mAh (nominal) / 9600mAh (target) removable polymer battery with 24W fast charging
✅ Intercom & Audio: Powerful 120dB speaker with dual noise-reduction microphones and AORO PoC / optional hardware walkie-talkie options (UHF/VHF)
✅ Physical Controls & Storage: Dedicated PTT/POC keys, dual custom side buttons, glove-touch 6.583" FHD screen, and expandable storage up to 2TB via MicroSD

📦 Package Options:

🔹 Standard 5G + Wi-Fi: Includes 12GB RAM + 256GB storage with full 5G cellular and Wi-Fi 6.

J&R Technology JR-MP-09 Technical Specifications:

Certifications & Compliance:

🔗 ATEX Certificate: II 3GD Ex ic IIC T4 Gc / Ex ic IIIC T135°C Dc –  Zone 2 / Zone 22
🔗 IECEx - Certificate Ex ic IIC T4 Gc / Ex ic IIIC T135°C Dc –
🔗 Global Compliance: CE, FCC, and RoHS certified
🔗 Ingress Protection: IP68 – Dust-tight and fully submersible in water
🔗 Download Datasheet

Applications of J&R Technology JR-MP-09:

🔹 Oil & Gas (Offshore Rigs, Refineries, and Pipelines)
🔹 Chemical & Petrochemical Processing Plants
🔹 Mining & Heavy Industry Operations
🔹 Laboratories & Pharmaceutical Manufacturing
🔹 Emergency Response, Security, and Public Safety

What’s in the Box?

📦 1x J&R JR-MP-09 Explosion-Proof Smartphone
📦 1x High-Capacity Removable Battery
📦 1x Fast Charger (Type-C 24W)
📦 1x USB Type-C Cable
📦 1x Desk Charger Base
📦 1x Protective Rugged Case/Cover
📦 1x Documentation & Certification Kit

Ordering & Shipping Details

📦 Lead Time: 3 – 4 weeks
📍 Shipping Terms: Worldwide Shipping / Expedited Air Freight Options Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms Available upon Approval

FAQs:

Is the battery removable inside a hazardous area?
While the battery is user-removable for convenient swapped operations during shifts, all battery replacements must strictly take place in a designated non-hazardous (safe) area.

Can I use this smartphone while wearing heavy work gloves?
Yes, the 6.583-inch FHD screen features specialized touch settings designed to work seamlessly with gloves and in wet or rainy conditions.

Does this device support standard walkie-talkie frequencies?
The device natively supports Push-to-Talk over Cellular (PoC) apps. Additionally, optional dedicated hardware modules for UHF (400–470MHz) or VHF (136–174MHz) walkie-talkie support are available upon request.

How loud is the speaker for high-noise environments?
The JR-MP-09 features a high-output 2W 3040 BOX speaker capable of up to 120dB volume combined with dual noise-canceling microphones to ensure crystal-clear intercom communications in loud plants.
