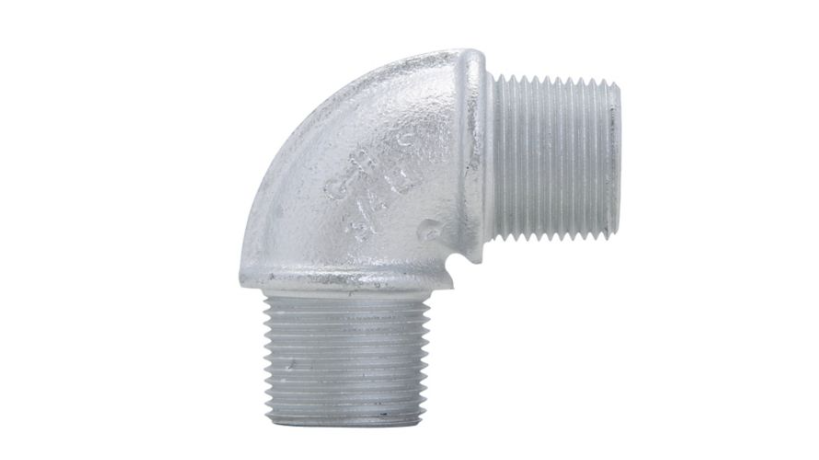

Crouse-Hinds EL395 1-Inch 90° Male Explosion-Proof Elbow
The Crouse-Hinds EL395 is a high-performance 90-degree male conduit elbow specifically engineered for use in threaded thick-wall conduit systems. Designed for hazardous environments such as oil refineries and chemical processing plants, this fitting allows for critical direction changes in rigid conduit runs or when terminating at a box or fitting hub, ensuring a gas-tight and explosion-proof seal.
Built for the rigors of the field, the EL395 features a compact design that permits assembly even with minimum clearance to adjacent equipment. Its smooth interior surface is specifically designed to facilitate easy wire pulling without damaging insulation, while the rugged Feraloy® iron alloy or ductile iron construction provides superior strength and longevity in extreme industrial conditions.
Key Features:
✅ Class I, Div. 1 & 2, Groups C, D (Explosion-proof)
✅ Class II, Div. 1, Groups E, F, G (Dust-ignitionproof)
✅ Class III hazardous area rated
✅ 90-degree angle for precise conduit routing
✅ 1-inch hub size for standard rigid/IMC conduit
✅ Male-threaded ends for direct equipment or fitting connection
✅ Compact footprint for tight-clearance installations
✅ Smooth interior for snag-free wire pulling
✅ Durable Feraloy iron alloy or ductile iron material
📦 Package Options:
🔹 Standard EL395: Feraloy iron alloy with electrogalvanized finish
🔹 EL395 SA: Copper-free aluminum version for enhanced corrosion resistance
Crouse-Hinds EL395 Technical Specifications:
| Feature | Details |
|---|---|
| Manufacturer | Eaton Crouse-Hinds |
| Catalog Number | EL395 |
| Hub Size | 1 Inch |
| Angle | 90 Degree |
| Connection Type | Male |
| Material | Feraloy Iron Alloy or Ductile Iron |
| Finish | Electrogalvanized and Aluminum Acrylic Paint |
| Hazardous Ratings | Class I, Div 1 & 2, Groups C, D; Class II, Div 1, Groups E, F, G; Class III |
| Standards | UL1203, CSA C22.2 No. 30 |
| Dimensions (LxW) | 5-11/16" x 3-1/2" |
Certifications & Compliance:
🔗 NEC/CEC – Class I, Div 1 & 2, Groups C, D; Class II, Div 1, Groups E, F, G
🔗 UL1203 – UL1203 (Explosion-Proof and Dust-Ignition-Proof Electrical Equipment)
🔗 CSA Standard – C22.2 No. 30
🔗 Ingress Protection – 4F Rated
🔗 Download Datasheet
Applications of Crouse-Hinds EL395:
🔹 Oil & Gas Refineries
🔹 Chemical & Petrochemical Plants
🔹 Mining & Grain Elevators
🔹 Industrial Manufacturing
🔹 Wastewater Treatment Facilities
What’s in the Box?
📦 1x Crouse-Hinds EL395 1″ 90° Male Elbow
📦 1x Installation Guide
Ordering & Shipping Details
📦 Lead Time: 1 Week
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 Crouse-Hinds UNY305 1″ Male Union
🔗 Crouse-Hinds EL390 1″ Female Elbow
🔗 Rigid Conduit 1″ Threaded
FAQs:
Is the EL395 available in aluminum?
Yes, you can order the copper-free aluminum version by adding the suffix ‘SA’ to the catalog number (EL395 SA)
What is the primary material used?
The standard EL395 is manufactured from Feraloy iron alloy or ductile iron with an electrogalvanized finish.
Can this be used in Class I, Group A, and B environments?
The 1″ EL395 is specifically rated for Groups C and D; always verify your specific hazardous zone requirements before installation
