Description

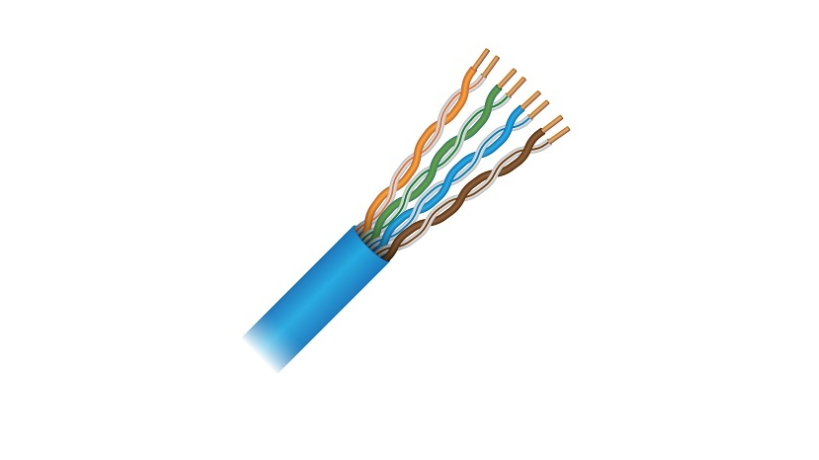

Paige GameChanger® Cable 258950306
The Paige GameChanger® Cable is a specialized 22 AWG unshielded twisted pair (UTP) solution designed to exceed the distance limitations of standard Category cable. Engineered for rugged industrial environments, including oil & gas facilities and chemical plants, this cable is plenum-rated (CMP) and built for both indoor and outdoor applications where reliability is non-negotiable.
Constructed with high-grade FEP insulation and a durable FEP jacket, this cable provides exceptional thermal stability and chemical resistance in the field. It is specifically designed to support high-power applications, delivering Power over Ethernet (PoE) up to 100W across Classes 1-8, while maintaining a wide operating temperature range suitable for the most volatile climates.
Key Features:
✅ C(UL)US CMP / CSA FT6 Flame Rated
✅ Certified to TIA-568.2-E CAT 6 Performance
✅ Extreme Temperature Rating: -70°C to +200°C
✅ Supports PoE Classes 1-8 (Up to 100W)
✅ 22 AWG Solid Bare Copper Conductors for superior conductivity
✅ Indoor/Outdoor Plenum Rated (CMP)
✅ Low Nominal Velocity of Propagation (NVP) of 70%
✅ RoHS-2 and REACH Compliant
✅ Integrated Ripcord for easy jacket stripping
📦 Package Options:
🔹 1,000′ Reel-In-A-Box (Black): PN: 258950304
🔹 1,000′ Reel-In-A-Box (Blue): PN: 258950306
🔹 1,000′ Reel-In-A-Box (Pink): PN: 258950308
🔹 1,000′ Reel-In-A-Box (White): PN: 258950310
Paige GameChanger® Technical Specifications:
| Feature | Details |
|---|---|
| Model Number | 258950306 |
| Conductor | 22 AWG Solid Bare Copper |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Material | FEP (Fluorinated Ethylene Propylene) |
| Flame Rating | NFPA 262 (CMP) / CSA FT6 |
| Operating Temperature | -70°C to +200°C |
| PoE Support | Up to 100W (Class 1-8) |
| Max Voltage | 300V |
| Nominal O.D. | 0.220" (5.59 mm) |
| Weight | 30 lbs per 1,000 ft |
| Compliance | TIA-568.2-E CAT 6, RoHS-2, C(UL)US CMP |
Certifications & Compliance:
🔗 ANSI/TIA-568.2-E (2024) – Balanced Twisted-Pair Telecommunications Cabling and Components
🔗 NFPA 262 (CMP) – Standard Method of Test for Flame Travel and Smoke of Wires and Cables
🔗 UL 444 & CSA 22.2 No. 214 – Communications Cables safety standards
🔗 EU Directive 2011/65/EU – RoHS-2 Environmental Compliance
🔗 Download Datasheet
Applications of Paige GameChanger®:
🔹 Oil & Gas (Upstream/Downstream)
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x 1,000′ (305 m) Reel-In-A-Box of GameChanger® Cable
📦 1x Documentation/Safety Marking Tape (Internal)
Ordering & Shipping Details
📦 Lead Time: Contact for current stock (typically ships in 1-3 business days)
📍 Shipping Terms: Worldwide / Expedited Options Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 GameChanger® Shielded (STP) Version
🔗 Industrial Ethernet Switches
🔗 PoE Extenders and Injectors
FAQs:
What is the maximum distance the GameChanger® cable can reach?
While standard Category cable is limited to 100 meters, GameChanger® is engineered to provide Ethernet and PoE at significantly longer distances, depending on the specific equipment and data rates used.
Is this cable suitable for extreme cold?
Yes, the cable is rated for operation down to -70°C, making it ideal for arctic or cryogenic environments found in certain oil and gas applications.
Can I use this for high-power PoE devices?
Absolutely. It is rated for PoE Classes 1 through 8, supporting up to 100W of power delivery.
Is the jacket resistant to outdoor elements?
Yes, the FEP jacket is rated for indoor/outdoor use and provides excellent durability against UV and environmental stressors
