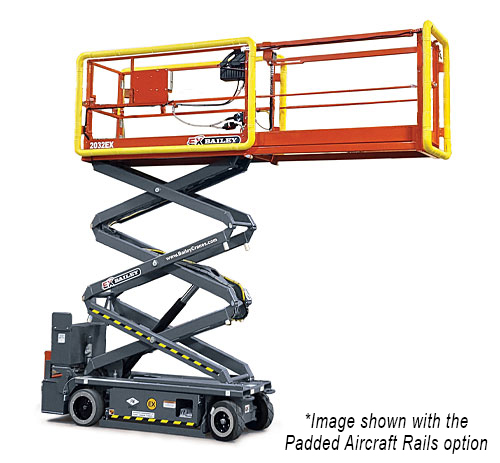

2032EX Explosion Proof Scissor Lift

The 2032EX Explosion Proof Scissor Lift is designed for safe operation in hazardous environments where flammable gases or vapors may be present. Certified for Class I, Division 1, Group D, this lift provides reliable and compliant access solutions for industries like oil & gas, chemical, and manufacturing.

With a working height of 26 ft and a robust platform capacity of 900 lbs, this scissor lift is built to handle demanding tasks while ensuring operator safety. Featuring proportional drive controls, a battery condition indicator, and a 3 ft extendable deck, it’s engineered for efficient performance even in the most challenging classified areas.

Key Features:

✅ Explosion Proof – Class I, Division 1, Group D
✅ UL 583 Type EX Standard compliant
✅ ANSI A92.20 & CSA B354.6 compliant
✅ 26 ft working height, 20 ft platform height
✅ 28” x 84” spacious platform with 3 ft extension
✅ 900 lb platform capacity (300 lb deck extension)
✅ Proportional drive controls for precision
✅ Battery condition indicator with 250 Amp-hour batteries
✅ Movement alarm and full-height swing gate for safety
✅ Optional explosion proof work light, padded rails, and 6 ft powered deck extension

📦 Package Options:

🔹 Standard: 3 ft manual deck extension, battery-powered
🔹 Optional: 6 ft powered extension deck
🔹 Optional: Padded aircraft rails for added protection
🔹 Optional: Explosion proof work light for visibility

2032EX Explosion Proof Scissor Lift Technical Specifications:

Feature	Details
Working Height	26 ft (7.9 m)
Platform Height	20 ft (6.1 m)
Platform Size (Inside)	28 x 84 in (0.7 x 2.1 m)
Platform Capacity	900 lbs (408 kg)
Deck Extension	3 ft (Optional 6 ft powered)
Deck Extension Capacity	300 lbs
Overall Width	32 in (0.8 m)
Overall Length	108 in (2.75 m)
Stowed Height	81.5 in (2.1 m)
Ground Clearance (Stowed)	3.5 in (8.9 cm)
Ground Clearance (Raised)	0.75 in (1.9 cm)
Wheelbase	69 in (1.8 m)
Inside Turning Radius	50 in (1.27 m)
Outside Turning Radius	108 in (2.75 m)
Drive Speed (Stowed)	1 mph (1.6 km/h)
Drive Speed (Raised)	0.5 mph (0.8 km/h)
Power	4 x 6V 250 Amp-hr batteries
Charger	20 Amp Automatic SCR
Explosion Proof Certification	Class I, Division 1, Group D
Compliance	UL 583 Type EX, ANSI A92.20, CSA B354.6

Certifications & Compliance:

🔗 SCISSOR-CERTIFICATIONS – Explosion Proof Compliance
🔗 UL 583 Type EX – Electrical standard for explosion proof equipment
🔗 ANSI A92.20 & CSA B354.6 – Aerial lift safety standards
🔗 ISO 9001:2015 – Quality management certified manufacturing
🔗 Download Datasheet

Applications of 2032EX Explosion-Proof Scissor Lift:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x 2032EX Explosion Proof Scissor Lift
📦 1x Battery Pack (4x 6V 250 Amp-hr)
📦 1x Charger (20 Amp Automatic SCR)
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 10–12 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

FAQs:

Is the 2032EX certified for Zone 1?
This model is certified for Class I, Division 1, Group D. Please contact us for Zone certifications.

Can the deck extension be powered?
Yes, there is an optional 6 ft powered extension deck available.

What type of charger is included?
A 20 Amp Automatic SCR charger is included with the lift.

Does it include explosion proof lighting?
Explosion proof work lights are optional and can be added at order.

How long does this take to ship?
10-12 weeks. Given the size and certification requirements of this equipment, we recommend ordering well ahead of your project timeline — contact us to confirm exact scheduling for your site.

What if the lift doesn't match my site's certification requirements?
Confirm your Class/Division or Zone requirement with our team before ordering — given the cost and lead time on this equipment, we want to make sure it's the right fit first. If there's an issue after delivery, our return and refund process applies.
