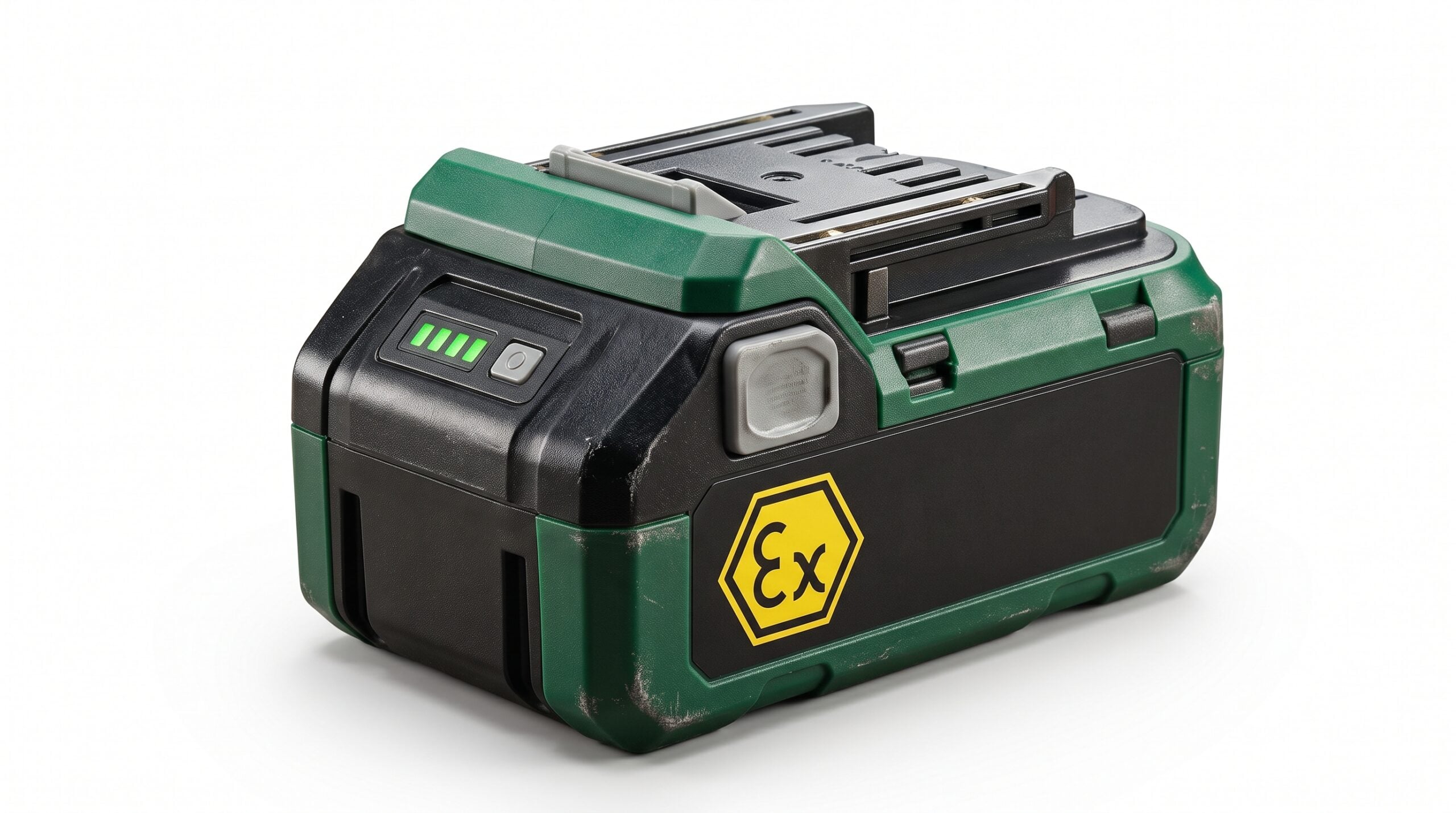

Toyota 8HBW23 Replacement Battery Pack (EE Rated)
UL Type "EE" Certification: Factory-certified under Underwriters Laboratories (UL)
$5,740.00Available
Your Global Authority In Hazardous Areas
Your Global Authority In Hazardous Areas
Your cart is empty.

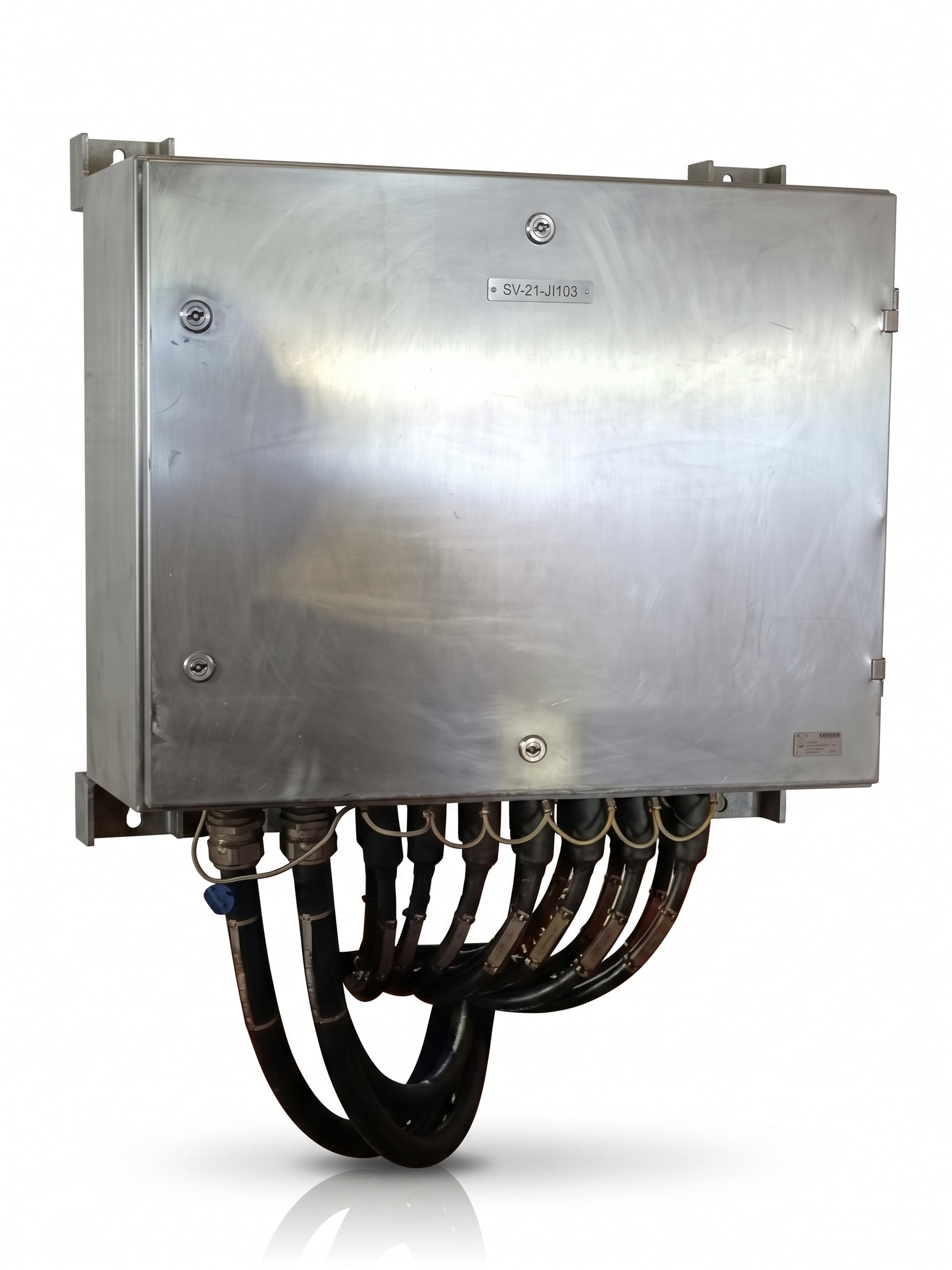

The BARTEC ESI 07-56D2-6013 is a 600 x 760 x 210 mm explosion-proof Ex e stainless steel (316L) junction box configured for Zone 1 and Zone 21 hazardous area terminal connections. Featuring a hinged cover, IP66 protection, 300 pre-installed feed-through terminal blocks, and bottom gland plate entries, it offers heavy-duty power and control distribution for oil and gas operations.
A unique set of drawings will be developed for approval before actual construction.
| Country of Origin | Italy (IT) |
| ATEX Rating | Zone 1 Ex II 2G Ex eb IIC T6 Gb |
The BARTEC ESI 07-56D2-6013 is a high-performance Ex e explosion-proof junction and terminal box engineered to provide maximum safety and reliable electrical distribution in Zone 1 and Zone 21 hazardous areas. Measuring 600 mm x 760 mm x 210 mm, this enclosure is constructed from high-grade 316L stainless steel (V4A) to withstand aggressive, highly corrosive, and extreme environmental conditions commonly found in demanding offshore and onshore facilities.
Designed for field performance and efficient installation, this variant features a robust hinged cover execution frame with a bottom gland plate pre-punched for 16x M25 and 4x M40 entries. Pre-assembled with 300x 2.5 mm² feed-through terminal blocks, it delivers continuous protection under heavy mechanical and environmental loads with an IP66 rating across operating temperatures from -20°C to +40°C.
✅ ATEX and IECEx Zone 1 / 21 certified for global hazardous area compliance
✅ Certified Ex eb IIC T6 Gb (Gas) and IP66 rated for extreme ingress protection
✅ High-grade AISI 316L (1.4404) stainless steel construction with fixed SST nameplate
✅ Generous 600 mm x 760 mm x 210 mm enclosure dimensions with hinged cover
✅ Pre-installed with 300x 2.5 mm² Feed-Through Terminal Blocks
✅ Pre-punched bottom entries: 16x M25 and 4x M40 entry holes on bottom gland plate
✅ Certified for ambient operating temperatures ranging from -20°C to +40°C
✅ Includes internal earth/grounding connections and stainless steel mounting execution frame
✅ Mechanical impact energy resistance rated up to 7 Joules
🔹 Pre-Configured Terminal Box (07-56D2-6013): Includes 300x 2.5 mm² terminals, bottom gland plate, and pre-punched entries
🔹 Custom Entry & Gland Configuration: Custom punched entry arrangements available upon request
🔹 Optional Stainless Steel Cable Glands: Compatible with Ex e M25 and M40 cable glands
🔹 Surface Finish Upgrades: Standard brushed stainless steel with options for electro-polished or painted finishes
| Feature | Details |
|---|---|
| Product Model | BARTEC ESI Ex e Stainless Steel Junction Box (07-56D2-6013 / 07-56D1-60..) |
| Outer Dimensions | 600 mm x 760 mm x 210 mm |
| Enclosure Material | AISI 316L (1.4404 / V4A) Stainless Steel |
| Door / Cover Style | Hinged Cover with Execution Frame |
| Pre-Installed Terminals | 300x 2.5 mm² Feed-Through Terminal Blocks |
| Gland Plate & Cable Entries | Bottom Gland Plate: 16x Punched M25 Entries 4x Punched M40 Entries |
| Protection / Certification | Zone 1 / 21 ATEX / IECEx Ex II 2G Ex eb IIC T6 Gb |
| Ingress Protection Rating | IP66 (EN/IEC 60529) |
| Ambient Temperature Range | -20 °C to +40 °C |
| Mechanical Strength | Impact resistance up to 7 Joules |
| Nameplate | Stainless steel with black letters fixed with SST screws |
| Electrical Ratings | Rated insulation voltage max 1000 V / max. 690 A nominal current |
🔗 ATEX Certificate Zone 1 Ex II 2G Ex eb IIC T6 Gb
🔗 Ingress Protection: IP66. Protection against dust ingress and high-pressure water jets
🔗 Ambient Temperature Rating: Ta -20°C to +40°C
🔗 Certificate of Conformity: AISI 316L Stainless Steel for high corrosion resistance
🔗 Download Datasheet
🔹 Oil & Gas (Offshore Platforms, Refineries, Processing Plants)
🔹 Chemical & Petrochemical Plants
🔹 Mining & Harsh Industrial Facilities
🔹 Laboratories & Cleanrooms
🔹 Manufacturing & Heavy Industrial Processing
📦 1x BARTEC ESI Stainless Steel AISI 316L Enclosure (~600mm x 760mm x 210mm)
📦 1x Hinged Cover & Execution Frame
📦 1x SST Nameplate with SST Screws (Black Letters)
📦 1x Gland Plate (Bottom) with 16x M25 & 4x M40 Punched Entries
📦 300x 2.5 mm² Feed-Through Terminal Blocks (Pre-installed)
📦 1x Internal/External Grounding Kit & Documentation
📦 Lead Time: Approval drawings in 1 week; ships 6–8 weeks after drawing approval
📍 Shipping Terms: FCA Italy / Worldwide Expedited Options
💳 Payment Options: Net 30 Terms, Prepayment via Credit Card, Check, or ACH
🔗 BARTEC ESI Stainless Steel Junction Box Cover Variant (07-56B1)
🔗 BARTEC ComEx Local Control Stations
🔗 Hazardous Area Approved Ex e Cable Glands (M25 / M40)
What are the physical dimensions of this specific junction box?
This unit measures approximately 600 mm (W) x 760 mm (H) x 210 mm (D).
How many terminals and cable entries come pre-configured?
It comes pre-assembled with 300x 2.5 mm² feed-through terminal blocks and a bottom gland plate punched for 16x M25 and 4x M40 entries.
What is the ambient temperature rating for this model?
This specific Ex eb IIC T6 Gb configuration is certified for an ambient temperature range of -20°C to +40°C.
What is the estimated delivery lead time?
Approval drawings are provided within 1 week of order receipt, and shipment is made 6 to 8 weeks after drawing approval.
