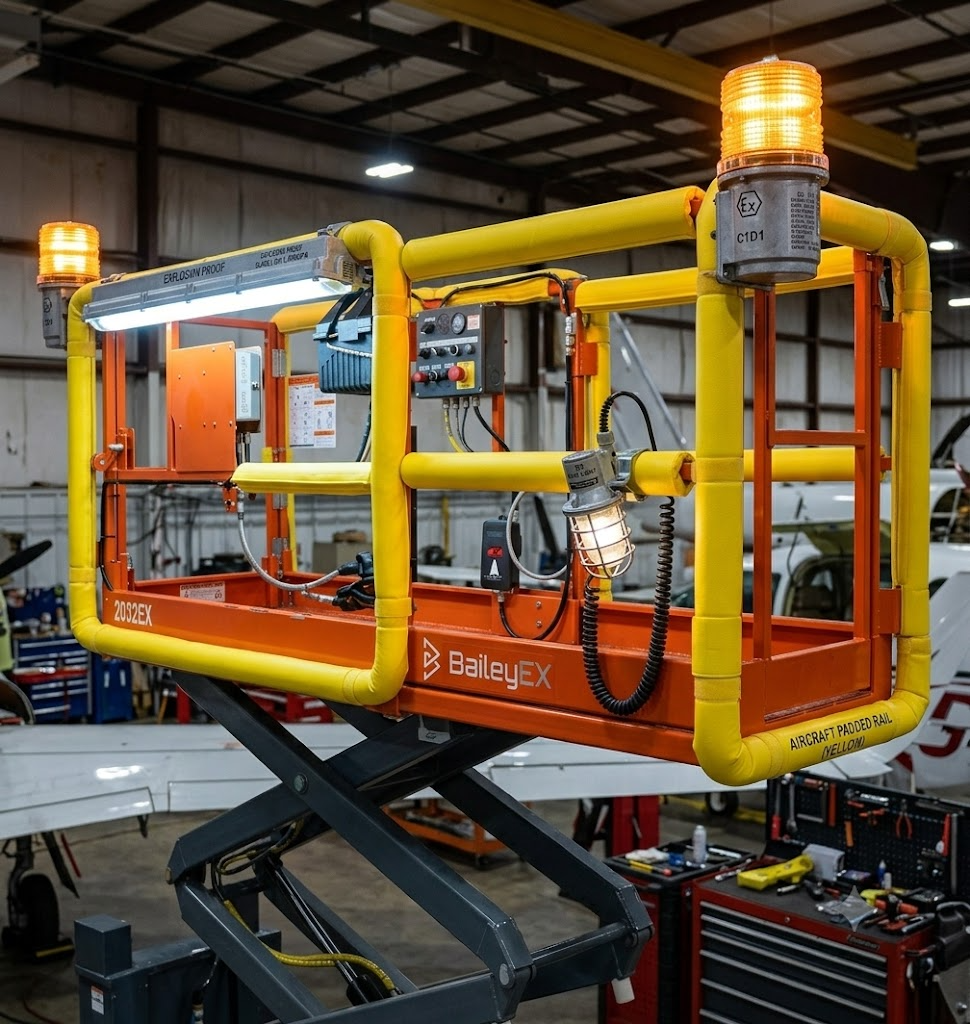

BaileyEX 2032EX Explosion-Proof LED Light Package

The BaileyEX 2032EX Explosion-Proof LED Light Package is a heavy-duty illumination system engineered specifically for hazardous locations where volatile gases, vapors, or liquids are present. Designed for integration with Class I, Division 1 elevated scissor platforms, this lighting solution provides critical workspace visibility while eliminating spark and surface heat ignition risks in high-consequence environments.

Built for demanding field operations, the system delivers high-efficiency LED illumination housed in rugged, copper-free cast aluminum and tempered glass. Whether operating inside aircraft hangars, paint spray booths, or offshore chemical facilities, operators benefit from shock-resistant fixtures, low power draw on vehicle systems, and seamless platform mounting engineered to handle industrial vibration and rough handling.

Key Features:

✅ Class I, Division 1, Group D Certified for explosive atmosphere compliance
✅ Heavy-duty cast-aluminum housing with impact-resistant tempered glass
✅ Vibration-resistant mounting engineered for scissor lift elevated movement
✅ Low-draw high-output LED technology optimizing vehicle battery power
✅ Universal guardrail clamp brackets designed for padded aircraft rails
✅ Integrated safety warning strobe/beacon capability
✅ Weatherproof and dust-tight NEMA/IP rated sealing
✅ Coiled SOOW power cord connection for flexible movement
✅ Fully compliant with UL 844 / UL 583 Type EX safety standards

📦 Package Options:

🔹 Standard Work Light Kit: Includes dual LED floodlight fixtures and mounting brackets
🔹 Work Light + Beacon Package: Includes dual work lights plus amber chassis/basket strobe beacon
🔹 Full Worksite Package: Includes dual LED linear/floodlights, warning beacon, and drop-hand lamp
🔹 Custom OEM Kit: Tailored wiring harness and bracketry for BaileyEX platforms[cite: 1]

BaileyEX 2032EX Explosion-Proof LED Light Package Technical Specifications:



Certifications & Compliance:

🔗 Class I, Division 1, Group D – Certified for atmospheres containing flammable gases/vapors[cite: 1]
🔗 UL 844 Listed – Electric Lighting Fixtures for Hazardous Locations
🔗 UL 583 Type EX Compliant – Safety standard for electric battery-powered industrial trucks[cite: 1]
🔗 NEMA 4X / IP66 – Dust-tight and washdown-protected enclosure rating
🔗 Download Datasheet

Applications of BaileyEX 2032EX Explosion-Proof LED Light Package:

🔹 Oil & Gas Refineries & Offshore Platforms
🔹 Chemical & Petrochemical Processing Plants
🔹 Aircraft Hangars & Aerospace Maintenance
🔹 Industrial Spray Paint Booths
🔹 Fuel Depots & Hazardous Material Storage

What’s in the Box?

📦 1x Primary LED Explosion-Proof Work Light Assembly
📦 1x Secondary LED Flood / Hand Lamp Fixture
📦 1x Class I, Div 1 Strobe Beacon
📦 1x Mounting Rail Clamp & Bracket Kit
📦 1x Heavy-Duty SOOW Power Cable Harness
📦 1x Ex-Rated Junction Hardware Box
📦 1x User & Safety Manual

Ordering & Shipping Details

📦 Lead Time: 10 –12 Weeks
📍 Shipping Terms: Worldwide / Freight Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 BaileyEX 2032EX Explosion-Proof Scissor Lift
🔗 Explosion-Proof Portable Hand Lamp C1D1
🔗 Class I Division 1 Warning Beacon Light

FAQs:

Can these lights be mounted directly onto padded aircraft rails?
Yes, the mounting bracket assembly is designed to fit padded guardrails, such as those found on the BaileyEX 2032EX lift.

Are these lights rated for Class I, Division 1 environments?
Yes, the entire fixture assembly meets Class I, Division 1, Group D standards for flammable vapor and gas locations.

Do these LED lights significantly drain the lift's 24V battery system?
No, the high-efficiency LED modules draw minimal wattage, preserving the lift battery runtime during extended work shifts.

Can I use these in wet or spray-down environments like paint booths?
Absolutely. The fixtures feature heavy-duty vapor-tight seals and NEMA 4X protection against direct water jets and chemicals.
