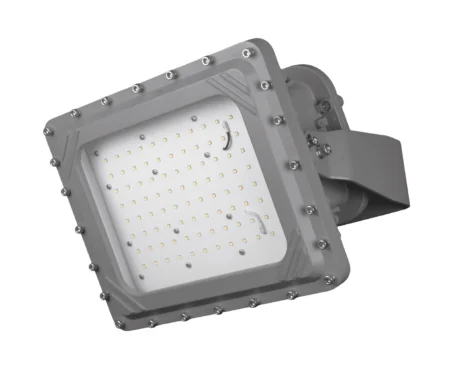

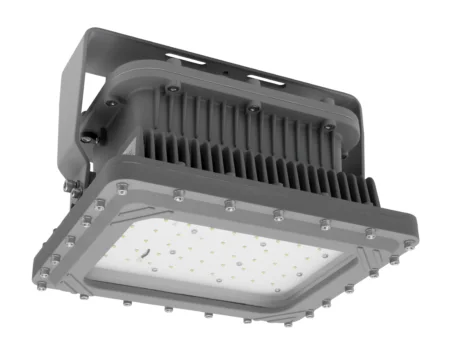

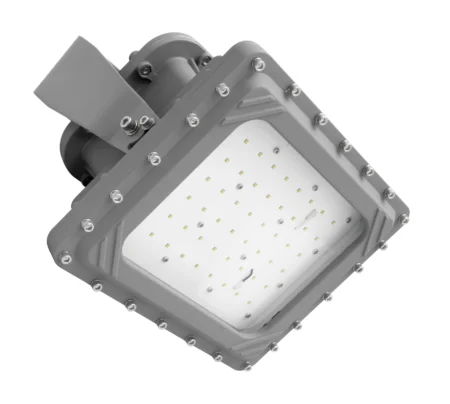

The Titan hazardous site LED FloodLight/High Bay is designed to withstand severe temperatures, dampness, dust, corrosion, vibration, and wetness in hazardous location environments. There is no reason why the Titan 150 Watt LED Flood Light should be rendered inoperable under unusual settings, such as places with flammable gas or vapor or areas with combustible dust, fibers, or flyings, as specified by the NEC.
Features:
- DLC Premium
- UL Class I Division 2, Group A, B, C, D
- UL Class II Division 2, Group F, G
- UL844 Hazardous Location
- UL 1598 Wet Location
- UUL1598A Marine
- UL 8750 LED Safety
- UL Listed
- CUL Listed
- IP66 Rated
- CSA 22.2 No. 137-M1981
- IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db RoHS Compliant
Construction
- Die-cast, copper-free aluminum housing
- Stainless steel hardware
- 3/4” NPT threaded conduit/wire access ports
- Weight - 80 & 100W: 33.1lbs (15kg); 150W: 36.4 lbs (16.5kg)
- RoHS Compliant
Optical System
- Tempered glass creates uniform light distribution and maximizes lumen output
- Diffused lens optional**
- Beam Angles: 25°, 60°, and 120° (NEMA Type 2, 4, and 6)
- CCT: 5000K, 3000K**, or 4000K**
- CRI: 70+
Electrical
- Input voltage of 100-240/277VAC or 347-480VAC**
- Input frequency of 50/60Hz
- Power Factor of ≥.90
- THD <20%
- 10kA surge protector
- Reported L70 hours >50,000
Environmental
- Ambient Operating Temperature -40°F (-40°C) ~ 122°F (50°C)
- C1D2 T4A at 122°F (50°C)
- C2D2 T4A at 122°F (50°C)
- Ambient Operating Humidity of 10%~90% RH
Finish
- RAL 7037 (Dusty Gray) polyester powder coat
Installation

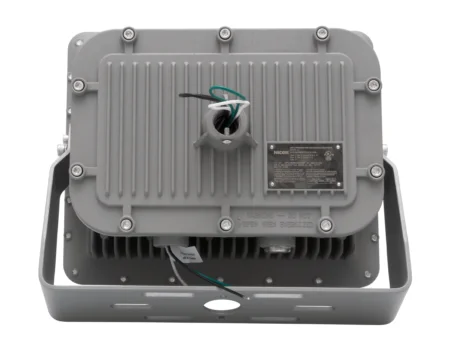

- Prewired with 2’ flying leads
- Allows wiring without opening power supply cover

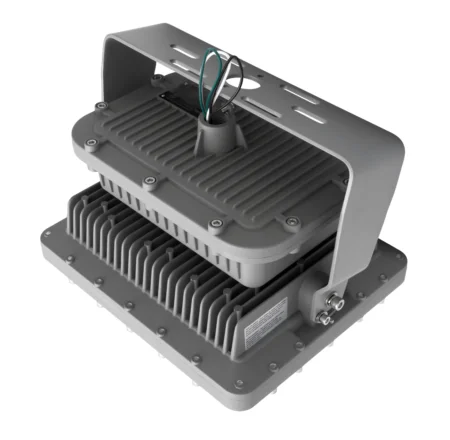

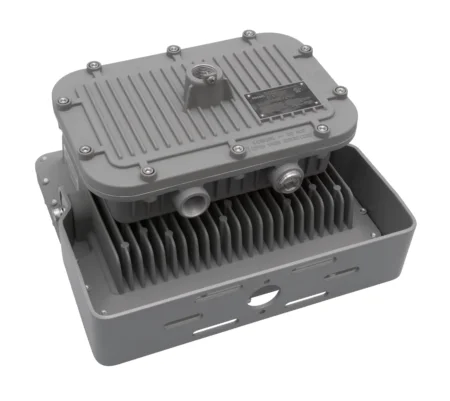

- Adjustable trunnion bracket for ceiling, wall, etc.
- Integrated 3/4” NPT threaded hub for pendant mount
- Pipe mount kit available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
Specifications
| Primary Component Material |
Die-Cast Aluminum (Copper Free) |
| Product Color |
Dusty Gray |
| Finish |
Polyester Powder Coat |
| Product Length (in) |
12.9 |
| Voltage |
100-240/277VAC |
| Wattage |
139.6 |
| Lumen Output |
17261 |
| Lumens Per Watt |
123.6 |
| Color Temperature (CCT) |
5000K |
| CRI |
70 |
| Beam Angle |
120° (+/- 10%) |
| Spacing Criteria |
1.29 |
| 120V Current (A) |
1.163 |
| 277V Current (A) |
0.504 |
| Power Factor |
≥.90 |
| Total Harmonic Distortion (%) |
<20% |
| Operating Temperature |
-40°F to 122°F (-40°C to 50°C) |
| Product Lifespan (Hours) |
>50,000 |
| Warranty (Years) |
1. 5 |
