ZONEZone 0 and Zone 1
Intrinsically Safe Cell Phones

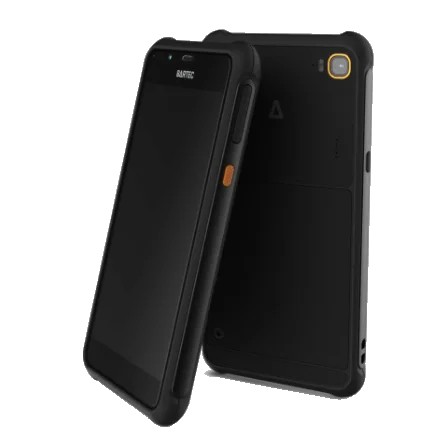

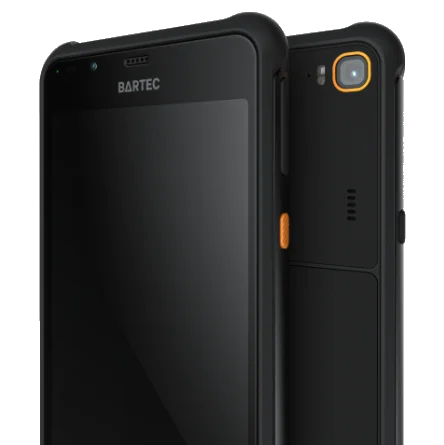

BARTEC SP9EX1 Explosion-Proof 5G Smartphone
$2,700.00In Stock
Your Global Authority In Hazardous Areas
Your Global Authority In Hazardous Areas
This product is no longer available.
It has been replaced by: BARTEC SP9EX1 Explosion-Proof 5G Smartphone
| Country of Origin | Germany (DE) |
| ATEX Safety / Zone | Zone 1 |
| Hazardous Area Rating | Class I Division 1, Groups A, B, C & D |
The Pixavi Phone is an intrinsically safe smartphone with IECEx and ATEX classification. Weighing in at 293 grams, being one of the lightest and slimmest Intrinsically Safe smartphone on the market, this device is designed to be resistant to dust and water. The Pixavi phone ensures safety, reliability, and top performance in hazardous areas with its highly ruggedized, yet elegant and pocket-friendly design.
| Technical data | |
| Processor | Qualcomm® Snapdragon 660 Octa-Core 2.2 GHz |
| Memory (RAM) | 4 GB LPDDR4X |
| Mass storage | 64 GB |
| Storage expansion | User accessible MicroSD slot; supports up to 128 GB SDXC (UHS-1) |
| GPU | Qualcomm® AdrenoTM 512 |
| SIM | Dual-SIM or Single-SIM + SD Card |
| Operating system | Android 11 |
| Google Mobile Services | Yes, access to Google apps, including Google Play Store |
| Security | Regular security updates |
| Size (W x L x H) | 164 mm x 84 mm x 14.5 mm (6.4 inch x 3.3 inch x 0.57 inch) |
| Weight (with battery) | 293 g (0.64 lb) |
| Display | 5.5'' AMOLED Display |
| Resolution | 1920 x 1080 Pixel; 400 ppi |
| Front glass | Corning Gorilla glass |
| Touch function | Capactive Touch |
| Usability | Stylus, bare or gloved fingertip input |
| Battery | Lithium-ion battery 3.8 V/3.200 mAh (12.16 Wh); Must only be changed and charged outside hazardous areas. |
| Notifications | Audible tone: multi-color LEDs; vibration |
| Voice & Audio | Two microphones; Vibrate alert; Speaker; Bluetooth wireless headset support, High quality speakerphone; Cellular circuit switch voice; HD Voice |
| Buttons | 1x on/off button, 1x programmable function button and 2x volume buttons (+/-) |
| Camera | Back Camera: Video Recording 4K UHD; Snapshot 12MP; Slow Motion Video 120FPS; Zoom Digital 8x; Horizontal FOV 65.87; Vertical FOV 51.82; Auto Focus PDAF; Focal Length 4.36; F Number 1.8; Supports barcode capture |
| Front Camera: Video Recording HD 1080P; Snapshot 8MP; Zoom Digital 8x; Horizontal FOV 68.8; Vertical FOV 54.37; Auto Focus Fixed; Focal Length 2.671; F Number 2.2; Supports barcode capture | |
| NFC | supported standards: NFCA (ISO14443-3A) NFCB (ISO14443-3B) NFCF (JIS X 6319-4) IsoDep (ISO 14443-4) NFC Forum Tag Types 1, 2, 3, 4, 5 ISO 15693 (NDEF formatted) MIFARE Classic MIFARE Ultralight The NFC antenna is in the battery |
| Cellular Frequency Band Version EU, UK and AU | – GSM 850/900/1800/1900MHz Peak transmit power: 33 dBm |
| –UMTS B1/B2/B4/B5/B8 Peak transmit power: 24 dBm | |
| –LTE B1, B2, B3, B4, B5, B7, B8, B20, B28, B38, B39, B40, B41 Peak transmit power: 23 dBm | |
| Cellular Frequency Band Version US | –UMTS B2/B4/B5 Peak transmit power: 24 dBm |
| –LTE B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B41, B66, B71 Peak transmit power: 23 dBm | |
| VoLTE / VoWiFi | Yes (Carrier dependent) |
| WiFi | WiFi 5 (2.4/5 GHz 802.11a/b/g/n/ac) Radio frequency / Peak transmit power: 2402-2482 MHz / 16 dBm 5180-5825 MHz / 15 dBm |
| Bluetooth | Bluetooth 5.0 and BLE Radio frequency / Peak transmit power: 2402-2480 MHz / 10 dBm |
| GNSS | GPS, Galileo, GLONASS and Beidou |
| External I/O | Magnetic USB 2.0 High Speed (Client) Must only be used outside hazardous areas. |
| Scope of delivery | Pixavi Phone |
| Battery | |
| Screen protector | |
| Charger | |
| Charging Cable | |
| Battery Tool | |
| SIM/SD Tray Ejector Tool | |
| Quick Start Guide (EN) |
