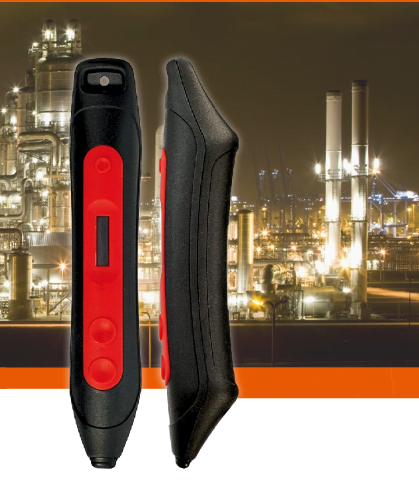

Bartec RFID Reader X IS

You can scan NFC/RFID tags in difficult-to-reach places with the Bartec RFID Reader X IS. When using a tag reader, you may read data from the OLED screen, send data via Bluetooth, or retrieve data from the tag's internal memory through USB.

When using the Bartec RFID Reader X, here are some important safety tips:

• All gaskets must be present and working to provide IP protection. The two sections of the housing must not be separated by a wide gap in width.
• The device may only be charged outside ex-hazardous areas using the USB cable with isafe Protector or other equipment approved by Bartec GmbH.
• USB-connections to other equipment are only allowed outside ex-hazardous areas using the USB cable with isafe Protector or other equipment approved by BARTEC Gmb.
• The device may be charged only at temperatures between 5 °C ... 35 °C
• The device must not be exposed to abrasive acids or bases.
• The device must not be taken into Zones 0 or 20
• Only accessories approved by BARTEC GmbH may be used

Features:

• ATEX Zone 1/21
• IECEx
• Bluetooth 4.0 LE
• The capacity of battery for 1000 Bluetooth readings
• Supported RFID standards: LF, HF, and UHF
• Ambient temperature: -20 °C to +60 °C
• Dimensions: 190 mm x 30 mm x 35 mm
• Weight: 130 g

Specifications:

Rating	Zone 1/21
Protection class	IP 64
Dimensions	190 mm x 30 mm x 35 mm
Weight	130 g
Display	OLED, 4 rows
Interface	Bluetooth 4.0 LE
Memory	1000 readings (UID + date + time)
Bluetooth	4.0 LE
Supported RFID standards	LF, HF and UHF

Certifications:

• Certification English
• Certification German
• IECEx Certification English

Resources:

• English Datasheet
• German Datasheet
• Portuguese Datasheet
• Spanish Datasheet
• French Datasheet
• Russian Datasheet
• Manual English
• Declaration of Conformity - English
• Declaration of Conformity - German
