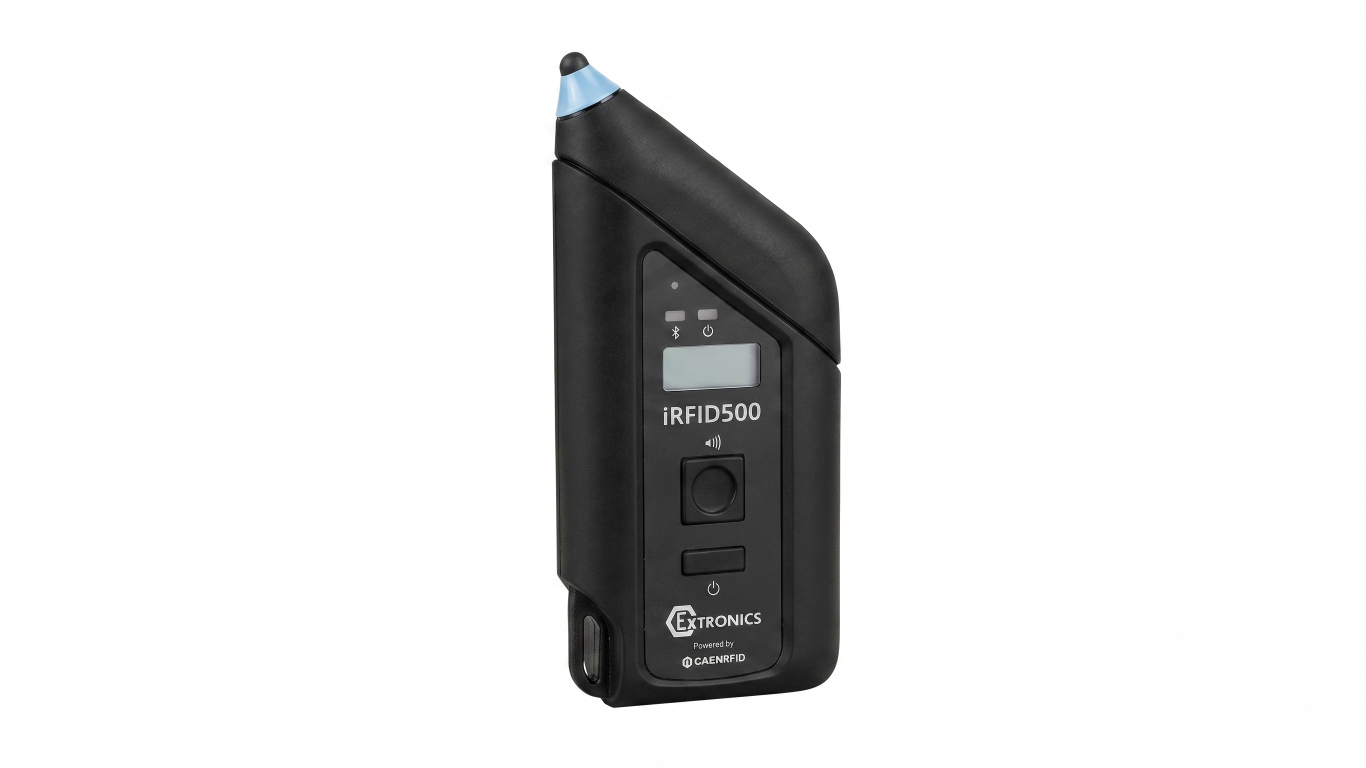

Extronics iRFID500 Handheld Bluetooth UHF RFID Reader

The Extronics iRFID500 is an ultra-rugged, lightweight handheld passive UHF RFID reader designed to deliver efficient, streamlined asset tracking and data collection in the world's most demanding industrial and hazardous environments. Certified for global explosive atmospheres, including ATEX, IECEx, and Class I, II, III Division 1 & 2 environments, it empowers operators in oil & gas, chemical plants, and heavy manufacturing to safely capture critical tag data where standard equipment cannot operate.

Engineered with proven CAEN RFID technology, the iRFID500 operates seamlessly either in standalone mode—storing thousands of reads in internal memory—or paired via Class 2 Bluetooth to smart tablet and smartphone devices running Android, Windows, or Apple OS. Featuring a high-efficiency battery delivering over 12 hours of continuous operation, an intuitive LCD, and tactile two-button controls, it provides instant visual, audible, and vibration feedback to ensure seamless field usability even when wearing heavy work gloves.

Key Features:

✅ ATEX/IECEx Zone 0, 1, 2, 21, 22, M1 & Class I, II, III Div 1 / Div 2 Certified
✅ Compatible with Windows, Android, and Apple iOS platforms
✅ IP65 Ingress Protection & ruggedized housing for extreme durability
✅ Bluetooth 2.1 + EDR (Class 2, 10m range) & Micro-USB connectivity
✅ Integrated LCD Alphanumeric Display (8 characters x 2 lines) with Dual LEDs
✅ Built-in internal clock for automatic time-stamping of tag reads
✅ Long-life battery providing >12 hours of active Bluetooth operation
✅ Audio buzzer & vibration feedback for reliable tag confirmation
✅ Compact 150g lightweight design with ergonomic 2-button control



Extronics iRFID500 Technical Specifications:

Feature	Details
Product Name	Extronics iRFID500 Handheld UHF RFID Reader
Hazardous Area Certifications	ATEX & IECEx Zone 0, 1, 2, 21, 22, M1 Mining cMETus Class I, II, III Div 1 & Div 2
ATEX/IECEx Marking	II 1G Ex ia IIC T4 Ga, II 2D Ex ib IIIC T135°C Db I M1 Ex ia I Ma
North American Marking	Class I Div 1 Groups A-D; Class II, III Div 2 Groups F-G
Operating Frequency	ETSI: 865.6–867.6 MHz / FCC: 902–928 MHz
RF Power Output	0 to 200 mW
Read Range	0 to 1 meter (tag dependent)
Tag Protocol Compliance	ISO 18000-6C / EPC C1G2
Operating System Compatibility	Android, Windows, Apple iOS, HID Profile, Virtual COM Port
Wireless Connectivity	Bluetooth Class 2 (2.1 + EDR), 10-meter range
Data Connector	Micro-USB
Memory Capacity	Stores 48K to 4096 EPC Codes
Internal Clock	Integrated for automatic date & time stamping of reads
Battery Life	>12 hours continuous operation (Bluetooth mode reading thousands of tags)
Display & Controls	LCD Alphanumeric Display (8 chars x 2 lines) 2 buttons (Power & Trigger/Confirm)
Status Indicators	2 LEDs (Power Level & Comm Status) Audio Buzzer, Vibration Motor
Ingress Protection Rating	IP65
Operating Temperature	-20°C to +55°C (-4°F to +131°F)
Dimensions	128 mm x 59 mm x 22 mm (5.04" x 2.32" x 0.87")
Weight	150 g (0.33 lbs)

Certifications & Compliance:

🔗 ATEX Certificate Zone 0, 1, 2, 21, 22, M1 – Ex ia IIC T4 Ga / Ex ib IIIC T135°C Db / Ex ia I Ma
🔗 IECEx Certificate Ex ia IIC T4 Ga and Ex ia I Ma | Ex ia III C T135°C Da | Ta = -20°C to +55°C
🔗 cMETus North America – Class I Div 1 Groups A-D / Class II, III Div 2 Groups F-G
🔗 Operating Temperature – Rated for safe operation from -20°C to +55°C (-4°F to +131°F)
🔗 Download Datasheet

Applications of Extronics iRFID500:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x iRFID500 UHF RFID Reader
📦 1x Integrated Rechargeable Battery
📦 1x USB Charger / Data Cable
📦 1x Wrist Lanyard (Demonstration Kit)
📦 1x Selection of Passive UHF RFID Tags (Demonstration Kit)
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 6 - 8 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms



FAQs:

Is the Extronics iRFID500 compatible with my existing mobile devices?
The iRFID500 is cross-compatible with Android, Windows, and Apple iOS platforms via Bluetooth or HID profile connection.

What hazardous locations can this RFID reader be used in?
It is certified for ATEX/IECEx Zones 0, 1, 2, 21, 22, M1 mining, and US/Canada Class I, II, III, Division 1 and Division 2.

How long does the battery last during field operations?
The built-in battery provides over 12 hours of continuous operation while connected via Bluetooth, reading thousands of tags.

Can the iRFID500 operate without a connected tablet or smartphone?
Yes, it can function as a standalone device, storing between 48K and 4096 EPC codes with internal time-stamping before syncing data via USB or Bluetooth.
