Description

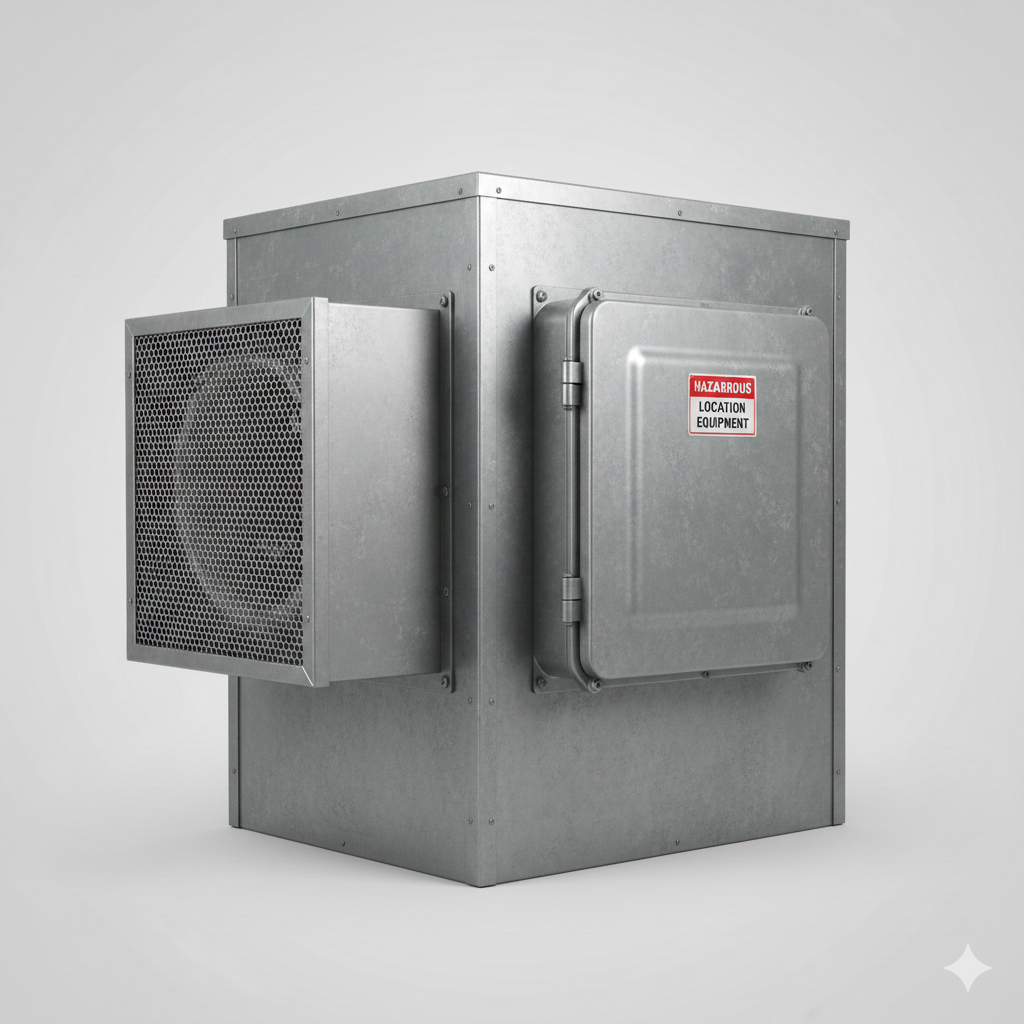

Bebco HVAC 1.5 Ton Wall Mount Air Conditioner (Class I Division 1)
The Bebco HVAC 1.5 Ton Wall Mount unit is a premier hazardous and industrial climate control solution designed specifically for the most volatile environments. Certified for Class I Division 1, Groups C & D, this system provides essential cooling to sensitive equipment and personnel in areas where flammable gases or vapors are consistently present. It serves as a critical line of defense in maintaining operational integrity within oil and gas, chemical, and industrial processing facilities.
This heavy-duty HVAC system delivers 18,000 BTUH of nominal cooling capacity using environmentally friendly R410a refrigerant. Built for longevity, the unit features galvanized steel cabinet construction with specialized factory coatings, stainless steel hardware, and a NEMA 7 rated controls enclosure to withstand corrosive atmospheres. Advanced protections, including anti-short cycle compressor protection and high/low refrigerant pressure shutdowns, ensure reliable performance and minimal downtime in the field.
Key Features:
✅ Class I Division 1, Groups C & D (Interior & Exterior Construction)
✅ Self-Declared HVAC System Certification (ETL Third Party Available)
✅ 1.5 Ton / 18,000 BTUH Nominal Cooling Capacity
✅ NEMA 7 Rated Controls Enclosure
✅ Division 1 Rated Evaporator and Condenser Motors
✅ Non-sparking Condenser and Evaporator Fans
✅ Stainless Steel Fresh Air Intake Hood with Filter and Manual Damper
✅ Smart Return Air Filter Grille Assembly (SGA) with NEMA 4X Hinges
✅ Mechanical Thermostat for use with Intrinsically Safe Circuits
📦 Package Options:
🔹 Standard Unit: 208/230V, 1 Phase, 60Hz Configuration
🔹 Coating Options: Factory-coated Galvanized Steel Cabinetry
🔹 Filter Options: Pleated return air filter with stainless steel grille
🔹 Certification Upgrade: ETL Third Party Certification available upon request
Bebco HVAC 1.5 Ton Technical Specifications:
| Feature | Details |
|---|---|
| Model Number | EC-WAC-S01.5-N-LH1W-N-A-11-002H-01X-N-N-AXAXEX-B1X5X-N |
| Cooling Capacity | 1.5 Ton / 18,000 BTUH |
| Hazardous Rating | Class I Division 1, Groups C & D, T3 |
| Voltage | 208/230V / 1 Phase / 60Hz |
| Required Circuit | 20 AMP Circuit Breaker |
| Refrigerant | R410a |
| Cabinet Material | Factory-Coated Galvanized Steel |
| Hardware | Stainless Steel |
| Enclosure Rating | NEMA 7 (Controls) / NEMA 4X (Filter Hinges) |
| Motors | Division 1 Rated Evaporator and Condenser Motors |
| Fan Type | Non-sparking Condenser and Evaporator Fans |
| Protection | Anti-Short Cycle, High/Low Pressure Shutdown, Low Ambient Control |
| Lead Time | 14-16 Weeks ARAD |
Certifications & Compliance:
🔗 Class I Division 1, Groups C & D – Certified for hazardous locations involving flammable gases
🔗 NEMA 7 – Explosion-proof enclosure for control components
🔗 NEMA 4X – Corrosion-resistant hinges for filter grille assembly
🔗 T3 Temperature Rating – Thermal safety compliance for hazardous atmospheres
🔗 Download Datasheet
Applications of Bebco HVAC 1.5 Ton:
🔹 Oil & Gas Refineries
🔹 Chemical Processing Plants
🔹 Offshore Platforms
🔹 Hazardous Material Storage
🔹 Industrial Manufacturing
What’s in the Box?
📦 1x 1.5 Ton Wall Mount HVAC Unit
📦 1x Stainless Steel Fresh Air Intake Hood
📦 1x Smart Return Air Filter Grille Assembly (SGA)
📦 1x Pleated Return Air Filter
📦 1x Mechanical Thermostat
📦 1x Installation Documentation & Technical Bulletin
Ordering & Shipping Details
📦 Lead Time: Estimated 14-16 Weeks ARAD (After Receipt of Approved Drawings)
📍 Shipping Terms: EXW – Houston, TX
💳 Payment Options: Credit Card, PayPal, and Net 30 terms (available upon credit approval and successful reference verification).
Related Products:
🔗 [Bebco 2.0 Ton C1D1 Wall Mount Unit]
🔗 [Explosion Proof Thermostats]
🔗 [Intrinsically Safe Control Panels]
FAQs:
What is the electrical requirement for this unit?
The unit operates on 208/230V, single-phase, 60Hz, and requires a 20 AMP circuit breaker.
Is third-party certification available?
While the unit is currently Self-Declared, ETL third-party certification can be provided for an additional cost.
What are the primary construction materials?
The unit features a galvanized steel cabinet with factory coatings and stainless steel hardware for superior corrosion resistance.
