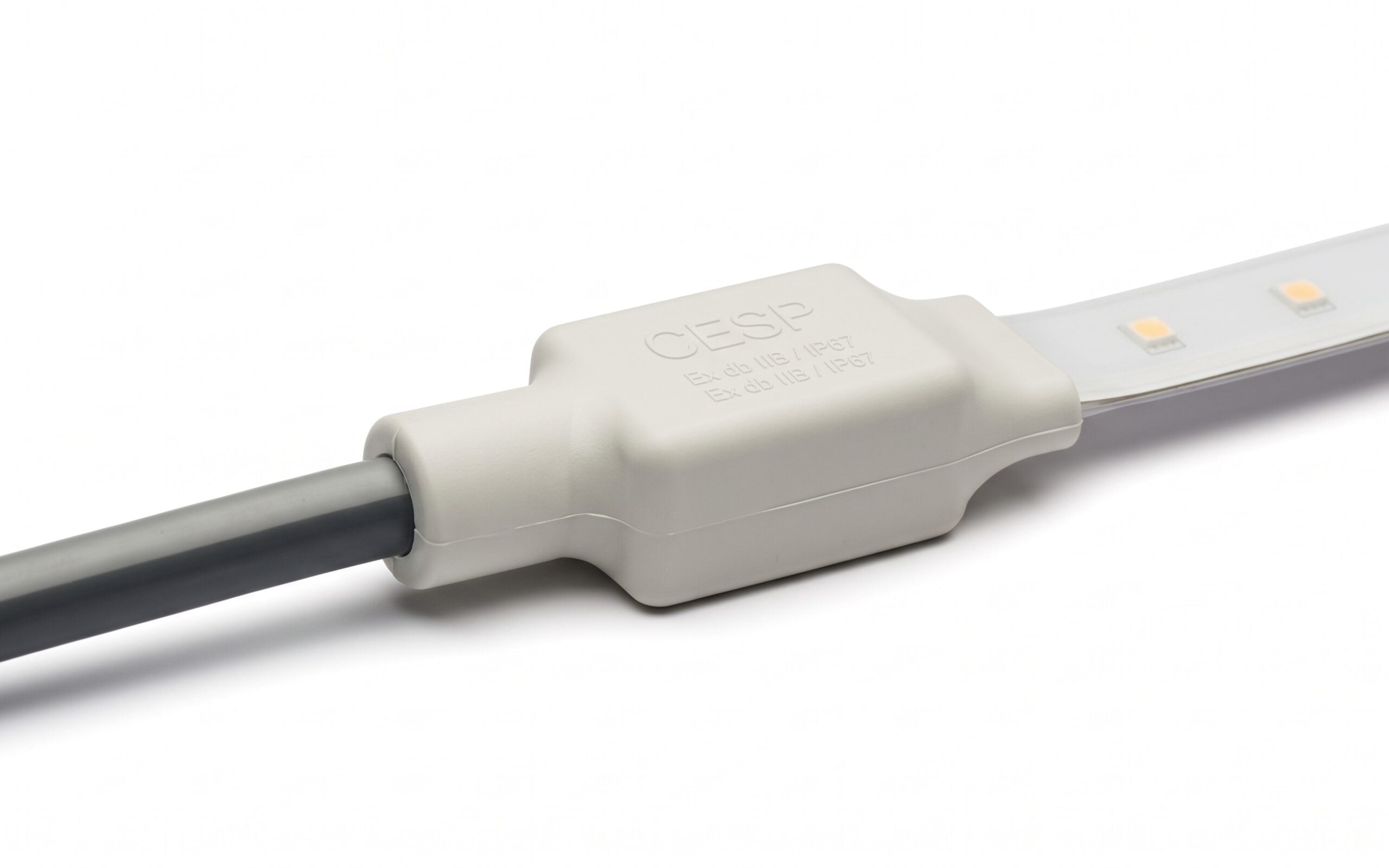

The CES-EX-LP-A-C1 Injection-Molded Top-End Front Feed Connector is an ATEX Zone 1/21 and Zone 2/22 certified power connection solution engineered specifically for the CES-EX-LP LED Flexible Strip Light Series. Featuring a factory-sealed IP65/IP67 injection-molded design and pre-installed feed cable, it ensures reliable, liquid-tight power supply integration in demanding oil & gas, refinery, and petrochemical environments.
| Country of Origin | United States (US) |
| ATEX Rating | II 2G Ex mb op is IIC T4 Gb (Zone 1 & Zone 2) | II 2D Ex mb op is IIIC T135°C Db (Zone 21 & Zone 22) |
The CES-EX-LP-A-C1 Injection-Molded Top-End Front Feed Connector is a heavy-duty hazardous-area power connection component specifically built for the CES-EX-LP Series Explosion-Proof LED Flexible Strip Light. Engineered for high-risk industrial sites such as oil refineries, offshore rigs, gas processing plants, and underground mines, this connector delivers a seamless, factory-sealed bridge between the LED strip and its power source.
Designed with seamless injection-molded silicone technology, the CES-EX-LP-A-C1 provides an IP65/IP67 ingress protection rating, shielding power terminations from dust, high-pressure water jets, and corrosive chemical vapors. Its top-end entry configuration and pre-installed feed cable allow fast, safe, and reliable installation while maintaining full ATEX explosion-proof integrity across extreme operating temperatures (-40°C to +80°C).
✅ ATEX System Certification: Compliant for Zone 1/21 and Zone 2/22 hazardous gas and combustible dust environments (II 2G Ex mb op is IIC T4 Gb / II 2D Ex mb op is IIIC T135°C Db)
✅ Multi-Voltage Compatibility: Supports 24V, 36V, and 48V AC/DC power feeds
✅ Ingress Protection: Factory injection-molded IP65 / IP67 waterproof and dust-tight seal
✅ Pre-Installed Cable: Factory-integrated front feed power cable for direct terminal box or driver connection
✅ Top-End Cable Entry: Space-saving top feed design engineered for tight installation pathways
✅ Industrial Chemical & Mechanical Resistance: Heavy-duty silicone body built for extreme field durability
✅ Extended Temperature Range: Rated for operation between -40°C and +80°C
✅ Direct Fitment: Designed exclusively for CES-EX-LP explosion-proof flexible strip lights (20mm W x 12.5mm H)
✅ High Precision: Molded tolerance within ±0.5mm for consistent Ex-d/Ex-m sealing
🔹 CES-EX-LP-A-C1 (Standard Cable Length): Single top-end front connector with pre-installed feed cable
🔹 CES-EX-LP-A-C1 + End Cap Set: Top-end front connector with matching injection-molded Ex end cap
🔹 Complete Wiring Kit: Front connector, pre-installed cable, and Ex junction box mounting hardware
🔹 Custom Cable Lead Version: Top-end connector factory-fitted with extended-length power feed cable
| Feature | Details |
|---|---|
| Product Model | CES-EX-LP-A-C1 Injection-Molded Front Connector (Top End) |
| Component Type | Power Feed Entry Connector for Ex Flexible Strip Light |
| Compatible Series | CES-EX-LP Series Explosion-Proof LED Flexible Strip Light |
| Hazardous Classifications | ATEX Zone 1, Zone 2 (Gas) & Zone 21, Zone 22 (Dust) |
| ATEX Marking | II 2G Ex mb op is IIC T4 Gb / II 2D Ex mb op is IIIC T135°C Db |
| Certificates & Standards | TÜV IT 24 ATEX 0179 X | EN IEC 60079-0, 60079-18, 60079-28 |
| Ingress Protection Rating | IP65 / IP67 (Dustproof & Waterproof) |
| Operating Temperature | -40°C to +80°C (-40°F to +176°F) |
| Voltage Range | 24V AC/DC, 36V AC/DC, 48V AC/DC |
| Connector Body Dimensions | Width 20 mm x Height 12.5 mm (Dimensional tolerance: ±0.5 mm) |
| Cable Type | Pre-installed industrial front feed power cable |
| Construction Material | High-durability factory injection-molded silicone encapsulation |
| Installation Orientations | Surface or Pendant Mounted LED Strip Integration |
🔗TUV-CERTIFICATE-TuV-IT-24-ATEX Gas Certification – II 2G Ex mb op is IIC T4 Gb (Zone 1 & Zone 2)
🔗 ATEX Dust Certification – II 2D Ex mb op is IIIC T135°C Db (Zone 21 & Zone 22)
🔗 Harmonized Standards – EN IEC 60079-0, EN IEC 60079-18, EN IEC 60079-28 compliance
🔗 Ingress Protection – IP65 / IP67 dustproof and waterproof rated
🔗 Download Datasheet
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
📦 1x CES-EX-LP-A-C1 Injection-Molded Top-End Front Connector
📦 1x Factory Pre-Installed Power Feed Cable
📦 1x Integrated Silicone Sealing Assembly
📦 1x Installation & Compliance Guide
📦 Lead Time: 3 – 4 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
🔗 CES-EX-LP Series Explosion-Proof LED Flexible Strip Light
🔗 CES-EX-LP Injection-Molded End Cap
🔗 CES-EX-LP-A-B1 / B2 Explosion-Proof Driver & Control Box
What is the CES-EX-LP-A-C1 front connector for?
The CES-EX-LP-A-C1 connects the CES-EX-LP explosion-proof flexible strip light directly to the power supply or explosion-proof control box via a pre-installed feed cable while maintaining IP67 liquid and gas sealing.
What is the difference between top-end and side feed connectors?
The top-end front connector routes the feed cable directly out of the top surface of the strip light profile, ideal for straight-line runs and installations where side clearance is limited.
Is the CES-EX-LP-A-C1 connector ATEX certified?
Yes, when integrated into the CES-EX-LP strip light system, it carries full ATEX certification for Zone 1/21 and Zone 2/22 hazardous locations.
What input voltages can be connected through this front connector?
It supports standard system operating voltages of 24V, 36V, and 48V AC or DC.
