CES-EX-LP Injection-Moulded End Cap

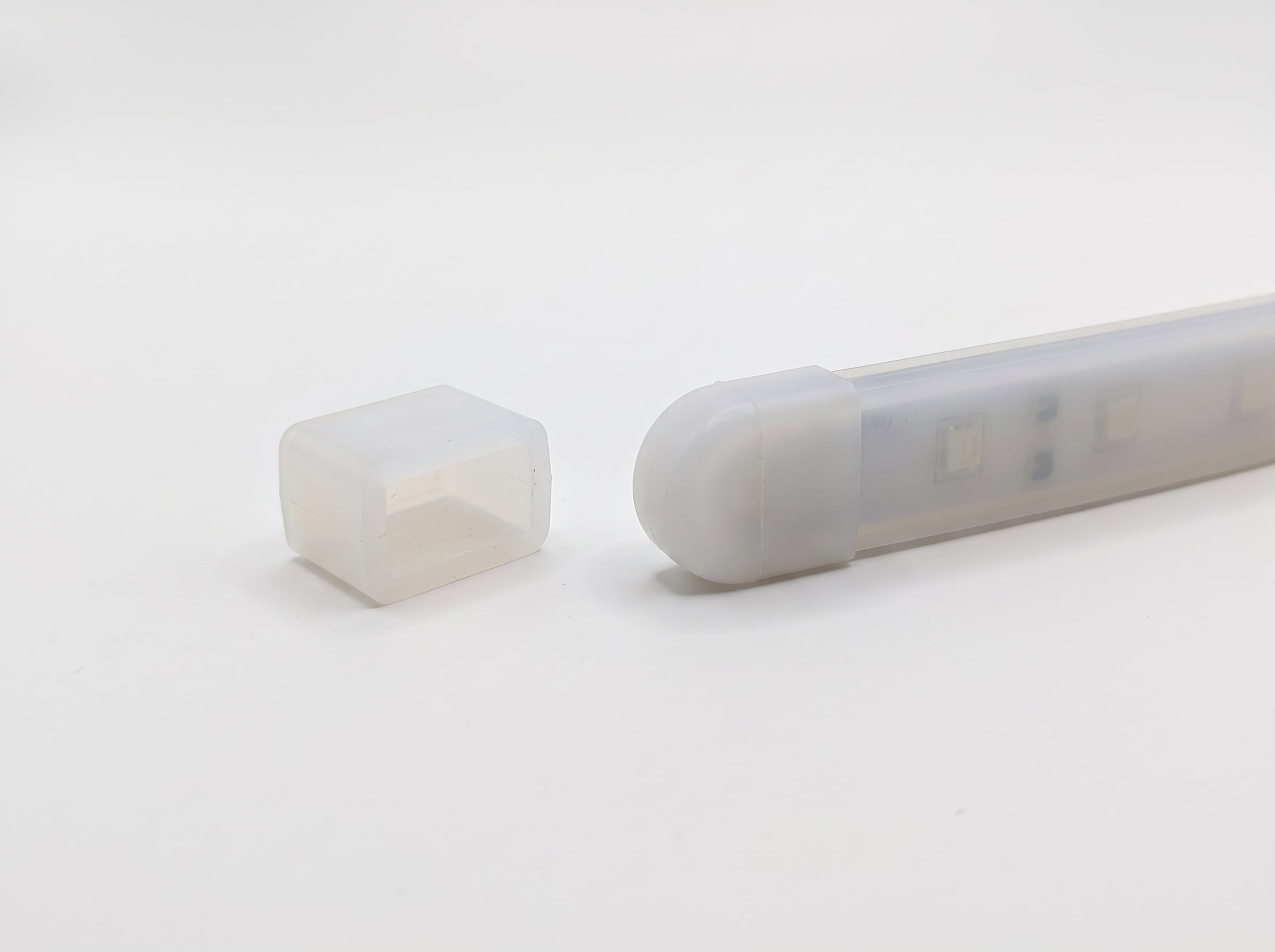

The CES-EX-LP Injection-Moulded End Cap is a critical safety termination component engineered specifically for the CES-EX-LP Series Explosion-Proof LED Flexible Strip Light. Designed for demanding industrial environments and hazardous locations (ATEX Zone 1/21 and Zone 2/22), this end cap provides a factory-grade seal to protect strip terminations from moisture, dust, and explosive gas or vapor ingress in oil refineries, offshore platforms, chemical processing facilities, and underground mines.

Constructed from high-grade, injection-molded flexible silicone, the end cap seamlessly matches the profile of the strip light (20mm W x 12.5mm H) to deliver complete IP67 ingress protection and IK10 impact resistance. Able to withstand extreme ambient temperatures from -40°C to +80°C as well as harsh chemical exposure, it guarantees long-term durability and maintains certified explosion-proof compliance across custom-cut or field-terminated LED flexible lighting runs.

Key Features:

✅ Injection-Molded Silicone Construction for Seamless Strip Profile Match
✅ IP67 Waterproof & Dustproof Ingress Protection
✅ ATEX Zone 1/21 & Zone 2/22 Hazardous Area System Compatibility
✅ IK10 Heavy Impact Resistance against Mechanical Shock
✅ Wide Operating Temperature Range (-40°C to +80°C)
✅ Precision Tolerance Fit (20mm W x 12.5mm H, ±0.5mm)
✅ UV, Oil, and Chemical Resistant Industrial Silicone Molding
✅ Maintains Encapsulated Explosion-Proof Protection Standards
✅ Fast, Secure Field Installation for Custom Strip Lengths

📦 Package Options:

🔹 Single End Cap: Standalone injection-molded silicone end cap for individual strip termination
🔹 5-Piece End Cap Pack: Multi-pack set for field installers and custom-cut lighting projects
🔹 Termination Kit: Includes 1x Injection-Moulded End Cap and 1x Injection-Moulded Front Feed Connector
🔹 Factory Pre-Installed Option: Custom-cut CES-EX-LP strip light delivered with factory-sealed end cap

CES-EX-LP Injection-Moulded End Cap Technical Specifications:

Feature	Details
Product Name	CES-EX-LP Injection-Moulded End Cap
Compatible Series	CES-EX-LP Explosion-Proof LED Flexible Strip Light
Material	Heavy-Duty Injection-Molded Silicone
Ingress Protection Rating	IP67 (Waterproof & Dustproof)
Impact Strength	IK10
Operating Temperature	-40°C to +80°C
System Hazardous Area Rating	ATEX Zone 1 / Zone 2 (Gas), Zone 21 / Zone 22 (Dust)
ATEX Gas Marking	II 2G Ex mb op is IIC T4 Gb
ATEX Dust Marking	II 2D Ex mb op is IIIC T135°C Db
Compliance Standards	EN IEC 60079-0, EN IEC 60079-18, EN IEC 60079-28
End Cap Width	20 mm
End Cap Height	12.5 mm
Dimension Tolerance	±0.5 mm
Resistance Features	UV-Resistant, Oil-Resistant, Chemical-Resistant, Flame-Retardant
Function	Seals and protects termination ends of flexible LED strip runs

Certifications & Compliance:

🔗 ATEX Certificate  – Compatible with II 2G Ex mb op is IIC T4 Gb / II 2D Ex mb op is IIIC T135°C Db
🔗 IP67 Ingress Protection – Complete protection against dust ingress and water immersion
🔗 IK10 Impact Resistance – Protects termination points against severe mechanical impacts
🔗 Standard Compliance – EN IEC 60079-0, EN IEC 60079-18, EN IEC 60079-28
🔗 Download Datasheet

Applications of CES-EX-LP Injection-Moulded End Cap:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x CES-EX-LP Injection-Moulded End Cap
📦 1x Technical Data Sheet & Installation Guide

Ordering & Shipping Details

📦 Lead Time: 1–3 Days (In Stock)
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 CES-EX-LP Explosion-Proof LED Flexible Strip Light
🔗 CES-EX-LP Injection-Moulded Front Power Connector
🔗 CES-EX-LP Explosion-Proof Driver Power Box

FAQs:

Is this end cap suitable for wet or outdoor washdown environments?
Yes, the injection-molded silicone end cap provides an IP67 waterproof and dustproof rating, creating a sealed end point resistant to high-pressure washdowns and weather exposure.

Can the injection-molded end cap be installed in the field?
Yes, it is designed to cleanly terminate field-cut lengths of the CES-EX-LP LED strip light while preserving system sealing and explosion-proof integrity.

What are the dimensions of the end cap?
The end cap cross-section measures 20mm in width and 12.5mm in height, matching the profile of the CES-EX-LP strip light with a manufacturing tolerance of ±0.5mm.

Is the end cap certified for Zone 1 and Zone 2 hazardous locations?
Yes, when installed properly on the CES-EX-LP strip light, it maintains the overall ATEX certification for Zone 1/21 and Zone 2/22 locations (Ex mb op is IIC T4 Gb / Ex mb op is IIIC T135°C Db).
