HLSW-PB20 Non-Metallic Explosion-Proof Switch C1D2/C2D2

The HLSW-PB20-PB.SG-3PSW-ESTP is a heavy-duty, non-metallic explosion-proof switch engineered for reliable motor and equipment control in hazardous Class I, Division 2 and Class II, Division 2 environments. Designed to withstand volatile industrial atmospheres, this compact station integrates high-performance switching components into a durable, corrosion-resistant housing ideal for petroleum refineries, chemical plants, and outdoor processing sites.

Built for extreme field dependability, the unit features a high-strength PA6 glass-reinforced anti-static housing with f1 UV protection and V-0 flame resistance. It operates efficiently across extreme ambient temperatures ranging from -50°C to +60°C. Equipped with silver alloy contacts, a 20A switching capacity up to 690V AC, and full silicone gasketing (NEMA 4X / IP66), it ensures long-term electrical conductivity and environmental protection during high-duty cycles.

Key Features:

✅ C1D2, C2D2, C3D1/D2, and ATEX Zone 1/21 rated for explosive hazardous locations
✅ 690V AC, 20A capacity, 2 HP rating with (2) NO & (2) NC contacts
✅ NEMA 3, 4, 4X, 12, 13 and IP66 ingress protection against water and dust
✅ High-strength PA6 glass-reinforced anti-static polycarbonate enclosure
✅ Green Start / Red Stop double push button + Red Mushroom-Head Emergency Stop
✅ 3-Position maintained contact selector switch for multi-mode control
✅ Extreme operating temperature range from -50°C to +60°C
✅ f1 UV-resistant and V-0 flame-retardant housing construction
✅ Standard DIN rail mount layout with (1) 1/2" NPT threaded wiring hub

📦 Package Options:

🔹 Standard Configuration: Fully assembled HLSW-PB20 switch unit with internal contact blocks and DIN rail mounting
🔹 Custom Hub/Enclosure Options: Specific wiring hub configurations, CAD files, or wiring schematics available upon request

HLSW-PB20 Non-Metallic Explosion Proof Switch C1D2/C2D2 Technical Specifications:

Feature	Details
Product ID	320701
Model / SKU	HLSW-PB20-PB.SG-3PSW-ESTP
Switch Type	Non-metallic Explosion-Proof Control Station
Class & Division Ratings	Class I, Division 2, Groups A, B, C, D; Class II Division 2, Groups E, F, G; Class III, Divisions 1 & 2
Zone & ATEX Ratings	Class I Zone 1 AEx de IIC T4/T5/T6 Gb Class II Zone 2 AEx tb IIIC T4/T5/T6 Db IP66 ATEX II 2 G Ex de IIC / II 2 D Ex tb IIIC
NEMA / IP Ratings	NEMA 3, 4, 4X, 12, 13; IP66 Ingress Protection
Dimensions	3.95" W x 5.47" H x 4.16" D
Electrical Rating	690V AC, 20A, 50-60Hz
Horsepower Rating	2 HP

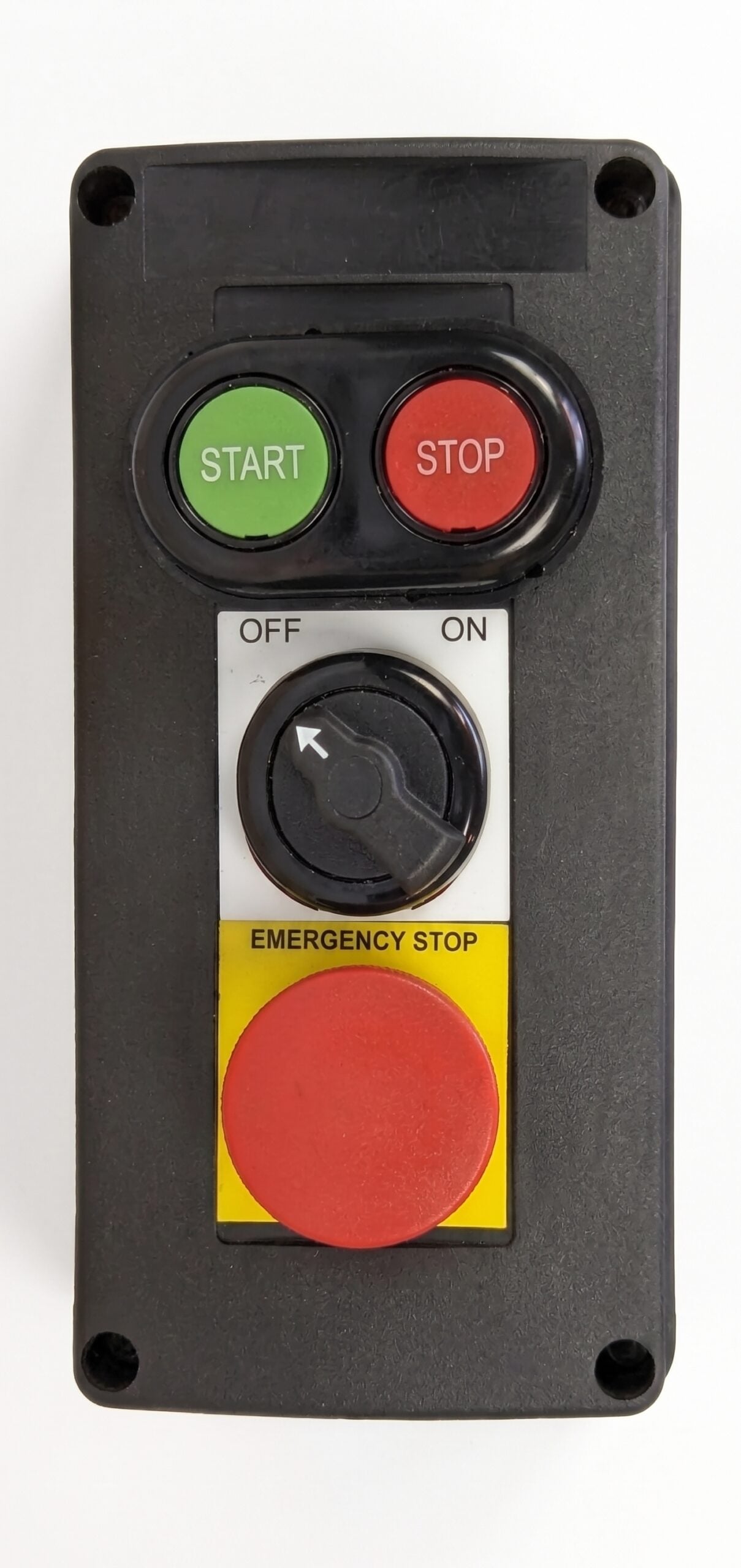

Push Buttons	Start/Stop Double Push Button (Green/Red) Red Mushroom Head Emergency Stop
Selector Switch	3-Position Maintained Contact
Contact Configuration	(2) Normally Open & (2) Normally Closed
Operating Temperature	-50°C to +60°C
Housing Material	Glass Reinforced Anti-static Polycarbonate (PA6)
Housing / Legend Plate	Black Housing / Silver Legend Plate
Flame & UV Ratings	UV Protection: f1; Flame Retardancy: V-0
Gasket Material	Silicone
Mounting Type	DIN Rail Mount
Wiring Hub	(1) 1/2" NPT Hub
Export Classification	EAR99

Certifications & Compliance:

🔗 Class I, Division 2, Groups A, B, C, D – Explosion-proof rating for flammable gas/vapor environments
🔗 Class II, Division 2, Groups E, F, G & Class III – Dust-ignition proof protection for combustible dusts and fibers
🔗 ATEX II 2 G Ex de IIC T4/T5/T6 Gb / II 2 D Ex tb IIIC T4/T5/T6 Db IP66 – International explosive atmosphere safety standards
🔗 NEMA 3, 4, 4X, 12, 13 & IP66 – Complete protection against corrosion, rain, hose-directed water, and dust
🔗 Download Datasheet

Applications of HLSW-PB20 Non-Metallic Explosion Proof Switch C1D2/C2D2:

🔹 Oil & Gas Refineries
🔹 Chemical Processing Plants
🔹 Petrochemical Facilities
🔹 Industrial Manufacturing & Grain Handling
🔹 Outdoor Hazardous Field Stations

What’s in the Box?

📦 1x HLSW-PB20 Explosion-Proof Control Switch Enclosure Assembly
📦 1x Integrated 3-Position Selector Switch
📦 1x Start/Stop Push Button Unit
📦 1x Mushroom Head Emergency Stop Switch
📦 1x Documentation & Specification Sheet Kit

Ordering & Shipping Details

📦 Lead Time: 3 - 4 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 Class 1 Division 2 Explosion-Proof Push Button Stations
🔗 ATEX / IECEx Zone 1 Control Stations & Switches
🔗 Hazardous Location Emergency Stop Control Boxes

FAQs:

What hazardous locations is the HLSW-PB20 certified for?
It is certified for Class I, Div 2 (Groups A-D), Class II, Div 2 (Groups E-G), Class III, as well as ATEX Zone 1/21 (II 2 G Ex de IIC T4/T5/T6 Gb and II 2 D Ex tb IIIC T4/T5/T6 Db).

What is the operating temperature range for this enclosure?
The switch is built for extreme climates and operates reliably in temperatures ranging from -50°C to +60°C.

What are the electrical ratings for this switch?
The unit supports voltages up to 690V AC with a 20A current rating and is rated for 2 HP motors.

Is the unit weather and corrosion-proof?
Yes, it is constructed from high-strength anti-static PA6 polycarbonate, features full silicone gasketing, and meets NEMA 4X and IP66 water/dust resistance standards.
