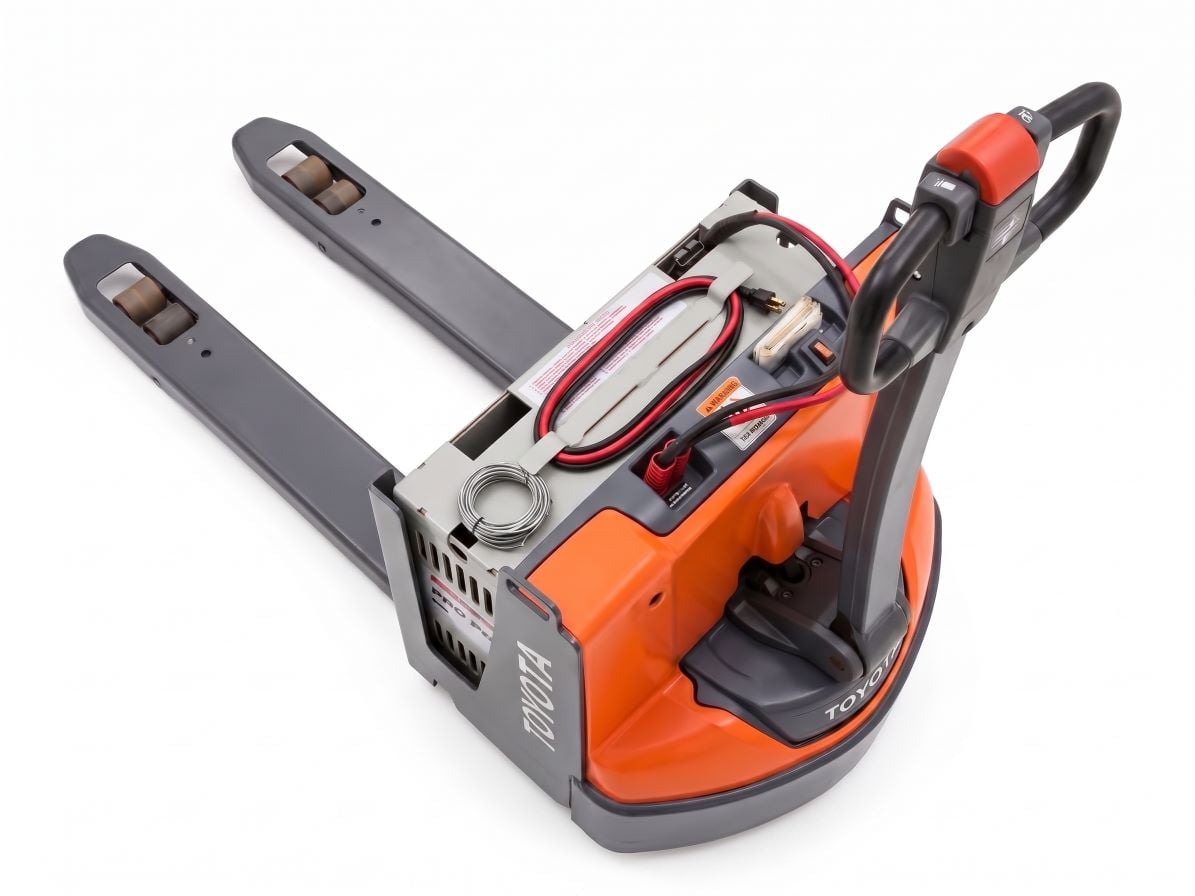

Toyota 8HBW23 Replacement Battery Pack (EE Rated)
UL Type "EE" Certification: Factory-certified under Underwriters Laboratories (UL)
$4,800.00In Stock
Your Global Authority In Hazardous Areas
Your Global Authority In Hazardous Areas
Your cart is empty.
Safety specifications not available for this product

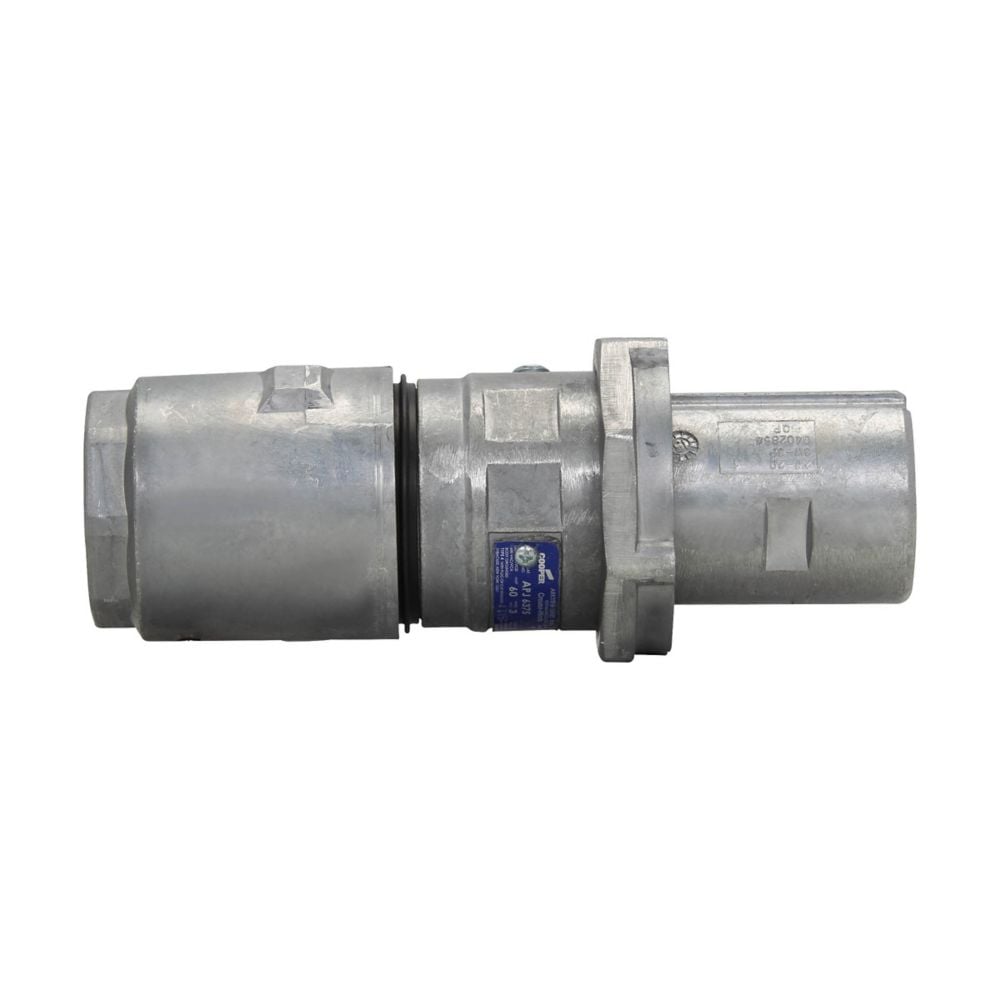

The Eaton Crouse-Hinds Arktite APJ15487 is a heavy-duty, copper-free aluminum 150A plug designed for reliable high-amperage power delivery in demanding industrial environments. Built to NEMA 4 standards, this 3-wire, 4-pole Style 2 metallic plug offers robust weatherproof protection and long-term durability for high-demand job sites.
| Country of Origin | United States (US) |
The Eaton Crouse-Hinds series Arktite APJ15487 plug delivers exceptional power distribution performance in rugged and demanding non-hazardous industrial environments. Engineered with a heavy-duty copper-free aluminum housing, this high-amperage plug ensures maximum resistance to physical impact, corrosion, and wear in harsh field conditions.
Designed for seamless operation across standard and specialized frequencies (50–400 Hz), the APJ15487 accommodates cable diameters ranging from 0.875" to 1.70". Its Style 2 grounding configuration and NEMA 4 rating provide dependable protection against dirt, rain, and hose-directed water, ensuring continuous uptime and operator safety on demanding industrial sites.
✅ Rated for Ordinary / Non-Hazardous Locations (NEC/CEC standards)
✅ High 150A, 600 Vac / 250 Vdc electrical rating
✅ Rugged NEMA 4 weather-resistant enclosure rating
✅ Wide frequency capability (50 Hz to 400 Hz)
✅ 3-Wire, 4-Pole (3W4P) Style 2 ground design
✅ Precision-engineered for 0.875" to 1.70" cable diameter capacity
✅ Constructed from lightweight, durable copper-free aluminum
🔹 Standard Unit: Eaton Crouse-Hinds Arktite APJ15487 Plug (Catalog No. APJ15487)
| Feature | Details |
|---|---|
| Product Name | Eaton Crouse-Hinds series Arktite APJ plug |
| Catalog Number | APJ15487 |
| UPC | 662276137332 |
| Area Classification | Ordinary / Non-Hazardous Locations |
| Standards | NEC / CEC |
| NEMA Rating | NEMA 4 |
| Amperage Rating | 150A |
| Voltage Rating | 600 Vac / 250 Vdc |
| Frequency Rating | 50 to 400 Hz |
| Configuration | Three-wire, four-pole (3W4P) |
| Grounding Type | Style 2 |
| Cable Diameter Range | 0.875" – 1.70" |
| Material | Copper-free aluminum |
| Product Dimensions (L x H x W) | 10.13 in x 4.13 in x 4.13 in |
| Product Weight | 4.6 lb |
🔗 Standard Compliance – NEC/CEC Certified
🔗 Enclosure Rating – NEMA 4 (Watertight and Dust-tight)
🔗 UL Certificate – Arktite Metallic Plugs, Receptacles, and Connectors
🔗 Download Datasheet
🔹 Heavy Manufacturing & Processing Plants
🔹 Industrial Power Generation & Utilities
🔹 Mining & Aggregates
🔹 Shipyards & Maritime Operations
🔹 Commercial Construction & High-Demand Sites
📦 1x Eaton Crouse-Hinds Arktite APJ15487 Plug
📦 1x Installation & Safety Instruction Sheet (IF 1564 / IF 352)
📦 Lead Time: 10 - 12 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

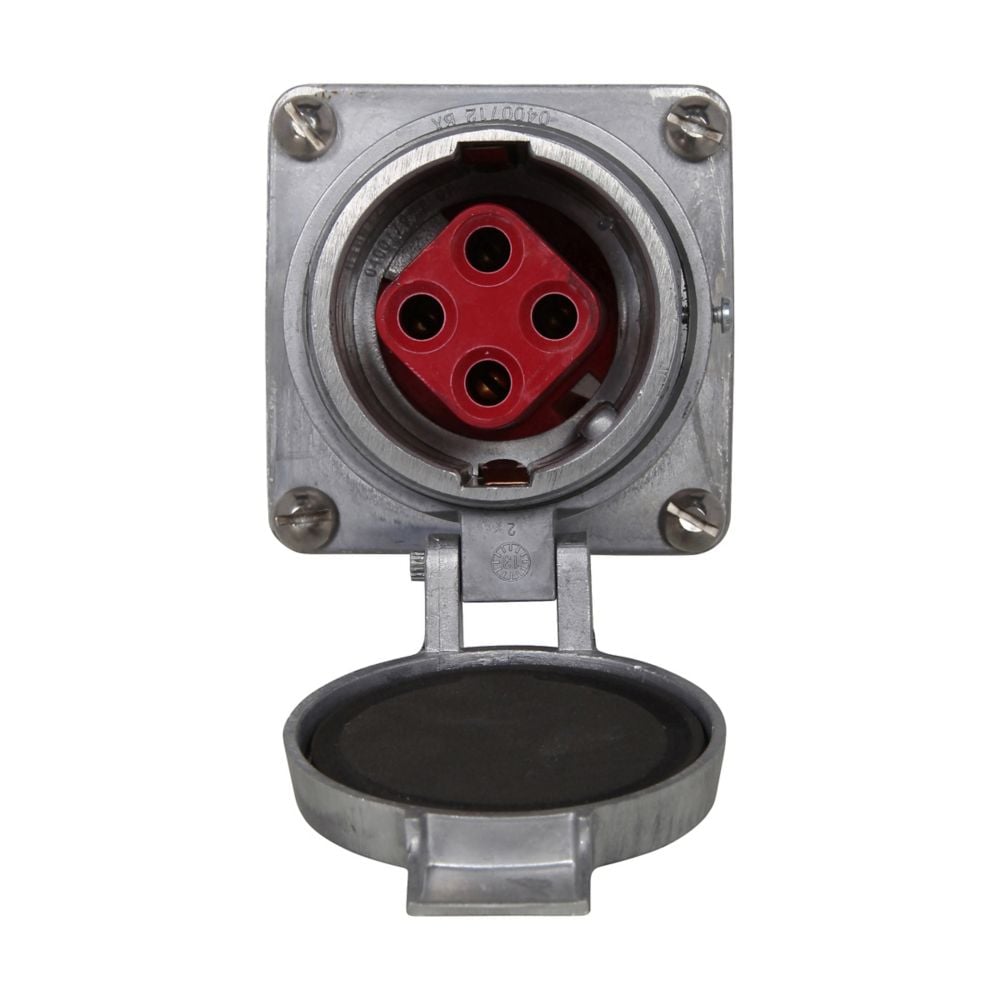

🔗 Eaton Crouse-Hinds Arktite 150A Receptacles
🔗 Eaton Crouse-Hinds Arktite 150A Connectors
🔗 Eaton Crouse-Hinds Arktite Accessories & Replacement Parts
What environment is the APJ15487 plug rated for?
The APJ15487 is rated for Ordinary/Non-Hazardous Locations under NEC/CEC standards with a NEMA 4 rating.
What size cable can this plug accept?
This unit is designed to accommodate cable diameters between 0.875 inches and 1.70 inches.
What material is used in the construction of this plug?
It is constructed from heavy-duty, corrosion-resistant, copper-free aluminum.
What is the grounding configuration for this plug?
The APJ15487 features a 3-wire, 4-pole, Style 2 grounding configuration
