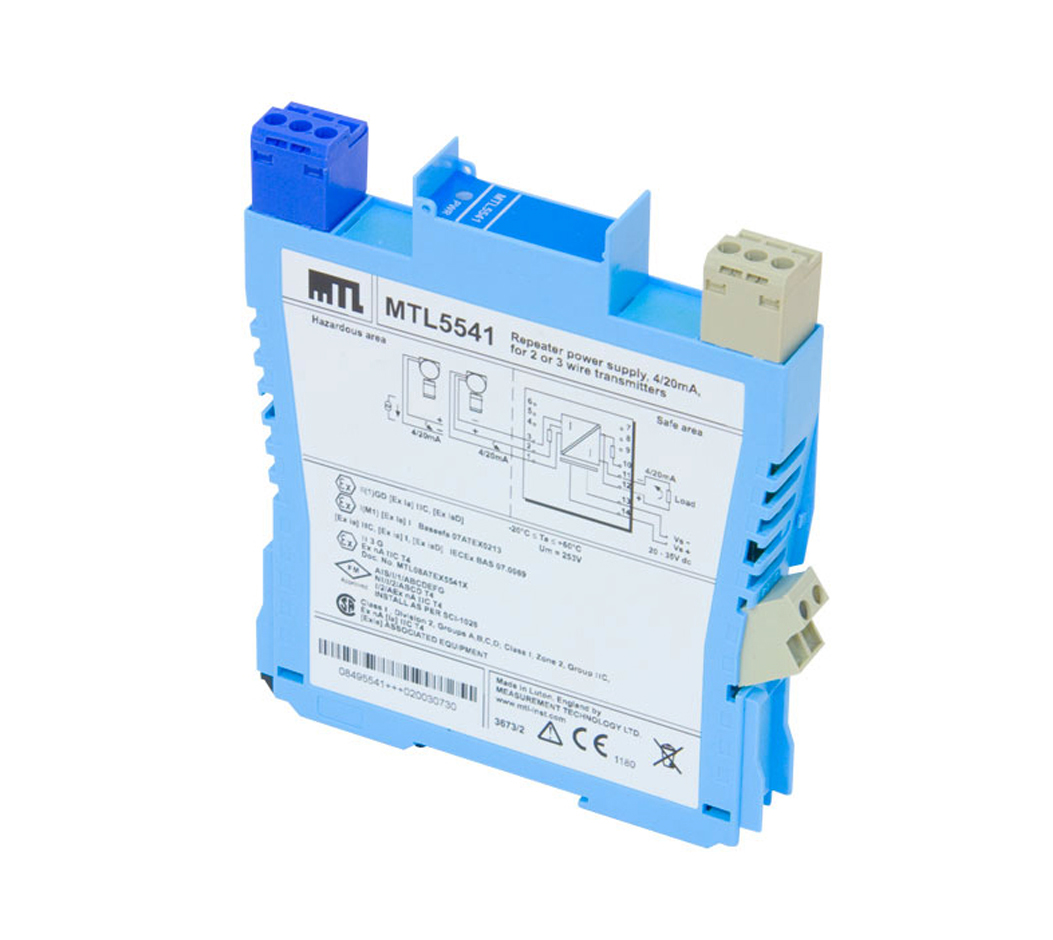

Eaton MTL5541 Intrinsically Safe Signal Repeater
The Eaton MTL5541 is an intrinsically safe signal repeater designed as associated apparatus for hazardous-area applications. It enables the safe isolation and retransmission of analog signals from field devices installed in Zone 0, Zone 1, or Class I Division 1 hazardous locations to safe-area control systems, ensuring intrinsic safety and signal integrity.
Part of the Eaton MTL5500 Series, the MTL5541 provides high-accuracy signal repetition with full galvanic isolation between input and output circuits. Its DIN-rail mounted design simplifies installation in control panels and marshalling cabinets, making it ideal for demanding industrial environments where safety, reliability, and long-term performance are critical.
Key Features:
✅ Intrinsically safe signal repeater (associated apparatus)
✅ Supports 4–20 mA analog signals
✅ Galvanic isolation between input, output, and power supply
✅ High signal accuracy and stability
✅ DIN-rail mountable for control panels
✅ Compact design for high-density installations
📦 Package Options:
🔹 Standard Unit: Eaton MTL5541 Signal Repeater
Eaton MTL5541 Technical Specifications:
| Feature | Details |
|---|---|
| Product Type | Intrinsically Safe Signal Repeater (Associated Apparatus) |
| Manufacturer | Eaton (MTL Series) |
| Model / Part Number | MTL5541 |
| Signal Type | 4–20 mA Analog |
| Function | Signal repetition and isolation |
| Isolation Type | Galvanic isolation |
| Mounting | DIN Rail |
| Installation Location | Safe area or approved non-incendive location |
| Hazardous Area Protection | Protects Zone 0 / Zone 1 / Class I Div 1 field devices |
| Typical Application | Analog signal repetition |
Certifications & Compliance:
🔗 ATEX – Certified associated apparatus for intrinsically safe circuits
🔗 IECEx – Approved for intrinsic safety systems
🔗 UL / cUL – Intrinsic safety isolator for Class I hazardous locations
🔗 Galvanic Isolation – Electrical separation to prevent fault propagation
🔗 Download Datasheet
Applications of Eaton MTL5541:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Process Automation
🔹 Hazardous Area Instrumentation
🔹 Industrial Control Systems
What’s in the Box?
📦 1x Eaton MTL5541 Signal Repeater
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: Available upon request
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
Is the Eaton MTL5541 certified for hazardous areas?
Yes. It is certified as associated apparatus for intrinsically safe systems and protects hazardous-area field devices.
Can the MTL5541 be installed in Zone 0 or Zone 1?
No. The repeater is installed in the safe area or approved non-incendive locations.
What type of signals does it support?
It supports standard 4–20 mA analog signals.
Does it provide galvanic isolation?
Yes. The MTL5541 provides full galvanic isolation between circuits.
