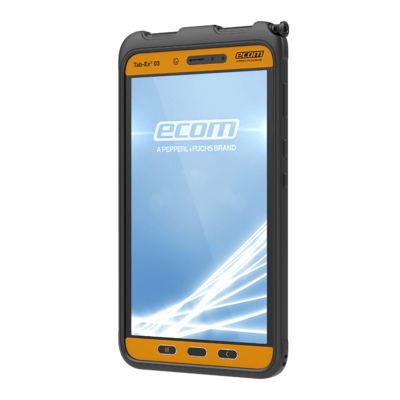

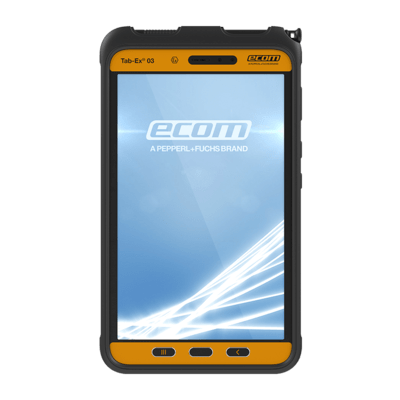

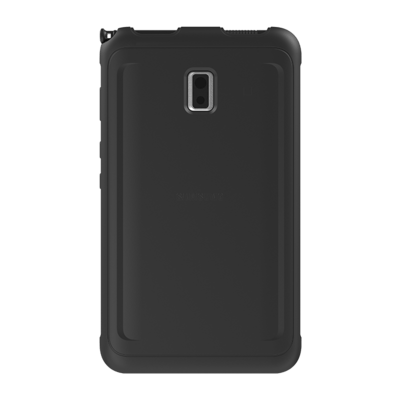

Ecom Tab-Ex®03-DZ2 Android Next Generation 8" ATEX Tablet for Zone 2/22 & Division 2

Out of StockSKU: —

$0.00

This product is currently unavailable. Our team can help you find a suitable alternative or advise on lead times.

Safety Specifications

Incl. accredited factory seal & certification stamps

ATEX RatingZone 2
Hazardous Area RatingClass 2 Division 2, Groups F & G, Class I Division 2, Groups A, B, C & D

Product Description

This product is no longer available.

Our sales experts will be happy to help you identify the best alternative to meet your requirements—please contact us for assistance.

You may try these new options: Tab-Ex® 05 Android Tablet

Technical Datasheet

Certification & Specification

Country of Origin	Germany (DE)
ATEX Rating	Zone 2
Hazardous Area Rating	Class 2 Division 2, Groups F & G, Class I Division 2, Groups A, B, C & D

Product Overview

The rugged, highly secure, Zone 2/22 & Division 2 rated intrinsically safe Android Tablet Tab-Ex® 03 continues the success story of the 3rd generation 8" Tab-Ex® Series.

The Ecom Tab-Ex® 03 DZ2 comes in a slim and lightweight design with a new high-performance operating system that powers the tablet with industry leading performance in hazardous areas. The Samsung DeX function turns the compact tablet into a full desktop computer, and additional accessories, peripherals, digital products, and services ensure superior flexibility.

Based on the state-of-the-art Samsung Galaxy Tab Active3, the device ensures high data and device security via Google Android™ operating system and Samsung Knox.

By combining Samsung Knox with the Android operating system, ecom’s Tab-Ex® 03 ensures that company data and processes are secure. On top of that, the Samsung Galaxy Tab Active3 is one of the selected mobile devices that is part of the Android Enterprise Recommended (AER) program.

Features:

Divison 2
Android™ Operating System
RAM: 4 GB, internal data memory: 64 GB
Replaceable Li-Ion 18.87 WH, 3.8 V Battery, 5050 mAh (typical), 4900 mAh (rated)
Rear: 13 MP AF with LED Flash; Front: 5 MP
IP 64

Advanced Security & Reliable Operation

PROTECTED FROM INSIDE AND OUTSIDE

The combination of Samsung Knox and the Google Android™ operating system guarantee advanced data and device security – protecting business data and processes. The multilayered Knox security measures also provide baseline protection against malware, privacy hacks and other threats.

Additionally, the Knox-certified device supports biometric authentication via facial recognition or fingerprint scan (only for D2 version).

Based on Samsung's state-of-the-art and Android Enterprise Recommended verified Galaxy Tab Active3: Proven quality, compatibility and long-term partnership
Ideal 8” slim and lightweight design but at the same time better performance
Reliable security update plan
Designed for extreme temperatures from -20 … +55 °C. Suitable for a wide range of industrial applications – worldwide
IP64: Water and dust resistant
Free programmable key ("red button") e.g. for emergency calls, alarms or push-to-talk (PTT)
Google ARCore: For remote support, training and customized company tools. Can be used for anything from asset management to equipment inspectio

Specifications:

Hardware
Processor	Octa-core, 4 x 2.7 GHz + 4 x 1.7 GHz Exynos 9810
RAM	4GB
Camera
Front camera	5 MP
Main camera	13 MP Autofocus
Video recording resolution	UHD 4K (3840 x 2160 Pixel) @ 30 fps
Internal data memory	64 Gbyte
	Free available memory 48.6 GByte
Sensors	Acceleration sensor, gyroscope, proximity sensor, geomagnetic sensor, Hall sensor, RGB light sensor
Speaker	Yes
Indicators/operating means
Display	Can be operated while wearing gloves
Touchscreen technology	Capacitive multitouch
Type	TFT, LCD
Screen diagonal	20.31 cm
Aspect ratio	16:10
Resolution	1920 x 1200 (WUXGA)
Brightness	480 cd/m2 (nit)
Colors	16 Mio.
Electrical specifications
Battery type	Li-Ion 18.87 WH, 3.8 V
	5050 mAh (typical)
	4900 mAh (rated)
Operating duration	up to 11 h
Communication
WLAN	802.11 a/b/g/n/AC/ax 2.4 G+5 GHz, HE80, MIMO, 1024 QAM
Bluetooth	Bluetooth® 5.0
GPS sensor	GPS, Glonass, Beidou, Galileo
USB	USB 3.1 Gen. 1
Connections	Wi-Fi Direct, NFC, ANT+
Software
Operating system	Android™ 13
Safety	Samsung KNOX 3.x
Ambient conditions
Ambient temperature	-20 ... 55 °C (-4 ... 131 °F)
Mechanical specifications
Degree of protection	IP64 according to EN/IEC 60079-0 (ATEX/IECEx)
Mass	610 g
Dimensions	H x W x D 126.8 mm x 213.8 mm x 9.9 mm
Data for application in connection with hazardous areas
ATEX approval
Certificate of conformity	EPS 21 ATEX 1 093 X
ATEX marking 1	II 3G Ex ic IIC T5 Gc IP64
	II 3D Ex ic IIIC T85°C Dc
International approvals
SGS approval
SGS certificate	SGSNA/21/SUW00045X
Approved for	Class I, Division 2 Groups A, B, C, D T5
	Class II, Division 2 Groups F, G T100°C
	Class III
	Class I, Zone 2 Group IIC T5
	Zone 22 Group IIIB T100°C
IECEx approval
IECEx approval	IECEx certificate IECEx EPS 21.0033X
IECEx marking	Ex ic IIC T5 Gc IP64
	Ex ic IIIC T85°C Dc
Approved for	Northern America
Further approvals	MIL-STD-810H
General information
Scope of delivery	Tab-Ex® 03
	Battery
	Ex-protective cover
	S Pen
	USB cable
	Charger
	Documentation
