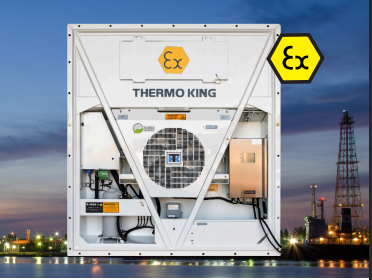

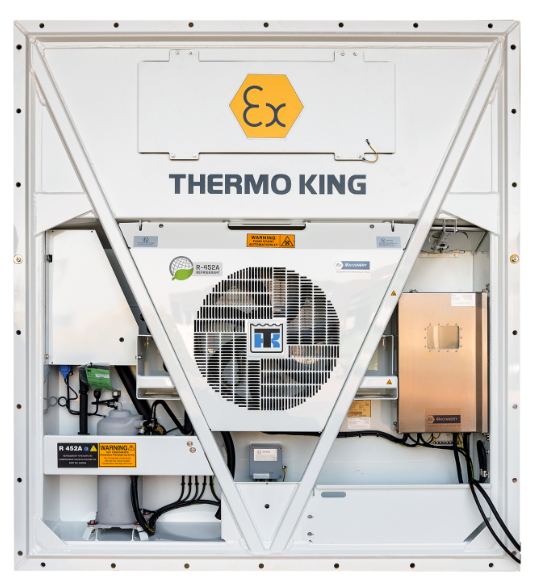

Ex-M Thermo King Magnum Plus Reefer Unit

The Ex-M Thermo King Magnum Plus Reefer Unit is an elite, explosion-proof refrigeration solution built to operate safely in hazardous ATEX Zone 2 environments prone to explosive gas or dust atmospheres. By modifying the industry-standard international shipping container reefer, this system provides unmatched reliability for the oil & gas, chemical, and pharmaceutical sectors, where safety and climate control cannot be compromised. This product is a top-tier example of an ex-m thermo king magnum plus reefer, engineered specifically to meet these demanding requirements.

In the field, the unit excels under extreme climate conditions, capable of maintaining an internal box temperature of -40°C even when ambient outdoor temperatures reach a blistering +50°C. For organizations seeking both safety and innovation, the magMagnum Plusefer unit by Ex-M Thermo King stands out as one of the leading explosion-proof refrigeration solutions in its category. The combination of Ex-M, Thermo King Magnum, and Plus technology in this reefer ensures it’s ideal for heavy-duty industrial use. It achieves an exceptional high precision temperature control within +/-0.25°C, ensuring that highly sensitive goods, chemicals, and hazardous substances remain stable and in optimal condition.

Key Features:

✅ ATEX Zone 2 Certification: Certified for both internal and external container gas safety
✅ High Precision Control: Advanced temperature management keeps substances stable within +/-0.25°C.
✅ Broad Setpoint Range: Versatile operations capable of managing temperatures from -40°C up to +30°C.
✅ Extreme Environment Performance: Validated to hold deep freeze temperatures in ambient environments up to +50°C.
✅ High Efficiency & Low Power: Designed to optimize energy usage, providing significant operating cost savings.
✅ Intuitive Smiley Interface: Clear visualization of system status using recognizable smiley faces on the display.
✅ Impact-Proof Protection: The system display is securely enclosed behind an impact-proof, double-locked door.
✅ Explosion-Proof Electricals: Equipped with an Ex nR explosion-proof compressor relay box for total ignition protection.
✅ Approved Collaboration: Developed in cooperation with Thermo King and K.C. For those comparing features, the ex-m thermo king magnum plus reefer model is recognized for its impressive range of technical specifications and certifications.

Technical Specifications:

Feature	Details
Manufacturer	Ex-Machinery Explosion Proof Equipment B.V.
Model	EX-M MP4000
ATEX Zone Certification	Zone 2 (Gas & Dust explosive atmospheres)
ATEX Gas Marking (Inside/Outside)	II 3G Ex h ec nA nR IIB T2/T3 Gc
EU Directive Compliance	2014/34/EU (ATEX114)
Harmonized Standards	EN 60079-0, EN 60079-15, EN 60079-7, EN ISO 80079-36, EN ISO 80079-37
Setpoint Range	-40.0 to +30.0 °C (-31.0 to +86.0 °F)
Temperature Control Precision	Up to +/-0.25 °C
Extreme Ambient Capacity	Maintains -40 °C box temp @ +50 °C ambient
Net Weight (Magnum+ Base Unit)	380 Kg (875 lb.)
Power Requirements	460/230V, 3 Phase, 60 Hz Power
Control Circuit Voltage	29 VAC @ 60 Hz
Cooling Capacity (Air Cooled, 21.1°C / 70°F)	16.603 kW (56,700 Btu/hr) @ 11.55 kW power consumption
Cooling Capacity (Air Cooled, -17.8°C / 0°F)	7.258 kW (24,785 Btu/hr) @ 7.57 kW power consumption
Cooling Capacity (Air Cooled, -35°C / -31°F)	4.104 kW (14,000 Btu/hr) @ 6.03 kW power consumption
Refrigerant Type	R-404A
Interface	User-friendly display with "Smiley" face status indicator
Physical Security	Impact-proof display door with double lock mechanism
Component Protection	Explosion-proof compressor relay box (Ex nR)
Lead Time	5-8 weeks

 This table highlights the details you’ll find in an ex-m thermo king magnum plus reefer’s technical data.

Certifications & Compliance:

🔗 Certificate – Compliant with strict EU regulations for equipment in potentially explosive atmospheres.
🔗 Gas Marking (Inside & Outside) –
🔗 Applied Standards – Certified to EN 60079-0, EN 60079-15, EN 60079-7, EN ISO 80079-36, and EN ISO 80079-37.
🔗 CE Mark – Full compliance with European safety standards.
🔗 .Download Datasheet The ex-m thermo king magnum plus reefer comes certified for all major markets.

Applications:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing Applications Popular across industries, the ex-m thermo king magnum plus reefer adapts to diverse application needs.

What’s in the Box?

📦 1x Zone 2 Explosion Proof Container Refrigeration Unit EX-M MP4000+
📦 1x Integrated Compressor & Relay Box
📦 1x Evaporator Fans & Condenser Fan System
📦 1x Defrost Heater with Controller
📦 1x Control Cabinet with Sensors
📦 1x Impact-Proof Protection Door Assembly
📦 1x Documentation & EU Declaration of Conformity Kit For each box, you receive original ex-m thermo king magnum plus reefer components designed for safety and performance.

Ordering & Shipping Details

📦 Lead Time: 6-8 weeks
📍 Shipping Terms: Worldwide / International Shipping Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms. When ordering, you always get genuine ex-m thermo king magnum plus reefer availability and service.

FAQs:

Can the system display still be monitored while locked?
Yes. The status of the reefer unit, indicated by intuitive smiley faces on the display, can be clearly viewed at a glance through the impact-proof door window without opening it. This user-friendly monitoring is another advantage of the ex-m thermo king magnum plus reefer system.

Are all original Thermo King features preserved?
Absolutely. The hazardous area design safely modifies the unit while preserving all state-of-the-art functionality, reliability, and intuitive operation found in the original Thermo King Magnum Plus. These features make the ex-m thermo king magnum plus reefer a trusted choice in safety-focused industries.

What ambient conditions can this reefer unit withstand?
It is engineered for extreme climates, capable of maintaining internal temperatures as low as -40°C in harsh environments with ambient temperatures up to +50°C. In high-stress settings, the ex-m thermo king magnum plus reefer continues to offer reliable protection for valuable inventory and materials.

Is this unit officially certified?
Yes, it comes with a manufacturer-issued EU Declaration of Conformity under the ATEX Directive 2014/34/EU (Certificate No. EX-M23ATEX2403X.EU). Certification details are always up-to-date for every ex-m thermo king magnum plus reefer purchase.
