Explosion Proof AE Light 20W LED 100-240VAC

SKU: 70545-AEBC5401-L2-20 2-20W LED
(1 customer review)

Explosion Proof LED Industrial Light AE Light 2-20W LED is certified to use in ATEX Zone 1 / 2, 21 / 22 and Class I Division I, II and Class II Division I, II hazardous locations. It consists of two flameproof illumination chambers and two safety junction chambers. It features of aluminum alloy 6063 with a minimum thickness of 3.0mm, main enclosure. The transparent cover is made of toughened Vycor glass with a thickness of 4.0mm. It also cemented with PU521 polyurethane glue, cemented length no less than 10.0mm, both main enclosure and transparent cover.

ATEX Rating

Hazardous Area Rating

$55000

Trusted Clients

Similar Category:
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat us

Explosion Proof AE Light 20W LED 100-240VAC

  • ATEX Zone 1 / 2
  • ATEX Zone 21 / 22
  • Class I Division I, II
  • Class II Division I, II
  • Voltage: AC 90-264V
  • Light Source: T8 LED Tube
  • Service Life: >50000
  • Rated Frequency: 50/60
  • Color Temp: 4000K
  • IP66

The powerful and bright Explosion Proof LED Industrial Light AE Light 2-20W LED is certified to use in ATEX Zone 1 / 2, 21 / 22 and Class I Division I, II and Class II Division I, II hazardous locations. Designed to wok in petrol industries, chemical plants, wharf, harbor, mine, aerospace, aircraft industry, military industry, food industries and other hazardous areas that both explosive dust and gas may exist.

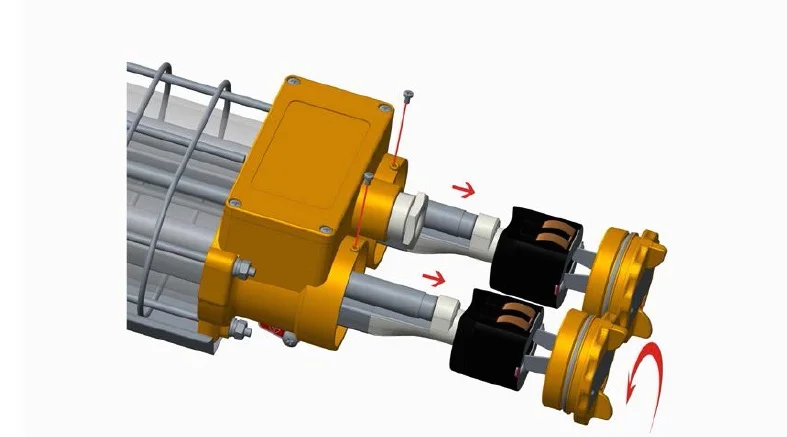

One of the many features of these Explosion Proof LED Industrial Light is flameproof with safety protection type O-rings in each joint make it available for dust atmospheres. It consists of two flameproof illumination chambers and two safety junction chambers, connection between chambers are achieved by junction bases. An integrated illumination (including power supply and lamp holder support), is installed inside the illumination chamber, and ATEX/IECEx certified junction terminals with Ex marking EXe llC Gb are installed in the junction chamber.

Other excellent features includes the main enclosure, side cover and top cover are made of aluminum alloy 6063 with a minimum thickness of 3.0mm, the content of magnesium and titanium are no more than 7.5%. The transparent cover is made of toughened Vycor glass with a thickness of 4.0mm. The main enclosure and transparent cover are cemented with PU521 polyurethane glue, cemented length no less than 10.0mm.

Type A light there is one cable entry on the side each Ex e chamber, which are protected by stopping plugs with protection level no less than Ex e llC Db / Ex tb lllC db product or clamp nut type cable entry which have rubber sealing.

Type B light, there is one cable entry on the side each Ex e chamber which are protected by stopping plugs with protection level no less than Ex e llC Db. Ex tb iiiC Db product, and there is one more cable entry with compression nut and sealing ring on the top left side (illuminat replacing side) for explosion protected junction box or emergency power source.

Specifications

Model/typeBC5401-L2×20 40W (Others on special order)BC5401-Y2×28, 14 (Special Order)
Light sourceT8 Led Tube (Two Terminal Power Supply)T5 Fluorescent Tube (With T8 Bracket)
Input voltage (V)AC 90~264VAC 220~240V,  AC110V
Rated voltage (V)AC110V, AC120V, AC127V, AC220V, AC230V, AC240VAC110V, AC220V, AC230V, AC240V
Rated frequency(Hz)50/6050/60
Rate power(W)2×20W LED tubes (Others available special order)2×28, 2×14 (Special Order)
Light efficiency(lm/W)>90>70
Color temperature(K)4000K (3000K,5000K is available)4000
Color rendering index (Ra)>70>70
Service life (h)>50000>20000
Ex markingⅡ2GD Ex de ⅡC T6 GbⅡ2GD Ex deⅡC T6 Gb
Ex tb IIIC T80℃ Db IP66Ex tb ⅢC T80℃Db IP66
Zone 1, Zone 2 (CL 1, DIV 1 & DIV 2) Gases
Zone 21, Zone 22 (CL2, DIV 1 & DIV 2) Dusts
Ingress protectionIP66IP66
Total harmonic current<15%<15%
Weight(kg)117.5
Installation angle360°360°
CSA of leadNo less than 1.5mm2No less than 1.5mm2
Cable Entryф10-ф14 cable(M25*1.5,NPT3/4〞or G3/4〞)
