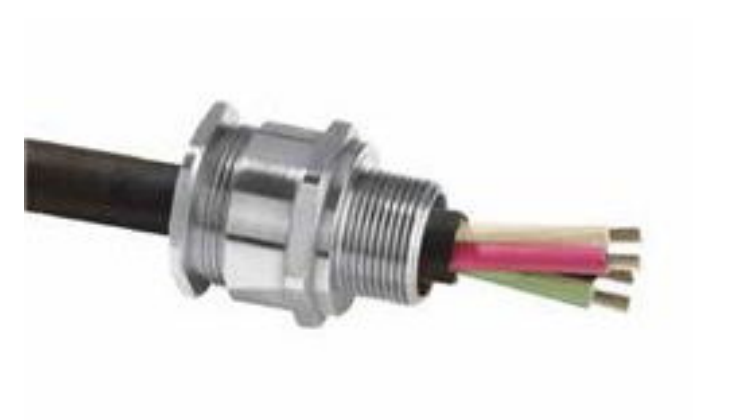

Explosion Proof Cable Gland ATEX IP68 – 1/2″ NPT
The Explosion Proof Cable Gland ATEX IP68 – 1/2″ NPT is engineered for secure cable entry in hazardous environments. Constructed from electroless nickel-plated brass with stainless steel, aluminum, and thermoplastic elastomer seals, it ensures mechanical retention and environmental sealing for unarmored or braided cables in ATEX, IECEx, and CSA-approved zones.
Rated IP66/IP67/IP68 and certified for Zones 1, 2, 21, and 22, this cable gland withstands extreme temperatures from -60°C to +130°C, making it ideal for offshore, chemical, mining, and manufacturing applications. Its corrosion-resistant construction and robust sealing system guarantee long-term reliability in combustible and high-moisture environments.
Key Features:
✅ ATEX, IECEx, CSA, INMETRO, GOST certified for Zones 1, 2, 21, 22
✅ Electroless nickel-plated brass with stainless steel and aluminum components
✅ IP66/IP67/IP68 waterproof and dustproof protection
✅ 1/2″ NPT entry thread, 0.125″–0.342″ cable diameter range
✅ Unarmored or braided cable compatibility
✅ Wide operating temperature range: -60°C to +130°C
✅ High corrosion resistance for marine/offshore use
Explosion Proof Cable Gland ATEX IP68 – 1/2″ NPT Technical Specifications:
| Feature | Details |
|---|---|
| Unit Type | Explosion Proof Cable Gland – Zones 1, 2, 21, 22 |
| Certifications | ATEX, IECEx, CSA, INMETRO, GOST, Lloyd's, DNV, ABS |
| Material | Electroless nickel-plated brass, stainless steel, aluminum |
| Seal Material | Thermoplastic elastomer |
| Entry Thread | 1/2" NPT |
| Min Thread Length | 0.783" |
| Cable Diameter Range | 0.125" – 0.342" |
| Ingress Protection | IP66/IP67/IP68 |
| Operating Temperature | -60°C to +130°C |
| Weight | 1.90 oz (54 g) |
| Across Flats | 0.944" (max) |
| Across Corners | 1.04" (max) |
Certifications & Compliance:
🔗 ATEX – European explosion proof compliance
🔗 IECEx – International explosion proof standard
🔗 CSA/CEC – Canadian compliance
🔗 INMETRO – Brazilian certification
🔗 GOST – Russian/Kazakh approval
🔗 IP66/IP67/IP68 – Complete dust and water ingress protection
🔗 Download Datasheet
Applications of Explosion Proof Cable Gland ATEX IP68 – 1/2″ NPT:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Marine & Offshore
🔹 Mining
🔹 Manufacturing
🔹 Telecommunication in hazardous zones
What’s in the Box?
📦 1x Explosion Proof Cable Gland
📦 1x Seal Assembly
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 3-5 days
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
Is this suitable for armored cables?
No, it is designed for unarmored or braided cables only.
What is the ingress protection rating?
IP66/IP67/IP68 – fully dust tight and waterproof.
Can it be used in marine environments?
Yes, it is approved by Lloyd’s, DNV, and ABS.
What is the operating temperature range?
-60°C to +130°C.
