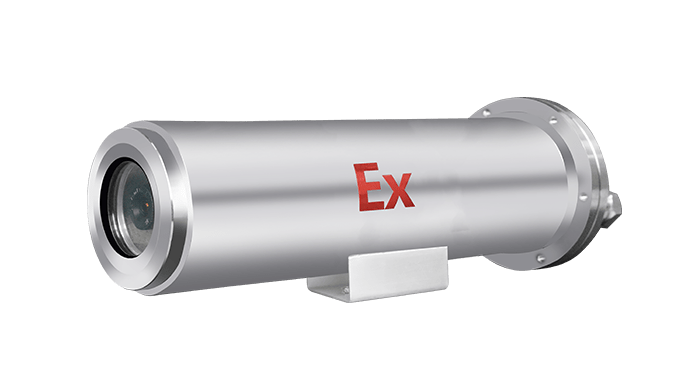

Explosion Proof Camera Housing TX-Ex553-HSND2

Out of StockSKU: TX-Ex553-HSND2

$235.86

This product is currently unavailable. Our team can help you find a suitable alternative or advise on lead times.

Safety Specifications

Incl. accredited factory seal & certification stamps

ATEX RatingZone 0, Zone 1, Zone 2

Product Description

Applicable to factories with A and B Ⅱ Ⅱ, Ⅱ c-class T1 ~ T6 group of combustible gases and vapors in mixture with air to form explosive place of 0, 1 zone and 2 zone, and the formation of combustible dust in mixture with air of 20, 21, 22 area explosive dangerous location. Such as petroleum, chemical industry, wharf, oil depot, ship, drilling platform, gas station, mine, port, aerospace, military industry, medicine, steel, fire cracker production, machinery, food processing and storage sites.

Technical Datasheet

Certification & Specification

ATEX Rating

Zone 0, Zone 1, Zone 2

Product Overview

Explosion Proof Camera Housing TX-Ex553-HSND2

Product features:

Equipped with the latest SONY CCD program, the resolution of the analog camera can reach up to 800TVL;
When visible light is insufficient, automatic day and night conversion, clear and meticulous color lifelike high-quality picture;
Photosensitive performance is greatly improved, and the minimum illumination is as low as color 0.01Lux@F1.2;
The latest fourth-generation wide dynamic technology, the dynamic range is greater than 75dB, the effect improvement is very obvious;
3D digital noise reduction technology, increase the noise reduction processing of the original signal, the image at night is clean and bright;
Optical grade high-strength and high-transmittance ultra-white explosion-proof glass, with light pass rate higher than 96%;
Nano invisible wiper, not sticky water, not sticky oil, dust repellent;
High hardness special carbon steel by fluorocarbon high temperature spray baking or stainless steel polishing/passivation process, explosion-proof, dust-proof, waterproof, rust-proof;
Optional semiconductor silicon controlled temperature control module to realize automatic heating and cooling functions.

Specification:

Model	TX-EX553-H1S(A/[A]/N)D
Certification
Explosion-proof marks	ExdⅡCT6Gb/ExtD A21 IP68 T80℃
Explosion-proof certificate No	CNEx15.3653
Mechanical properties of
The material	Carbon steel or 304 stainless steel
Surface treatment	High temperature fluorocarbon spray baking or stainless steel primary color
Protection grade	IP68
The interface specification	G-3/4"
The weight	≤8kg
Installation	wall
Electrical performance
The input voltage	DC12V或AC110-240V
Working current	≤2000mA
The camera
Imaging device	5 megapixels 1/2.5 "CMOS sensor (network) 1/3SONY Super EFFIO HAD/Exview HADII CCD Sensor(simulated)
Effective pixels	1.3 megapixels /2 megapixels (network) 700TVL(simulated) 2 million 1080P(coaxial HD) [SUPPORT AHD/HDCVI or HDTVI format]
The lens	4mm/6mm/8mm/12mm/16mm
Signal to noise ratio	＞52db
Minimum illumination	0Lux(infra-red on)
Infrared
Distance	30m
The wavelength	850nm
On/off	Auto(≤10Lux)
Electrical connection	Compound cable (network + power supply), or network cable, power supply separate outlet
The environment temperature	（-30℃，+70℃）
The atmospheric pressure	80-106KPa
Relative humidity	≤95%RH(+25℃)
