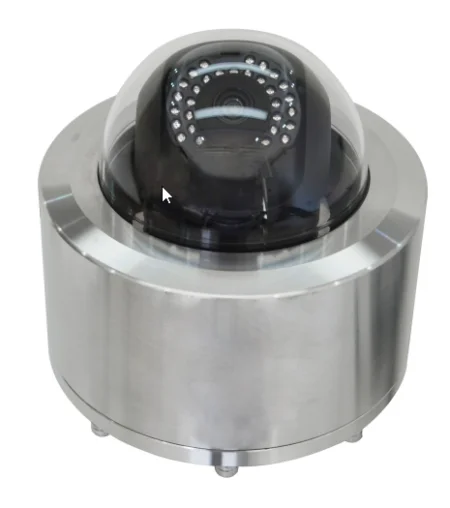

Explosion-proof Dome Camera Kaixuan KX-EX2000PSB2 can be used in extreme situations such as petroleum, chemical industry, mine, military industry, medicine, oil depot, ships, drilling platform, gas stations, fireworks production, food processing and storage, offshore projects, and a lot more
Features:
- ATEX Certified
- II 2G Ex d IIC T6 Gb
- II 2D Ex tb IIIC IP68 T80℃ Db
- For use in potentially dangerous locations, the Kaixuan KX-EX2000PSB2 Explosion Proof Dome Camera has done extensive testing and certification.
- IR distance:15m
- lens: 4/6/8mm for optional
- Support ONVIF, support HIKVISION, DAHUA
- apply to a strong corrosive environment, Explosion-proof,anti-corrosion, waterproof
- Adopt SONY1/3″CMOS Senor CCD, resolution up to 1920×1080 pixel.
- Adopt TI-DSP CPU. High work efficiency
- Support dual-stream, support mobile phone monitoring
- Windows glass surface process by nanotechnology. Well, light transmittance. no halation effect .non-stick oil/dusty .
- Low power consumption, the fuselage internal air convection heat dissipation design, can work continuously for a long time
- Standard: The power mode may be changed to AC220V/DC12V.
- Support Power Over Ethernet technology
- Made of 304 stainless steel material. apply to a strong corrosive environment
- The camera bottom cover adopts Polycarbonate transparent Material.
- Well design for Explosion-proof, anti-corrosion, waterproof, suitable for indoor and outdoor environment
Specification:
| Product | Ex-level | ATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP68 T80℃ Db |
| Ingress Protection level | IP66 | |
| Camera | imaging sensor | SONY1/3″CMOS Senor CCD |
| Cpu | TI- DSP | |
| minimal illumination | Color 0.1Lux@F1.1, BW 0.01 Lux@F1.1; | |
| Lens specification | 4mm、6mm、8mm Optional | |
| DNR | 3D –DNR | |
| motion detecting | Support | |
| compression standard | Video compression standard | H.264/H.265/MJPEG |
| H.264 encoding type | BaseLine Profile / Main Profile | |
| compression output rate | 32 Kbps~8Mbps | |
| Image | Max imagin size | 1920×1080 |
| Frame rate | 2 megapixel and following 25 frame(full-time), support 1~25 fps is adjustable; | |
| Video output | Main:1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720; Sub: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192; |
|
| Image setting | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
| IR | IR lrradiation distance | 15m |
| IR switch | IR lamp Auto-open when <0 Lux | |
| wavelength | 850nm | |
| Netv | Interface protocols | ONVIF,PSIA,CGI,ISAPI,GB28181 |
| Support protocols | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ UPnP etc . | |
| audio interface | Optional | |
| Alarm interface | Optional | |
| Other specifications | Temputure range | -40℃～60℃ |
| Relative humidity | ≤95%（+25°C） | |
| Atmospheric pressure | 80kpa～106 kpa | |
| Thermostat System | Optional | |
| Supply voltage | DC12V | |
| Suitable envirment | Apply to explosive gas and combustible dust environment00 | |
| Material | 304 stainless steel(316, 316L for optional) | |
| Inlet hole specifications | 20*1.5mm” x 1 | |
| Installation method | Wall Hanging dyadic , fixed bracket |
Question
Daniel Inyang –
do these cameras have video balun connectors to hook to our existing video recorder?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Daniel Inyang –
Yes, but usually on request. Please indicate to an Hazardous area specialist or the support team that you need the balun connectors included in your order.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
raphael –
My system has BNC connectors and I was wondering if this camera would match my system
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
