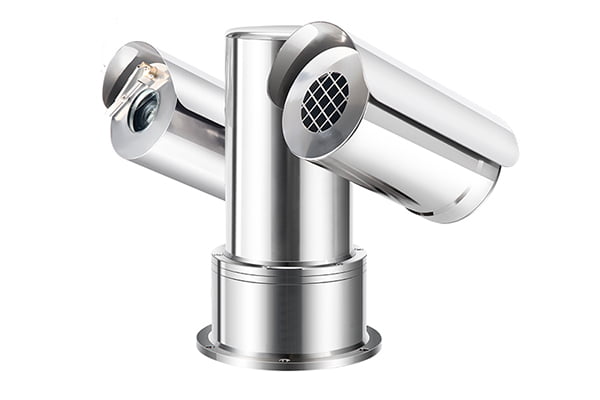

Kaixuan KX-EX1000ZPPS-R Explosion Proof CCTV Camera Enclosure

SKU: KX-EX1000ZPPS-R
(1 customer review)

Kaixuan KX-EX1000ZPPS-R Explosion Proof CCTV Camera Enclosure is certified to use in ATEX Zone 1 / 21 hazardous locations. Suitable for thermal and day camera dual sensor. It features Auto-Iris, Auto-Focus, support SD card, smart windshield wiper, 300 monitoring locations, circuit design, baud rate, rotation speed, and range. With the support ONVIF, support HIKVISION, and DAHUA technology. The 304 stainless steel material is applicable to a strong corrosive environment. Explosion proof, anti-corrosion, waterproof resistant, IP66.

NOTE: housing only without a camera inside

ATEX Rating

$5,00812

Out of stock

Shipping Time: 2-3 weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: ,

Kaixuan KX-EX1000ZPPS-R Explosion Proof CCTV Camera Enclosure

The Kaixuan KX-EX1000ZPPS-R Explosion Proof CCTV Camera Enclosure is certified for use in ATEX Zone 1/21 hazardous areas. The KX-EX1000ZPPS-R is a dual-sensor thermal and day camera. It includes a circuit design, a smart windshield wiper, 300 monitoring sites, baud rate, rotation speed and range, and nanotechnology-enhanced glass surface processing.

Additionally, it enhances usability by supporting ONVIF, HIKVISION, and DAHUA technologies. The IP66-rated, explosion-proof, anti-corrosion and waterproof design is ideal for use in harsh environments. This explosion proof CCTV camera enclosure is made of very robust 304 stainless steel (316L for optional).

Features:

  • ATEX Zone 1 / 21
  • Ex – Housing
  • Auto-Iris, Auto-Focus, Support SD card
  • Horizontal 360°(Endless)
  • Vertical ±90°
  • Horizontal/Vertical Rotate speed 0.1°/S~40°/s
  • 300 preset
  • smart windshield wiper
  • Support ONVIF, support HIKVISION, DAHUA
  • AC85V-260V
  • Suitable for thermal and day camera dual sensor
  • Automatic aperture. automatic focusing, easy to monitor remote targets
  • The module circuit design, support baud rate/ control protocol automatic recognition, support software address code setting
  • Imported precision motor, Response sensitivity, stable operation, low accuracy, no jitter under any speed
  • Windows glass surface process by nanotechnology. Well, light transmittance. no halation effect .non-stick oil/dusty
  • Low power consumption, the fuselage internal air convection heat dissipation design, can work continuously for a long time
  • Made of 304 stainless steel material (316L for optional), apply to a strong corrosive environment
  • Well design for Explosion-proof, anti-corrosion, waterproof, suitable for indoor and outdoor environment
  • IP66

NOTE: housing only without a camera inside

Specifications:

ProductsEx-LevelATEX
II 2G Ex d IIC T6 Gb
II 2D Ex tb IIIC IP68 T80℃ Db
Ingress  Protection levelIP66
PTZ functionRotation  rangeHorizontal :0~360°Vertical:   :±90°
Rotation  speedHorizontal :0.1°/S~40°/s Vertical:   :0.1°/S~40°/s
monitoring location300  locations can be set
Communication  methodRS485
Baud rate2400 / 4800  / 9600 bps
Communication  protocolPELCO-D、PELCO-P  etc .
monitoring location setting accuracy±0.1°
Other specificationTemperature  range-40℃~60℃
Relative  humidity≤ 95%(+25°C)
Atmospheric  pressure80kpa~106 kpa
Material304 stainless  steel(316, 316L for optional)
Supply  voltageAC220V
Inner SizeФ100*230mm for both
WindowФ65mm
Inlet hole specificationsG-3/4″x 1
Electrical  connection10-core composite cable
Thermostat  SystemOptional
Installation  methodbracket or  base installtion
