Kaixuan KX-EX1000PPS Explosion Proof CCTV Camera

Out of StockSKU: —

$3,329.40

This product is currently unavailable. Our team can help you find a suitable alternative or advise on lead times.

Safety Specifications

Incl. accredited factory seal & certification stamps

ZoneZone 1

Product Description

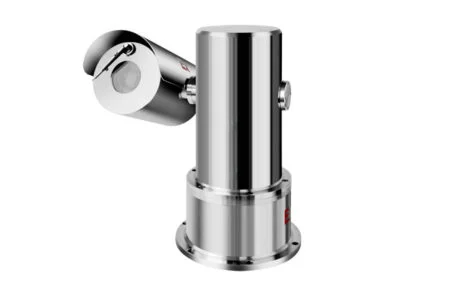

Explosion Proof CCTV Camera Kaixuan KX-EX1000PPS Series is certified to use in ATEX Zone 1 / 21 hazardous locations. It features 2.0 and 3.0 megapixels resolution with 20x and 30x zoom ratios. Also features 300 preset, Auto-Iris, Auto-Focus, support SD card, smart windshield wiper, baud rate, vertical and horizontal rotation speed, and range. With the support ONVIF, support HIKVISION and DAHUA technology. The 304 stainless steel material is applicable to a strong corrosive environment. Explosion proof, anti-corrosion, waterproof resistant, IP66.

Technical Datasheet

Certification & Specification

Country of Origin	China (CN)
ATEX Safety / Zone	Zone 1

Product Overview

ATEX Zone 1/21 certified for usage in hazardous environments. These Explosion Proof PTZ Camera models have a resolution of 2.0 and 3.0 megapixels with a zoom ratio of 20x and 30x, respectively. High-resolution video up to 1920 x 1080 @ 25 fps and 30 fps, and 1280 x 720 @ 25 fps and 30 fps, ensures the highest video quality and clarity in its class. The IP66-rated, explosion-proof, anti-corrosion and waterproof design is ideal for use in harsh environments. This Explosion-Proof CCTV Camera is made of very robust 304 stainless steel (316L for optional).

Additionally, it enhances usability by supporting ONVIF, HIKVISION, and DAHUA technologies. This CCTV camera is equipped with a 1/2.8" Progressive Scan CMOS imaging sensor, PAL/NTSC signal system, ICR auto switch, RS485 connection method, and 300 monitoring sites, among other characteristics.

Features:

2.0 and 3.0 Megapixels Resolution
Horizontal 360° (Endless)
Vertical ±90°
Rotate speed 0.1°/S~40°/s
Auto-Iris, Auto-Focus, Support SD card
300 preset
Support ONVIF, support HIKVISION, DAHUA
Smart windshield wiper
AC85V-260V
Support digital wide dynamic, support 3D-DNR, low bit rate
The module circuit design, support baud rate/ control protocol automatic recognition, support software address code setting
Imported precision motor, Response sensitivity, stable operation, low accuracy, no jitter under any speed
Windows glass surface process by nanotechnology. Well, light transmittance. no halation effect. non-stick oil/dusty
Low power consumption, the fuselage internal air convection heat dissipation design, can work continuously for a long time
Made of 304 stainless steel material (316L for optional), apply to a strong corrosive environment
Well design for Explosion-proof, anti-corrosion, waterproof, suitable for indoor and outdoor environment
IP66

Specifications:

Product	Ex-Level	ATEX
		II 2G Ex d IIC T6 Gb
		II 2D Ex tb IIIC IP66 T80℃ Db
	Ingress Protection level	IP66
Camera	Imaging sensor	1/2.8″ Progressive Scan CMOS
	Signal System	PAL/NTSC
	Minimal illumination	Color ：0.05Lux @ (F1.6，AGC ON)
		BW ：0.01Lux @(F1.6，AGC ON)
	Day/Night	ICR auto switch
	SNR	>52dB
	Electronic shutter	1/1S ~ 1/30,000S
	Resolution ratio	50HZ:25fps(1920×1080) 60HZ:30fps(1920×1080)
		50HZ:25fps(1280×720) 60HZ:30fps(1280×720)
	White balance	1/2 Automatic / manual / indoor / outdoor lamp / fluorescent lamp
	3DDNR	Support
Lens	Focal distance	4.7-94mm，20 optical, 4.3-129mm, 30x
	Aperture	F1.6-F3.5, F1.6 – F5.0
	Horizontal view angle	61.4-2.9 ° (Wide-Tele )
	Min-working distance	10-1500mm(Wide-Tele)
	Zoom speed	About 2.7 s (optical ，Wide-Tele)
Menu control	Exposure mode	Auto exposure / aperture priority / shutter priority / manual exposure
	Focusing mode	Auto /manual /one time focusing
Compression standard	Video compression standard	H.264 /MJPEG
	Output compression rate	32 Kbps~16Mbps
	Audio compression standard	G.711-a law、G.711-u law、G.726
Image	Image set	Saturation, brightness, contrast
Net	Memory	Support micro SD
	Intelligent alarm	motion detecting,fault block alarm、the memory full, memory fault
	Support protocols	TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP、
		Optional
PTZ function	Rotation range	Horizontal ：0～360°Vertical: ：±90°
	Rotation speed	Horizontal ：0.1°/S~40°/s Vertical: ：0.1°/S~40°/s
	Monitoring location	255 locations can be set
	Communication method	RS485
	Baud rate	2400 / 4800 / 9600 bps
	Communication protocol	PELCO－D、PELCO－P etc .
	monitoring location setting accuracy	±0.1°
Interface	Audio input	1 path
	Audio output	1 path
	Alarm input	1 path（optional ）
	Alarm output	1 path（optional ）
	Interfaceprotocols	ONVIF、PSIA、CGI
Other specification	Temperature range	-40℃～60℃
	Relative humidity	≤ 95%（+25°C）
	Atmospheric pressure	80kpa～106 kpa
	Material	304 stainless steel(316, 316L for optional)
	Supply voltage	AC220V/AC24V optional
	Inlet hole specifications	G-3/4″x 1
	Electrical connection	10-core composite cable
	Thermostat System	Optional
	Installation method	bracket or base installtion
	WeightNN	18.5Kg
