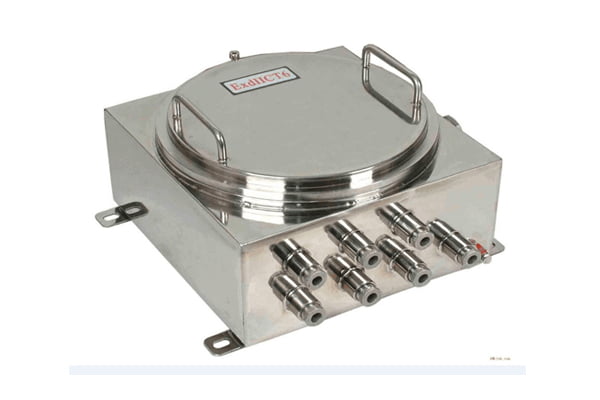

Kaixuan’s KX-EX10CBD Series Explosion Proof Junction Box is certified for use in ATEX Zone 1/21 hazardous areas. The Kaixuan KX-EX10CBD Series Explosion-Proof Junction Box features an 4pcs M25*1.5 output. The IP66-rated, explosion-proof, anti-corrosion and waterproof design are ideal for use in harsh environments. This Explosion Proof Control Box is made of extremely tough 304 stainless steel.
Features:
- ATEX Zone 1/21
- EX Level IIC
- Explosion-proof, anti-corrosion, waterproof
- Made of 304 stainless steel material
- 4pcs M25*1.5 output
- Strong anti-corrosion
- IP66
Specifications:
| Product | Ex-Level | ATEX |
| II 2G Ex d IIC T6 Gb | ||
| II 2D Ex tb IIIC IP68 T80℃ Db | ||
| Ingress Protection level | IP66 | |
| Other specifications | Temputure range | -40℃～60℃ |
| Relative humidity | ≤ 95%（+25°C） | |
| Atmospheric pressure | 80kpa～106 kpa | |
| Thermostat System | Optional | |
| Supply voltage | DC12V/24V /AC220V | |
| Suitable environment | Apply to explosive gas and combustible dust environment | |
| Material | 304 stainless steel | |
| External dimensions | 400mm*500mm*150mm | |
| Internal and external size can OEM | ||
| Inlet hole specifications | G3/4″ X 8 |
