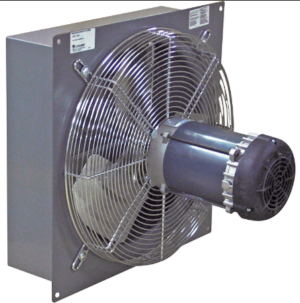

This powerful Class 1 Division 1 and Class 2 Division 1 certified, 4-blade explosion proof exhaust fan is designed for use in factories, food industries, and steel mills. It is built using the finest aluminum, making it lightweight and easy to install. Machine shops, paint booths, and places with a large volume of warm air including use this explosion proof fan to get rid of smoke and unnecessary odor. With a 24-inch blade size, this fan features an extra heavy duty frame with a unique fastening system for easy field adjustment.
This also features a belt-drive type that is smooth and quiet, runs in 1 speed and phase. At 100 lbs total weight, it works with the Explosion Proof Exhaust Fan highest RPM of 705. Easy to clean and operate, can mount to the wall in minutes, and is very user-friendly and worth checking out.
Features:
- Explosion proof motor: Class 1 Division 1 and Class 2 Division 1
- Voltage: 115
- Type: Explosion Proof
- Amps: 6.5
- Blade Size in Inches: 24
- CFM High: 4,100
- 4 Blades
- Drive Type: Belt
- Horsepower: 1/3
- RPM High: 705
- Weight: 100 lbs.
- Made In USA
Specifications:
| Model No. | VI2412HL-U |
| Voltage | 115 |
| Warehouse | Arkansas |
| Made In U.S.A. | Yes |
| Type | Explosion Proof |
| Amps | 6.5 |
| Blade Material | Aluminum |
| Blade Size (Inches) | 24 |
| No. of Blades | 4 |
| CFM High | 4100 |
| Hertz | 60 |
| Drive Type | Belt |
| Horsepower | 1/3 |
| Limited Warranty | 3 Year Limited |
| Motor Type | Explosion Proof |
| RPM High | 705 |
| Phase | 1 |
| Speed | 1 |
Offshore RigMan88 –
If you are looking for an effective explosion proof exhaust fan that works like a champ, then this is it. This explosion proof fan gets rid of the unnecessary smoke inside our steel factory in seconds. You never have to worry about using any other exhaust fan because this alone is enough to suck smoke out in a standard room. Very easy to screw to the wall and takes less maintenance. The fan also produced less sucking noise which is a big plus.
