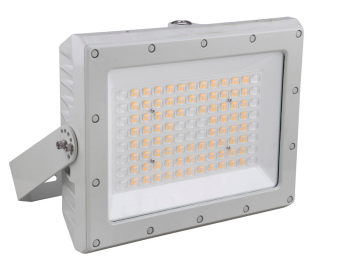

Explosion Proof Flood/Highbay Light-EXPF-180W-60K
The EXPF-180W-60K is a high-performance explosion proof LED flood and highbay light engineered for hazardous Class I, Division 2 locations. Built with a durable aluminum alloy housing and IP68 protection, it ensures safe and efficient lighting in oil & gas, petrochemical, and other industrial environments where safety and visibility are critical.
Delivering 20,700 lumens at 6000K color temperature, this UL-certified luminaire provides bright, uniform illumination with a wide 140°×120° beam angle. With a rated life of 70,000 hours, it minimizes maintenance downtime while ensuring long-term reliability. The fixture is designed to perform in harsh environments with operating temperatures from -22°F to 122°F.
Key Features:
✅ UL ANSI/UL 844, UL E503444 certified for Class I, Division 2, Groups A, B, C, D
✅ 6000K daylight color temperature with CRI >70
✅ IP68 rating for wet locations and outdoor use
✅ 20700 lumens output, 140 LPW efficacy
✅ Beam angle 140°×120° for wide coverage
✅ 70,000 hours rated lifespan with 7-year warranty
✅ Robust aluminum alloy housing with powder coat finish
✅ Clear glass lens with Bridgelux SMD3030 LEDs
✅ Operating temperature: -22°F to 122°F
📦 Package Options:
🔹 Flood/Highbay 180W – 6000K, 20,700lm
EXPF-180W-60K Technical Specifications:
| Feature | Details |
|---|---|
| Model | EXPF-180W-60K |
| Wattage | 180W |
| Voltage | 120–277V AC, 60Hz |
| Luminous Output | 20,700 lumens |
| Efficacy | 140 LPW |
| Color Temperature | 6000K |
| CRI | >70 |
| LED Type | Bridgelux SMD3030 |
| Beam Angle | 140° × 120° |
| Rated Life | 70,000 hours |
| Power Factor | >0.9 |
| THD | ≤20% |
| Housing | Aluminum alloy with powder coat finish |
| Lens | Clear glass |
| Dimensions | 15.16” (H) × 16” (W) × 5” (D) |
| Operating Temperature | -22°F to 122°F |
| IP Rating | IP68 (wet locations) |
| Warranty | 7 years |
| Certifications | UL ANSI/UL 844, UL E503444, Class I Div 2, Groups A-D |
Certifications & Compliance:
🔗 UL ANSI/UL 844 – Luminaires for Hazardous Locations
🔗 UL E503444 – Class I, Division 2, Groups A-D certified
🔗 IP68 – Dust-tight and waterproof
🔗 BUG Rating: B5-U3-G3
🔗 Download Datasheet
Applications of EXPF-180W-60K:
🔹 Oil & Gas Facilities
🔹 Petrochemical Plants
🔹 Warehouses & Factories
🔹 Ship Ports & Rail Yards
🔹 Power & Utility Sites
What’s in the Box?
📦 1x EXPF-180W-60K Light Fixture
📦 1x Mounting Hardware
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 1 week
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
Is the EXPF-180W-60K certified for Class I Division 1?
No, this model is certified for Class I Division 2, Groups A-D.
What is the expected lifespan?
The LED lifespan is rated for 70,000 hours with a 7-year warranty.
Can this be used outdoors?
Yes, it is IP68-rated for dust and water ingress protection.
What color temperature is available?
This model is offered in 6000K (daylight white).
