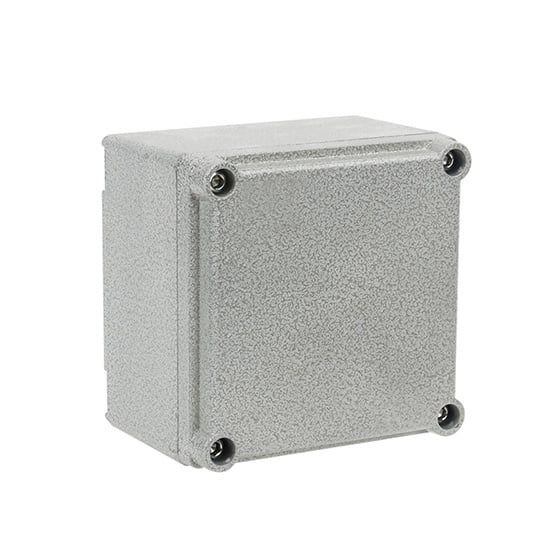

Explosion Proof Junction Box IP65 Exe 220/380V

The Explosion Proof Junction Box IP65 Exe 220/380V is a heavy-duty increased safety enclosure engineered for hazardous industrial environments including oil & gas facilities, chemical plants, offshore platforms, and marine applications. Designed with Exe protection and IP65 ingress resistance, this explosion-proof junction box ensures safe electrical connections while protecting against dust, water, and harsh environmental conditions.

Constructed from durable aluminum alloy with corrosion resistance rated WF1, this hazardous area junction box provides reliable long-term performance in demanding environments. The enclosure supports customizable terminal configurations, multiple cable entry points, and compatibility with explosion-proof cable glands and filling seals. Its robust design enables safe wiring through steel pipes or armored cables while maintaining certified explosion protection standards.

Key Features:

✅ Exe IIC T6Gb and Ex tD A21 IP65 T80℃ hazardous area certification
✅ Rated voltage 220/380V with 20A current capacity
✅ IP65 waterproof and dustproof protection
✅ Durable aluminum alloy housing with WF1 corrosion resistance
✅ Multiple customizable cable entry points
✅ Compatible with BDM explosion-proof cable glands
✅ Supports steel pipe or cable wiring installations
✅ Operating temperature range from -20°C to +40°C
✅ Custom terminal block configurations available
✅ Suitable for offshore, petroleum, and chemical applications

📦 Package Options:

🔹 Standard Junction Box: Aluminum alloy Exe enclosure with terminal blocks
🔹 Custom Terminal Configuration: Custom terminal quantity based on application requirements
🔹 Multiple Entry Configurations: Customizable entry directions, sizes, and quantities
🔹 Explosion-Proof Cable Gland Option: Compatible with BDM and BTL explosion-proof accessories

Explosion Proof Junction Box IP65 Exe 220/380V Technical Specifications:

Feature	Details
Model	ATO-BJX-01
Protection Level	IP65
Explosion Protection	Exe IIC T6Gb, Ex tD A21 IP65 T80℃
Material	Aluminum Alloy
Corrosion Resistance	WF1
Rated Voltage	220/380V
Rated Current	20A
Operating Temperature	-20°C to +40°C
Atmospheric Pressure	80KPa ~ 110KPa
Relative Humidity	≤95% (+25°C)
Inlet Thread	G1/2" ~ G2"
Cable Outer Diameter	8 ~ 80mm
Wiring Method	Steel Pipe or Cable
Customization	Supported
Standards	GB3836.1-2010, GB3836.2-2010, GB12476.1-2013, GB12476.5-2013
Product Size	135×135×97mm
Available Sizes	Multiple sizes available
Application Areas	Oil & Gas, Chemical, Offshore, Marine, Industrial

Certifications & Compliance:

🔗 Exe IIC T6Gb – Increased safety protection for hazardous gas environments
🔗 Ex tD A21 IP65 T80℃ – Dust ignition protection certification
🔗 IP65 Protection – Protection against water ingress and dust penetration
🔗 WF1 Corrosion Rating – Enhanced corrosion resistance for industrial applications
🔗 GB3836.1-2010 / GB3836.2-2010 – Explosion-proof equipment standards compliance
🔗 GB12476.1-2013 / GB12476.5-2013 – Dust hazardous area standards compliance

Applications of Explosion Proof Junction Box IP65 Exe 220/380V:

🔹 Oil & Gas Facilities
🔹 Chemical Plants
🔹 Offshore Platforms
🔹 Marine & Dock Installations
🔹 Manufacturing Facilities

What’s in the Box?

📦 1x Explosion Proof Junction Box
📦 1x Terminal Block Assembly
📦 1x Sealing Components Kit
📦 1x Grounding Hardware Set
📦 1x Installation Documentation
📦 1x Certification Documentation

Ordering & Shipping Details

📦 Lead Time: 2- 3 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 Explosion Proof Enclosures

FAQs:

What hazardous area certifications does this junction box have?
This junction box is certified with Exe IIC T6Gb and Ex tD A21 IP65 T80℃ ratings for hazardous gas and dust environments.

Can the cable entry points be customized?
Yes. The quantity, direction, and thread specifications of the cable entry points can be customized according to project requirements.

Is this junction box suitable for offshore environments?
Yes. Its IP65 protection rating and WF1 corrosion resistance make it suitable for offshore platforms, docks, and harsh industrial environments.

What cable sizes are supported?
The enclosure supports cable outer diameters from 8mm to 80mm with inlet thread options ranging from G1/2" to G2".
