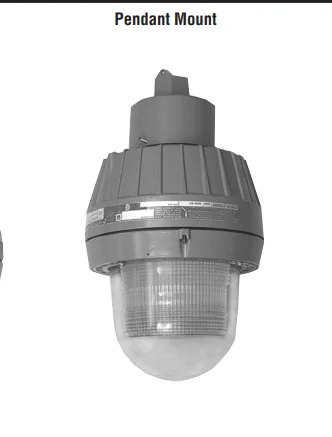

Explosion Proof Signal Lights Tomar 7024XLP-Pendant Mount
Features:
- UL Listed Safety: Designed for Class 1, Division 1, Groups C & D; Class 2, Division 1, Groups E, F & G; and Class 3 hazardous environments.
- Versatile LED Colors: Available in six vibrant colors (Amber, Blue, Green, Magenta, Red, and White) for flexible signaling options
- Advanced Thermal Management: Unique system with internal cooling fins draws heat away from LEDs, ensuring longer lamp life and consistent light output.
- Guaranteed Reliability: All electronics and LEDs are backed by a five-year warranty against manufacturing defects.
- Mode Selection: Internal switch allows easy selection among steady-burning, single, or double flash modes.
- Wide Voltage Range: Operates seamlessly over a broad DC (12-36 VDC) input voltage range.
- Robust Construction: NEMA 4X standards, marine-rated for saltwater environments, featuring die-cast high-strength copper-free aluminum alloy housing with a baked powder epoxy finish.
- Durable Components: Stainless steel hardware, O-ring sealed prestressed glass dome, and double pitch acme threads for smooth assembly and ease of maintenance.
Explosion Proof Signal Lights Tomar 7024XLP-Pendant Mount
Specifications:
Technical Data: | ||
Model | Description | Voltage |
7024XLP | Pendant Mount 3/4" hub | 12-36 VDC |
Lamp Type | LED | |
Flash Rate - | 80 Single Flash per minute 40 Double Flash per minute | |
Voltage and Amperage: | 170 mA @ 24 VDC Flashing; 500 mA Steady-burn | |
035 mA @ 120 VAC Flashing; 100 mA Steady-burn | ||
020 mA @ 240 VAC Flashing; 050 mA Steady-burn | ||
Operating Temperature: | -55 C to 85 C | |
Temperature Code: | T6 - All voltage and temperature ranges | |
In-rush Current | 1.5 Amps @ 24 VDC Flashing and Steady-burn 065 mA @ 120 VAC 125 mA @ 240 VAC | |
Size | 12” tall x 8.75” dia | |
Weight: | 14.4 lbs | |
Optional (EPG) | Guard |
