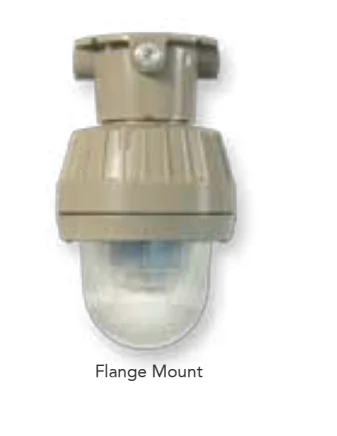

Explosion Proof Signal Lights Tomar 7124XLF-Flange Mount

Introducing the Explosion Proof Signal Lights Tomar 7124XLF-Flange Mount – a groundbreaking addition to our product lineup. UL Listed for Class 1, Division 1, Groups C & D; Class 2, Division 1, Groups E, F & G; and Class 3, these warning lights offer unparalleled safety. With six vibrant LED colors (Amber, Blue, Green, Magenta, Red, and White), they provide versatile signaling options.

Tomar's Super Explosion Proof LED lights stand out due to a unique thermal management system. Internal cooling fins efficiently draw heat away from the LEDs, ensuring an extended lamp life and consistent light output. Backed by a five-year guarantee, both electronics and LEDs are resilient against manufacturing defects.

Featuring an internal switch for easy mode selection (steady-burning, single or double flash), these lights operate seamlessly across a broad AC input voltage range. The AC version operates from 120-240 VAC.

Built to NEMA 4X standards and marine-rated for saltwater environments, the full-sized 7000 Family series exhibits top-notch construction. The housing, crafted from die-cast high-strength copper-free aluminum alloy, boasts a baked powder epoxy finish.

Features:

UL Listed Safety: Designed for Class 1, Division 1, Groups C & D; Class 2, Division 1, Groups E, F & G; and Class 3 hazardous environments.

Versatile LED Colors: Available in six vibrant colors (Amber, Blue, Green, Magenta, Red, and White) for flexible signaling options

Advanced Thermal Management: Unique system with internal cooling fins draws heat away from LEDs, ensuring longer lamp life and consistent light output.

Guaranteed Reliability: All electronics and LEDs are backed by a five-year warranty against manufacturing defects.

Mode Selection: Internal switch allows easy selection among steady-burning, single, or double flash modes.

Wide Voltage Range: Operates seamlessly over a broad AC (120-240 VAC) input voltage range.

Robust Construction: NEMA 4X standards, marine-rated for saltwater environments, featuring die-cast high-strength copper-free aluminum alloy housing with a baked powder epoxy finish.

Durable Components: Stainless steel hardware, O-ring sealed prestressed glass dome, and double pitch acme threads for smooth assembly and ease of maintenance.

Specifications:

Technical Data:

Model

Description

Voltage

7124XLF

Flange Mount 3/4" hub

120-240 VAC

Lamp Type

LED

Flash Rate -

80 Single Flash per minute
40 Double Flash per minute

Voltage and Amperage:

170 mA @ 24 VDC Flashing; 500 mA Steady-burn

035 mA @ 120 VAC Flashing; 100 mA Steady-burn

020 mA @ 240 VAC Flashing; 050 mA Steady-burn

Operating Temperature:

-55 C to 85 C

Temperature Code:

T6 - All voltage and temperature ranges

In-rush Current

1.5 Amps @ 24 VDC Flashing and Steady-burn
065 mA @ 120 VAC
125 mA @ 240 VAC

Size

12” tall x 8.75” dia

Weight:

14.4 lbs

Optional (EPG)

Guard
