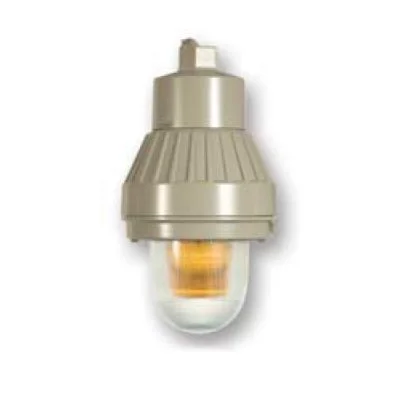

Explosion Proof Strobe Tomar 3200BEP – Pendant Mount Strobe, 120 VAC
Features:
- Class 1 Division 1
- Class 1 Division 2
- Explosion proof strobe pendant mount
- 3/4” pendant mount
- 120 VAC
- Xenon strobe lamp
- Available in amber, blue, clear, green, and red
- 2 year warranty on power supply
- 1 year warranty on lamp
- CSFM Listed
- NEMA 4X
Explosion Proof Strobe Tomar 3200BEP – Pendant Mount Strobe, 120 VAC
The 3200BEP family is designed, tested, and certified for use in hazardous locations and hostile environments classified by the NEC as Class I, Div. 1 & 2, Groups C & D, Class II, Div. 1 & 2, Groups E, F, G, and Class III, Div. 1 & 2. They also meet NEMA standards 3, 4, 4X, 7CD, and 9EFG and are marine rated for use in salt water environments. Design features include housing made of die cast high strength copper-free aluminum alloy with a baked powder epoxy finish, stainless steel hardware, o-ring sealed prestressed glass globe with double pitch acme threads for smooth assembly and ease of maintenance, and an optional guard which need not be removed for relamping.
Specifications:
| Item | Description |
| Lamp Type | 700–R1–COLOR ( please specify lens color ) |
| Flash Rate | 80 flashes per minute |
| Light Output | 200 candela eff. |
| Voltage and Amperage | 12–74VDC draws 1.25A @ 12VDC tapering to 0.2A @ 74VDC |
| 850 mA @ 18 VDC; 625 mA @ 24 VDC | |
| 170 mA @ 120 VAC; 075 mA @ 240 VAC | |
| Power Supply Output | 13 watts standard, 11 watts for model 3150 |
| 9 joules per flash standard, 8 joules per flash for model 3150 | |
| Operating Temperature | –40º C to +65º C |
| Temperature Code | T6 – All voltage and temperature ranges |
| Size and Weight | 11.1” tall x 7.44” dia. x 10.6 lbs |
3200BEP Models:
| Model | Description | Voltage |
| 3150BEP–PM | 3/4” pendant mount | 12 – 74VDC |
| 3200BEP–PM | 3/4” pendant mount | 120VAC |
| 3300BEP–PM | 3/4” pendant mount | 240VAC |
| 3150BEP–FM | 3/4” flange mount | 12 – 74VDC |
| 3200BEP–FM | 3/4” flange mount | 120VAC |
| 3300BEP–FM | 3/4” flange mount | 240VAC |
| 3150BEP–WM | 3/4” wall mount | 12 – 74VDC |
| 3200BEP–WM | 3/4” wall mount | 120VAC |
| 3300BEP–WM | 3/4” wall mount | 240VAC |
Architect and Engineer Specifications:
Visual signaling beacon shall be Tomar model number series 3150, 3200, 3300 or approved equal. The light source shall be a field replaceable single-flash xenon strobe lamp. The warning signal must have built-in RFI filters to protect against radio interference and spike voltages. Voltage ranges shall be 12-74VDC, 120VAC, and 240VAC. Beacon must be rated NEMA 4X, with housing made of die cast high-strength copper-free aluminum alloy with baked powder epoxy finish, stainless steel hardware, O-ring sealed pre-stressed globe with double pitch acme threads for smooth assembly and ease of maintenance. Must include a Lexan inner lens and tempered glass outer dome. The housing must be designed to accommodate a dome guard.
Explosion Proof Strobe Tomar 3200BEP – Pendant Mount Certifications:
Explosion Proof Strobe Tomar 3200BEP – Pendant Mount Other Resources:
- Explosion Proof Strobe Tomar 3200BEP Installation Instructions
- Explosion Proof Strobe Tomar 3200BEP Strobe Product Information
