Grinsafe LANCE™ GHRM Hazardous Location Lighting-IS

SKU: N/A

Grinsafe LANCE™ GHRM Hazardous Location Lighting-IS – appears to be a robust and reliable lighting solution suitable for use in environments where corrosion, water, dust, shock, and vibrations are potential challenges.

Hazardous Area

Class 1 Division 2

$52533

Price Depends on product option
Make a selection to update price

Shipping Time: 2-4 weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: ,

Grinsafe LANCE™ GHRM Hazardous Location Lighting

Introducing Grinsafe LANCE™ GHRM Hazardous Location Lighting-IS series an energy-efficient illumination solution meticulously crafted from corrosion-resistant, copper-free aluminum. Engineered to thrive in challenging environments, this cutting-edge light offers unparalleled resistance to corrosion, water, dust, as well as shock and vibrations. Its robust design ensures a long operational life and safe functionality, making it an ideal choice for deployment in harsh and hazardous settings. With a commitment to durability and energy efficiency, the Lance™ GHRM series stands as a reliable lighting solution tailored for demanding applications.

Features:

  • Effortless Installation: The light features a single barrel nut and hinge design, enabling one-hand operation for quick and easy installation. This streamlined process ensures convenience and efficiency during setup.
  • Lightweight & Compact: With a fixture weight of only 3.5kg, the design prioritizes low mounting heights and confined spaces. The lightweight and compact nature of the fixture make it versatile and adaptable to various installation scenarios.
  • High Efficacy: Delivering up to 170 lumens per watt and emitting 10,200 lumens, the Lance™ GHRM series light significantly reduces energy costs by up to 75% compared to conventional lamps. This high efficacy ensures optimal illumination with minimal energy consumption.
  • Retrofit Friendly: The light is retrofit-friendly, featuring universal mounting accessories that minimize stock keeping units (SKUs) and maximize flexibility. This adaptability simplifies the upgrade process for existing lighting systems.
  • Built To Last: Constructed with a copper-free aluminum housing and an impact-resistant lens sealed from the outside environment, the light is designed to withstand harsh conditions. This build provides ingress protection against water and dust, ensuring long-lasting performance and durability in challenging environments. The emphasis on durability makes the Lance™ GHRM series an ideal lighting solution for demanding applications.
  • Surge Protector (SP10U & SP10N) – Comes with Surge protector 10KV 100-277V for Standard U model & Surge protector 10KV 347/480V for standard N model as preinstalled.
  • Flat Frosted Glass lens (FG) – Comes with either clear or Frosted Glass lens as preinstalled.
  • Certifications for hazardous environments:  Class I Div 2 (Groups A, B, C, D), Class II Div 1 (Groups E, F, G), Class II Div 2 (Groups F, G), Class III, UL8750, UL1598A , UL1598.

Warranty

  • 5-year limited system warranty
  • Lumen Maintenance:150,000hours@L70

Grinsafe LANCE™ GHRM Hazardous Location Lighting-IS

Specification:

Technical Data
Electric
Rated Power40W / 60W
Input VoltageAC120-277, 347-480V
Input Frequency50/60Hz
Power Factor> 0.95
DC output Ripple & Noise≥ 90%
Driver Efficiency< 200mVP-P
Optical
Lumen Output6,500lm / 10,200lm
Luminous Efficacy (Lumens per Watt)160 ~ 170Lm/W
Beam AngleT1 / T3 / T5
Correlated Color Temperature (CCT)Amber 2700K 3000K 4000K 5000K
CRIRa>70
Environmental
Ambient Operating Temperature-40°C~+65°C
Ambient Operating Humidity10%~90% RH
Atmospheric pressure86~106KPa
Techanical
Lens MaterialGlass / PC / Drop Lens
Mounting OptionsPendant / Ceiling / Wall mount / Stanchion / U-Bracket
Cable Entry3/4” NPT, 1” NPT, 1-1/4” NPT, 1-1/2” NPT
Net Weight3.5kg

Grinsafe LANCE™ GHRM Hazardous Location Lighting-IS

Certificate:

Grinsafe LANCE™ GHRM Hazardous Location Lighting

Resources:

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

Grinsafe Ceiling Mount 3/4'' NPT

SKU: CJB

Grinsafe Ceiling Mount 3/4'' NPT compatible to use with Hazardous location LED JET™ GHRS Lighting & LANCE™ GHRM Lighting.

Brand: GRIN Industrial Co. Ltd

In Stock 2-4 Weeks

$10284

$8570

$8570

$8570

$8570

Grinsafe Trunnion Mount

SKU: TB4

Grinsafe Trunnion Mount is compatible to use with Hazardous location LED JET™ GHRS Lighting & LANCE™ GHRM Lighting.

Brand: GRIN Industrial Co. Ltd

In Stock 2-4 Weeks

$5141

Grinsafe Wall - 25° 3/4" NPT

SKU: W25

Grinsafe Wall - 25° 3/4" NPT is compatible to use with Hazardous location LED JET™ GHRS Lighting & LANCE™ GHRM Lighting.

Brand: GRIN Industrial Co. Ltd

In Stock 2-4 Weeks

$11999

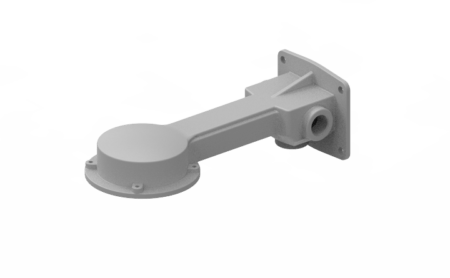

Grinsafe Wall - 90° 3/4" NPT

SKU: W90

Grinsafe Wall - 90° 3/4" NPT is compatible to use with Hazardous location LED JET™ GHRS Lighting & LANCE™ GHRM Lighting.

Brand: GRIN Industrial Co. Ltd

In Stock 2-4 Weeks

$11999
